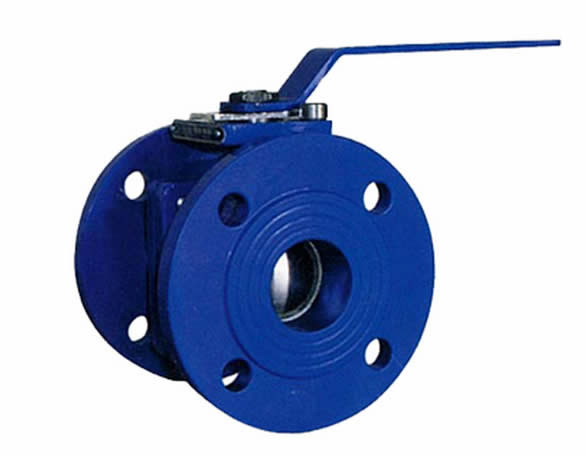

CAST IRON FLANGED BALL VALVE WITH HAND LEVER
Face to face: ANSI B16.10, BS4460, DIN3202
Flange: PN10/16, 150LB
Features:
BLOW -OUT PROOF STAINLESS STEEL STEM
FULL PORT 2" -12" (DN50 - DN300)
SAFETY WORKING PRESSURE: 200PSI, 1.6MPa
Materials
1 Body: Cast lron, Ductile Iron
2 Bonnet: Cast lron, Ductile Iron
3 Ball: SS304/CF8
4 Seat: PTFE
5 Gasket: PTFE
6 Stem Stainless Steel
7 Packing: Graphite/PTEF
8 Gland Flange: Cast lron, Ductile Iron
9 Stop collar: Carbon steel
10 Lever: Steel
Tianjin Tanggu tianshun valve Industries Limited is located in China's largest production base of the valve; High - Tech Development Zone, Tanggu District, Tianjin Marine, was professional design and manufacture all kinds of butterfly valves Factory production ( ISO9002 certification ), the annual production capacity of 150, 000 sets. The company's wafer butterfly valve, butterfly valve, Flanged butterfly valves are exported to Europe, Africa, Middle East and Southeast Asian countries and regions, special don't be eco - friendly nylon coating, the company developed and produced series of PTFE coating, anti-corrosion butterfly valve, gathered at home and abroad advanced - pin connection technology, spray technology, with the sealing property is reliable (No leaks ), corrosion resistance and high temperature resistant, non-toxic, harmless, operating torque features of small, safe and reliable running, was praised by users at home and abroad.
