Flanged Bi-Direction Triple Eccentric Butterfly Valve
| Price: |
US $ 5-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |

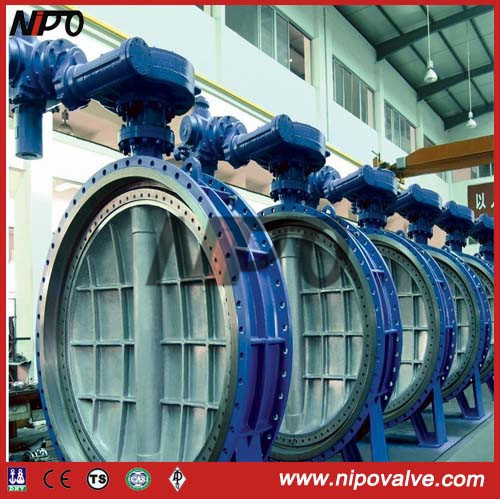

Flanged Bi-Direction Triple Eccentric Butterfly Valve
Product Description1) Design and manufacture standards:
A) Wafer and lug: API 609, DIN3354
B) Flange and weld: BS5155 / EN598
2) Inspection and test standards:
API 598, DIN3230, BS5146
3) F-to-F:
A) Wafer and lug: API609, DIN3202 K2
B) Flange: ISO 5752
4) End flange dimension:
ASME B16.5 (for NPS<24"), ASME B16.47 series B,
API605, ASME B16.47 series A, MSS SP-44 (for NPS>24"), or BSEN 1092
5) Top flange: ISO5211
6) Connecting: Wafer, Lug, Flange, Weld
7) Size: 1-1/2" - 40", DN40 - DN1000
8) Pressure: Class125 - Class300, PN6 - PN40
9) Temperature: -20° C - 200° C
10) Body: Cast iron / ductile iron / WCB / 304 / 316
11) Disc: Ductile iron / WCB / 304 / 316 / CF8 / CF8M
12) Stem: 13%Cr / 316 / 304 / SS17-4pH
13) Seat: NBR / EPDM / PTFE / R-PTFE / PPL/Stainless Steel
14) Operation: Lever, worm gear, pneumatic, electric, hydraulic or pneumatic-hydraulic actuator
15) Property: Longer service life and zero leakage
16) Widely used in many industries such as:
Water treatment, foodstuff, beverage, pharmaceutics, desalination, steelmaking, chemical machinery industries, pulp and paper manufacturing processing

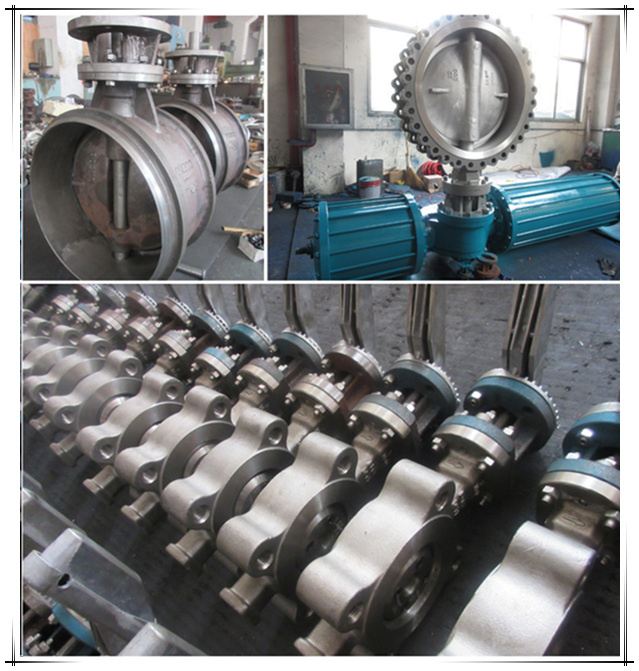

PRODUCTS

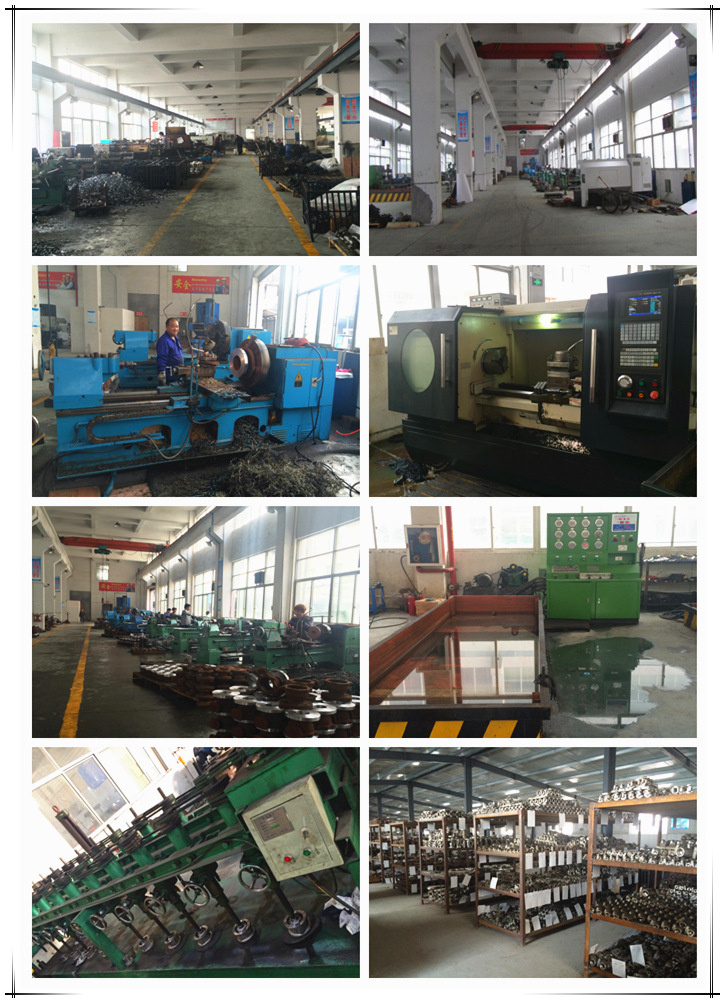

WORKSHOP

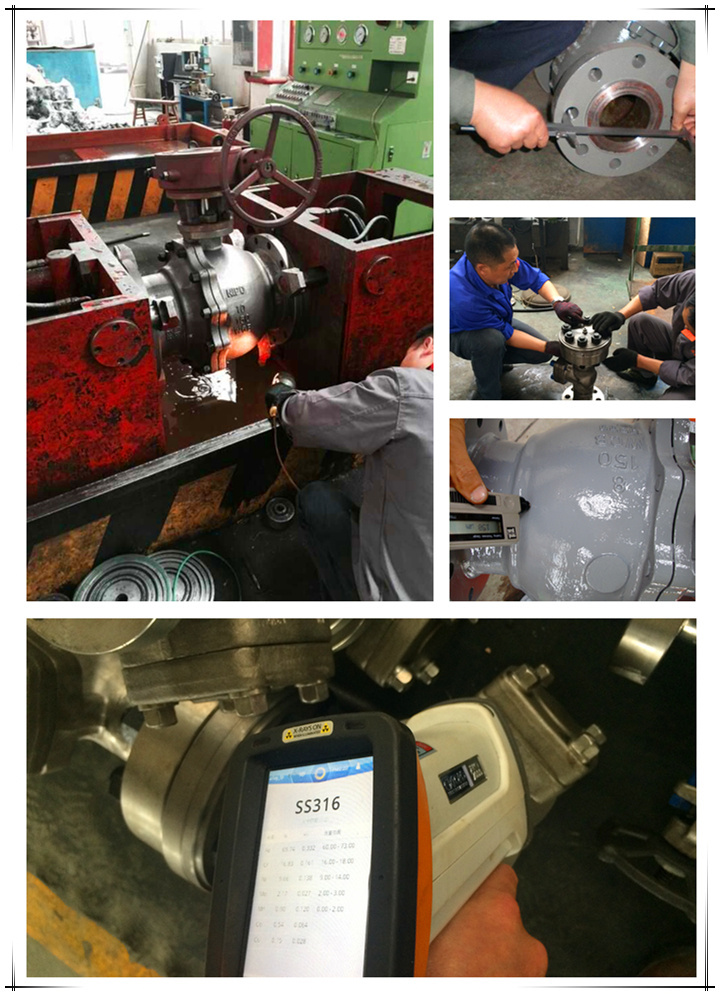

INSPECTION
We welcome all the world customers to contact us for more cooperation.
With our years of technical knowledge and experience,we assure you,
Naibang will be one of your best parters in China.| STANDARD MATERIAL LIST |
| No. | Parts Name | Material |
| 1 | Bottom Cover | A182 F6, F304, F304L, F316, F316L |
| 2 | Stud | A193 B7, B7M, B8, B8M |
| 3 | Gasket | Graphite |
| 4 | Body | A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M, Duplex |
| 5 | Stem | A182 F6, F304, F304L, F316, F316L |
| 6 | Board | A182 F6, F304, F304L, F316, F316L |
| 7 | Disc | A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M, Duplex |
| 8 | Pin | A182 F6, F304, F304L, F316, F316L |
| 9 | Stud | A193 B7, B7M, B8, B8M |
| 10 | Seal Ring | SS304+Graphite |
| 11 | Bushing | SS304+PTFE |
| 12 | Packing | Graphite |
| 13 | Yoke Nut | A194 2H, 2HM, 8, 8M |
| 14 | Yoke Stud | A193 B7, B7M, B8, B8M |
| 15 | Yoke | A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M, Duplex |
| Prod Model: |
Ds343H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2" to 40" |
| Class: |
150lb to 600lb |
| Certificates: |
API 6D, CE, ISO9001 |
| Application Fields: |
Metallurgy,Light Industrial,Electric Power,Petroch |
| Delivery Detail: |
20~45 Days According to The Specific Quantities |
| Connection Form: |
Flange |
| Structure: |
Three-Eccentric Sealing |
| Seal Form: |
Supercharging Pressured Sealed |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Material Of Seal Surface: |
Metal Hard Sealed |
| Application: |
Water Industrial Usage |
