Application: Water supply and drainage system of cities, electricity, oil system etc.
Usage: Ajust and cut off fluid flow

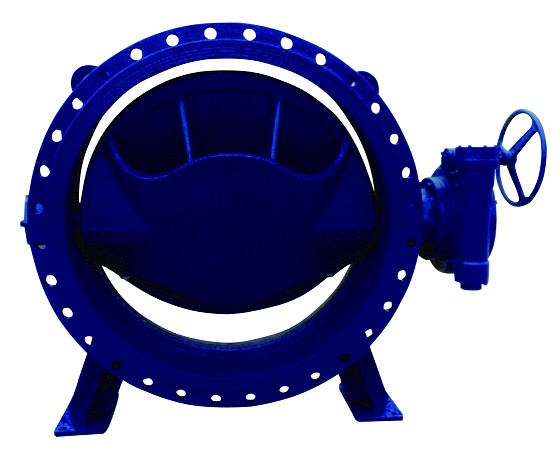

Design principle: In the process of design, the stem deviates from center line of sealing surface, this is the first eccentric structure; stem deviates from center line of pipeline, then it forms the second eccentric sturcture. The double eccentri structure make the seal more tight, reduce friction during opening and closing. Also, with smaller rotation angle, butterfly plate disaffiliates from seat, then it can prolong the valves' service life.
General features
Low friction between seal ring and body
Maintenance-free, self-seal shaft seal O-rings
High strength and corrosion resistance of ductile iron
Streamlined butterfly plate with low flow resistance
Maintainance free and self lubricating composite bearings
Connection between plate and bearing of three taper pin hole
Flexible installation: vertical type, horizontal type
Smooth and health protective coating
Materials of main parts
Part name | Materials |
Body, plate, gear | Ductile iron, cast Steel |
Valve shaft | Stainless steel |
Seat, shaft sleeve | Stainless steel, compositePTFE |
Seal ring | NBR,EPDM |
Main technical parameters
PN | 1.0MPa | 1.6MPa |
Pressure test | Seal test | 1.1MPa | 1.76MPa |
Strength test | 1.5MPa | 2.4MPa |
Applicable temp |
| -15~80ºC |
|
Applicable medium | Tap water, hot water, sewage, oil, etc. |
Driving mode | Gear, electric, pneumatic |
General dimension |
DN(mm) | L | H1 | H0 | PN1.0MPa | PN1.6MPa |
D | D1 | D2 | n-Φd | D | D1 | D2 | n-Φd |
150 | 140 | 137 | 137 | 285 | 240 | 211 | 8-22 | 285 | 240 | 211 | 8-22 |
200 | 152 | 164 | 1641 | 340 | 295 | 266 | 8-22 | 340 | 295 | 266 | 12-22 |
250 | 165 | 206 | 206 | 395 | 350 | 319 | 12-22 | 405 | 355 | 319 | 12-26 |
300 | 178 | 230 | 230 | 445 | 400 | 370 | 12-22 | 460 | 410 | 370 | 12-26 |
350 | 190 | 248 | 248 | 505 | 460 | 429 | 16-22 | 520 | 470 | 429 | 16-26 |
400 | 216 | 289 | 289 | 565 | 515 | 480 | 16-26 | 580 | 525 | 480 | 16-30 |
450 | 222 | 320 | 320 | 615 | 565 | 530 | 20-26 | 640 | 585 | 548 | 20-30 |
500 | 229 | 343 | 343 | 670 | 620 | 582 | 20-26 | 715 | 650 | 609 | 20-33 |
600 | 267 | 413 | 413 | 780 | 725 | 682 | 20-30 | 840 | 770 | 720 | 20-36 |
700 | 292 | 478 | 478 | 895 | 840 | 794 | 20-30 | 910 | 840 | 794 | 24-36 |
800 | 318 | 525 | 252 | 1015 | 950 | 901 | 24-33 | 1025 | 950 | 901 | 24-39 |
900 | 330 | 585 | 585 | 1115 | 1050 | 1001 | 28-33 | 1125 | 1050 | 1001 | 28-39 |
1000 | 410 | 640 | 640 | 1230 | 1160 | 1112 | 28-36 | 1255 | 1170 | 1112 | 28-42 |
1200 | 470 | 755 | 755 | 1455 | 1380 | 1328 | 32-39 | 1485 | 1390 | 1328 | 32-48 |
1400 | 530 | 910 | 910 | 1675 | 1590 | 1530 | 36-42 | 1685 | 1590 | 1530 | 36-48 |
1600 | 600 | 1030 | 1030 | 1915 | 1820 | 1750 | 40-48 | 1930 | 1820 | 1750 | 40-56 |
1800 | 670 | 1140 | 1140 | 2115 | 2020 | 1950 | 44-48 |
|
|
|
|
2000 | 760 | 1250 | 1250 | 2325 | 2230 | 2150 | 48-48 |
|
|
|
|
2200 | 1000 | 1590 | 1590 | 2550 | 2440 | 2335 | 52-56 |
|
|
|
|
2400 | 1100 | 1695 | 1695 | 2760 | 2650 | 2545 | 56-56 |
|
|
|
|
2600 | 1200 | 1770 | 1770 | 2960 | 2850 | 2750 | 60-56 |
|
|
|
|
