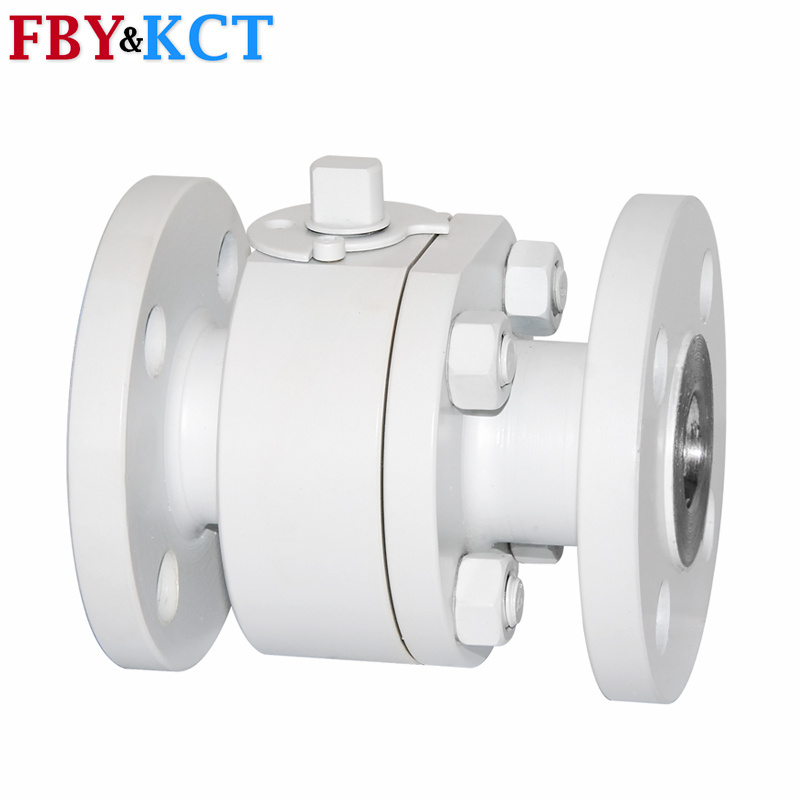

Flanged End Floating Forged Ball Valve

Flanged End Floating Forged Ball Valve
Price: US $ 50-1000/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T
Product Explanation:


Floating Forged Ball Valve

Size range: 1/2"-4"

Bore type: Full Bore and Reduced Bore

Working pressure: Class 150~Class 2500

Working Temp: -46° C~200° C

Material: A105, F304, F316 etc

1. Anti-fire safe design

When the trunnion ball valve be used normally, its sealed by seat and ball surface, seat retainer sealed by O-ring and body, this is soft sealed and reliable sealing. When the seat and O-ring are burnt, the seat retainer and body will be sealed by expanded graphite. Thus act anti-fire safe purpose.

2. Anti-static device

In order to prevent friction among ball, stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident, in this ball valve, static-conduction spring is set between the stem and the ball, the stem and the body. Thus static electricity is conducted to ground and system safety is secured.

3. Free leakage of body Sealed construction

The connective position of valve body and bonnet is double sealed by gasket and O-ring, on this base, such factors as fire, high temperature, shock and uneven opening or closing of the torque all can??t induce external leakage.

4. Low torque in operation

The self-lubricated bearings are installed at the friction of stem, resulting in wear resistance, fiexibility of operation and low torque.

5. Automatic body cavity relief

When the body pressure going up un-normally as the unstable factor, the trunnion ball valve downstream seat will be pushed by un-normally pressure, and the release the unnormal pressure automatically, it doesn't damage to the sealing of upstream seat. The un-normally pressure which in the floating ball valve body will release the pressure into the upstream pipe directly, it doesn't damage to the sealing of the downstream seat.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage
Function: Forged Ball Valve
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.

In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.

KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.

According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.

Welcome Friends to contact us from all over the world to establish business with us.
