Flanged End Forged Globe Valve

Flanged End Forged Globe Valve
Price: US $ 11.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Flanged end globe valve 150lb 600lb steel

Standard material specifications

No. Part name CS to ASTM as to ASTM ss to ASTM

Type a105 type f22 type f304(l) type f316(l)
1 body a105 a182 f22 a182 f304(l) a182 f316(l)
2 gasket corrugated ss + graphite ss + PTFE
3 bonnet bolt a193 b7 a193 b16 a193 b8 a193 b8m
4 pin a276 420 a276 304
5 gland a276 410 a182 f304(l) a182 f316(l)
6 gland eyebolt a193 b7 a193 b16 a193 b8 a193 b8m
7 gland nut a194 2h a194 4 a194 8 a194 8m
8 yoke nut a276 410
9 h. W. Nut a194 2h a194 4 a194 8 a194 8m
10 nameplate ss
11 handwheel a197
12 gland flange a216 wcb a351 CF8
13 stem packing flexible graphite PTFE
14 bonnet a105 a276 304 a182 f304(l) a182 f316(l)
15 stem a182 f6 a182 f304 a182 f304(l) a182 f316(l)
16 disc a276 420 a276 304 a276 304(l) a273 316(l)

Suitable medium w. O. G. etc w. O. G. etc hno3, CH3ooh etc
Suitable temperature -29 425 -29 550 -29 180
NPS1/23/411-1/41-1/22
L(RF)L1(BW)150108117127140165203
300152178203216229267
600165190216229241292
H(OPEN)150,300166171207240258330
600171207240258330380
W100100125160160180
Weights150RF4.56.99.813.519.528.0
BW2.33.67.88.212.015.0
300RF4.87.711.016.821.232.6
BW2.84.08.59.212.616.8
600RF5.67.812.517.023.538.8
BW3.44.79.210.513.318.9


Prod Model: J41H, J41Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design: BS1868, API 602
Flange: ANSI B16.5
Test & Inspect: API 598
Structure: Through Way Globe Valve
Sealing Form: Gland Packings Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Application: Oxygen Globe Valve
Standard: ANSI

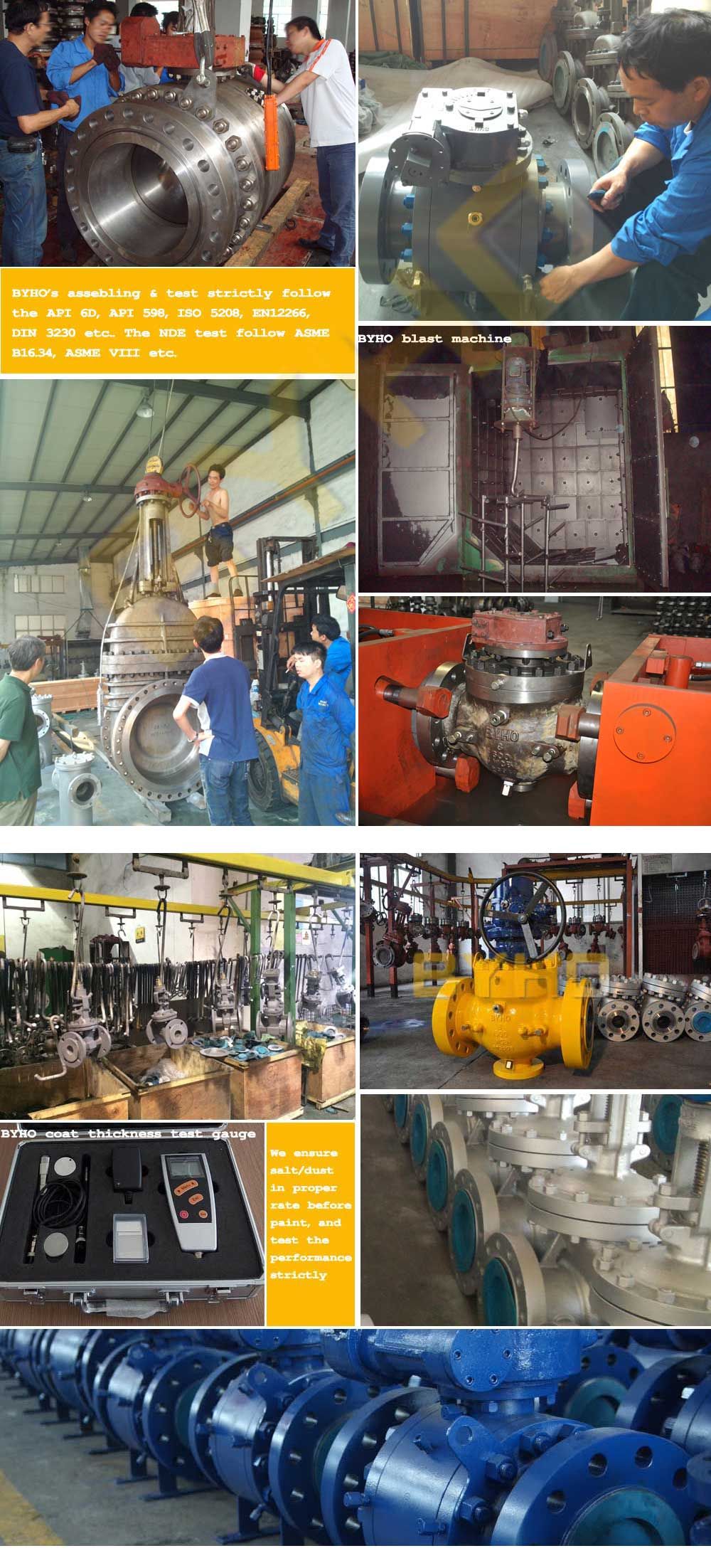

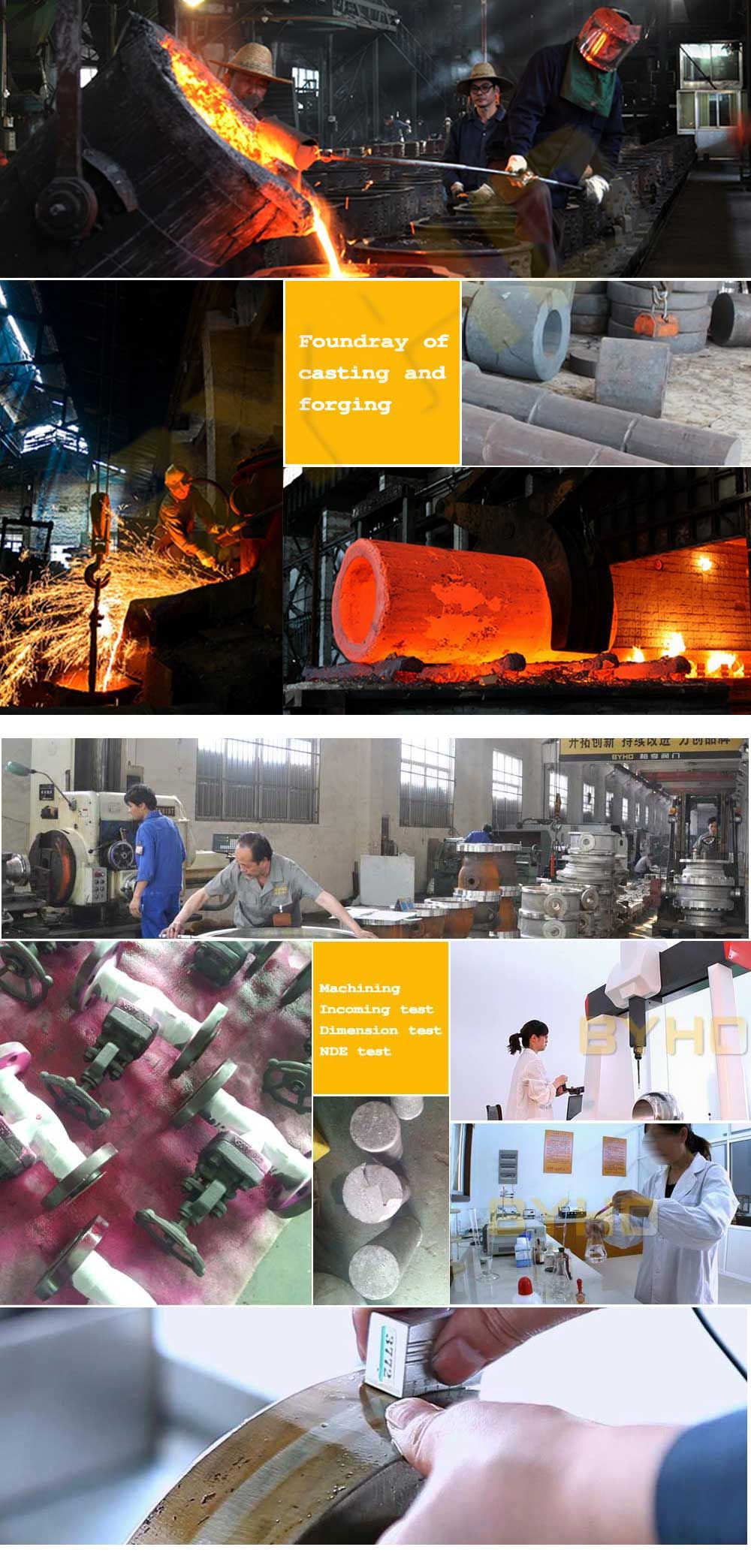

Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
