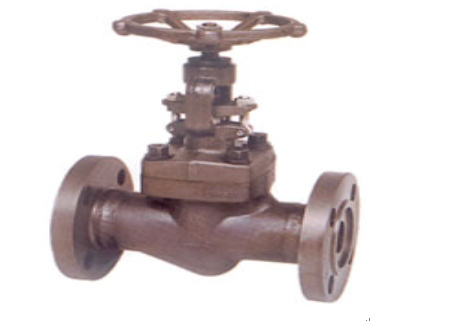

Flanged end globe valve 150Lb~600Lb
NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Gasket Corrugated SS+graphite SS+PTFE
3 Bonnet Bolt A193 B7 A193 B16 A193 B8 A193 B8M
4 Pin A276 420 A276 304
5 Gland A276 410 A182 F304(L) A182 F316(L)
6 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
7 Gland Nut A194 2H A194 4 A194 8 A194 8M
8 Yoke Nut A276 410
9 H.W.Nut A194 2H A194 4 A194 8 A194 8M
10 Nameplate SS
11 Handwheel A197
12 Gland Flange A216 WCB A351 CF8
13 Stem Packing Flexible Graphite PTFE
14 Bonnet A105 A276 304 A182 F304(L) A182 F316(L)
15 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
16 Disc A276 420 A276 304 A276 304(L) A276 316(L)
Suitable Medium W.O.G.etc W.O.G.etc HNO3,CH3OOH etc
Suitable Temperature -29ºC~425ºC -29ºC~550ºC -29ºC~180ºC
Note:Other materials are available upon request.
CS=Carbon Steel;AS=Alloy Steel;SS=Stainless Steel;
