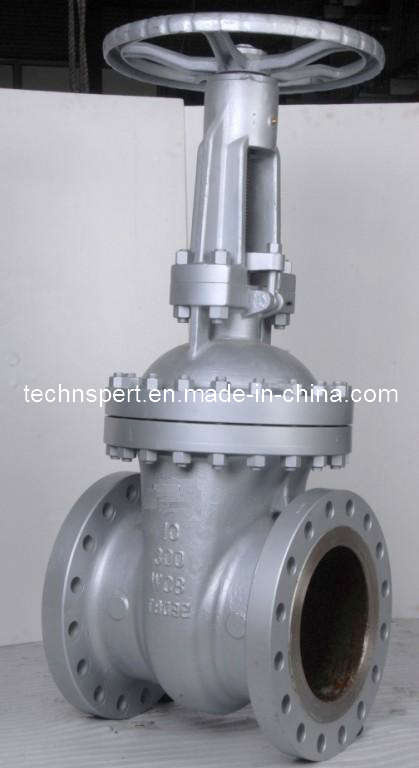

Flanged gate valve Applicable Standards:
1. Steel Gate Valve, API 600/API 6D
2. Steel Gate Valve, ISO 10434/ISO 14313
3. Steel Valves, ASME B16.34
4. Face to Face, ASME B16.10
5. End Flanges, ASME B16.5
6. Buttwelding Ends, ASME B16.25
7. Inspection and Test, API 598/API6D
Design Description:
1. Full Port Design
2. OS&Y, Outside Screw and Yoke
3. Bolted Bonnet
4. Flexible wedge, fully guided
5. Choice of Solid or split wedge
6. Renewable seat rings
7. Forged T-Head Stem
8. Rising Stem and Non rising handwheel
9. Flanged or buttwelding ends
10. Available with BG Operator
|
Size |
in |
2 |
2 ½ |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
|
mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
L/L1 |
in |
14.5 |
16.5 |
15 |
18 |
24 |
29 |
33 |
38 |
40.5 |
44.5 |
48 |
52 |
61 |
|
(RF/BW) |
mm |
368 |
419 |
381 |
457 |
610 |
737 |
838 |
965 |
1029 |
1130 |
1219 |
1321 |
1549 |
|
L2 |
in |
14.62 |
16.62 |
15.12 |
18.12 |
24.12 |
29.12 |
33.12 |
38.12 |
40.88 |
44.88 |
48.5 |
52.5 |
61.75 |
|
(RTJ) |
mm |
371 |
422 |
384 |
460 |
613 |
740 |
841 |
968 |
1038 |
1140 |
1232 |
1334 |
1568 |
|
H |
in |
19.62 |
21.5 |
22.5 |
26.62 |
35.5 |
43.5 |
53 |
60 |
74.88 |
81 |
87 |
101 |
104 |
|
(Open) |
mm |
498 |
547 |
573 |
678 |
900 |
1103 |
1345 |
1525 |
1900 |
2055 |
2215 |
2565 |
2640 |
|
W |
in |
10 |
10 |
12 |
18 |
20 |
24 |
26 |
29 |
32 |
32 |
38 |
38 |
40 |
|
|
mm |
250 |
250 |
300 |
450 |
500 |
600 |
640 |
720 |
800 |
800 |
950 |
950 |
1000 |
|
Weight |
RF/RTJ |
74 |
131 |
101 |
172 |
335 |
640 |
1100 |
1600 |
2250 |
2800 |
3060 |
3835 |
4900 |
|
(kg) |
BW |
54 |
105 |
78 |
135 |
260 |
515 |
920 |
1380 |
2010 |
2565 |
2485 |
3250 |
4065 |
