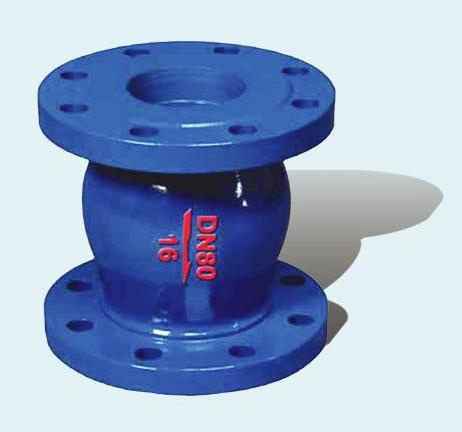

SILENT CHECK VALVE
Description:
1: Quiet Operation
2: Vertical or Horizontal Installation
3: Face to face nonstandard
4: Flange drilling B16.5/B16.10
5: Conical spring design allow plug greater travel, resulting is better flow property than conventional valve design
6: Valve could be accept an optional soft seat(normally BUNA N)for boubble tight shut-off operations.
Material:
Body: ASTM A 126/Class B/Carbon Steel/SS316
Plug: Bronze B62/CF8M
Spring: Stainless steel
Seat: Bronze B62/ CF8M
Bushing: Bronze B62/ CF8M
Screw: Stainless Steel
Size: DN50-300MM, 2-12"
Rate: PN1.0-2.0MPa, ANSI Class125/250
Type: Cast Iron / Carbon Steel / CF8M.
Transportation: Sea, Air.
Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform| Size | 2"-12" |
| Material | WCB, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, 4A, 5A A105, LF2, F11, F22, F304, F316, F304L, F316L, F51, F53 |
| Pressure | Class 150 - Class 2500 |
| Face to face standards | ASME B16.10, API 6D, DIN 3202 |
| Connections standards | ASME B16.5, ASME B16.25, ASME B16.47, DIN 2501, BS 4504 |
| Design and standards | API 6D, BS 5351, API 608, ASME B16.34 |
| Technology | CNAS approved laboratotry and Professional technical engineers and R&D team; |
| Certificate | CNAS, CE, DVGW, AGA, CSA, ISO9001, ISO14001, etc |
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.
Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.
Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.
Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
