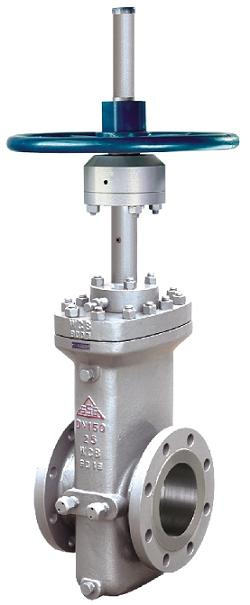

Pneumatic parallel dual-gate valve adopts linear travel actuator, and transmits piston thrust to valve stem to drive the parallel gate move upwards and downwards, to realize the valve opening, closing and adjustment.
[Structural features]
1. The pneumatic flat gate valve is divided into two series: TY-Zr6F3wb type without diversion hole and TY-Zr6F3 type with diversion hole.
2. Pneumatic flat gate valve is characterized by simple structure, full bore, no shrinkage cavity, small fluid resistance, small opening and closing torque, unrestricted medium flowing direction and good sealing performance.
3. Pneumatic flat gate valve has short opening and closing time and can easily achieve the pipeline control automation, which is widely used in pipeline engineering of petroleum, chemical, storage and transportation, long-distance transportation, hydro energy, power and other industries, to cut off fluid or control flow.
Description:pneumatic flat gate valve without diversion hole
Nominal diameter:2"~40"
Nominal pressure:Class 150~Class 1500
Operating temperature:-46~200ºC
Description:pneumatic flat gate valve with diversion hole
Nominal diameter:2"~40"
Nominal pressure:Class 150~Class 1500
Operating temperature:-46~350ºC
