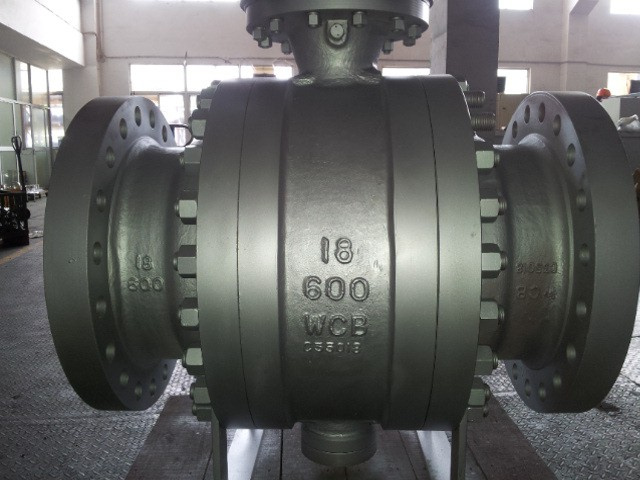

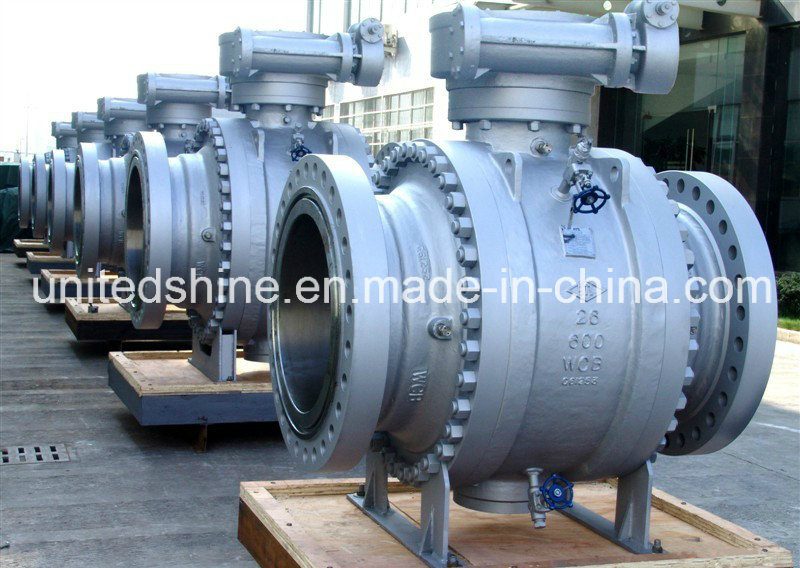

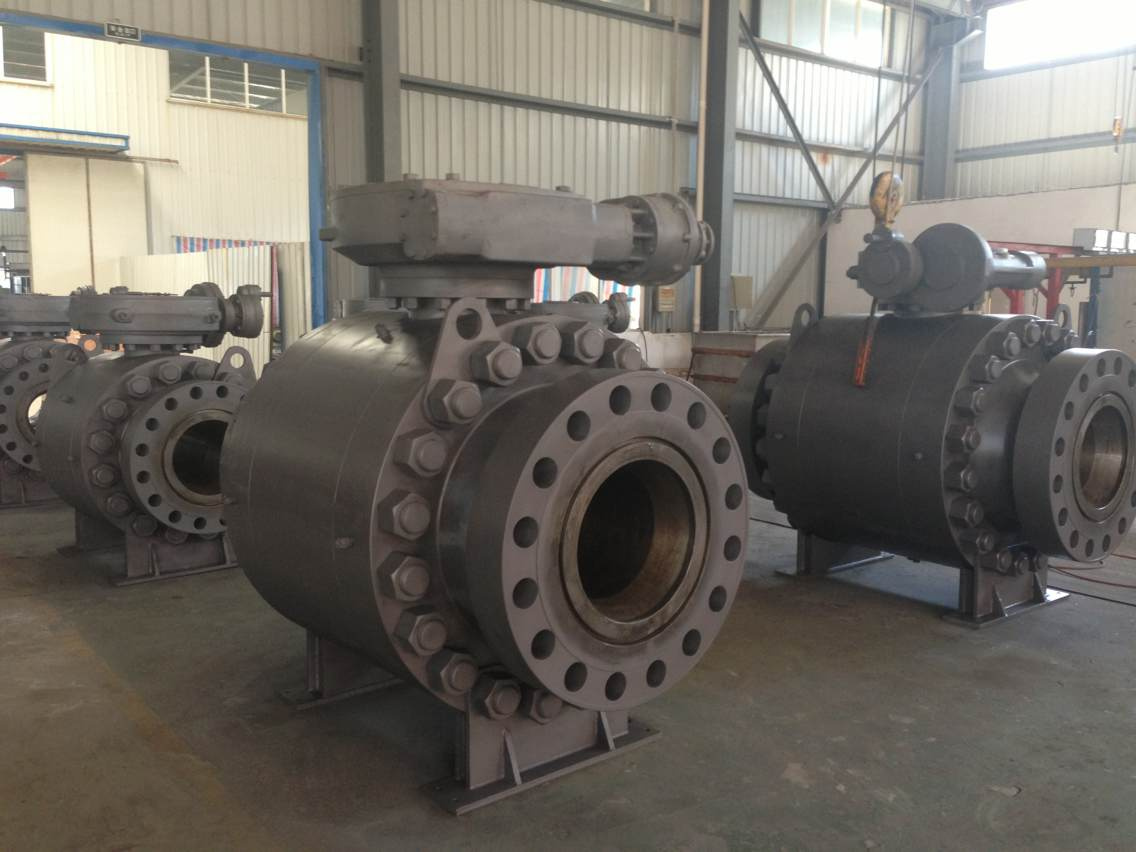

Float/ Trunnion Stainless Steel Motorized Control Ball Valve for Gas
Product Description
1. Features
Applicable Medium: Water, Gas, Oil, and Corrosive Medium such as Acids, Alkalis etc.
Applicable Temperature:-196~350°C
Driving Methods: Manual, Pneumatic, Electric and Hydraulic
Size: 1/2"~ 48" , DN 15-1200mm
Pressure : ANSI Class 150 - Class 2500LB
Material :CS,SS,Alloy
- Side Entry Design
- Bolted Body
- Full Bore Or Reduced Bore
- Flanged End
- Double Block And Bleed
- Locking Device.
- Single Piston Effect , Double Piston Effect
- Automatic Internal Relief of Body Pressure
- Emergency Sealant Injection System
- Fire Safe Design. Antistatic Device
- Anti-Blowout Stem Design
- Body Vent Device
- Stem Extension For Underground Service.
2. Major Parts and Materials
Part No. | Description | Materials |
1 | Body | A105/A350-LF2/A182-F304(L), F316(L), F321, F51 |
2 | Spring | 17-7 PH/Inconel X750 |
3 | Seat | PTFE/RPTFE/Nylon/PEEK/PPL |
4 | Ball | A105+ENP/A350-LF2+ENP/ A182-F304(L), SS316(L), F51 |
5 | Key | A182-F6A, F304, F316(L) |
6 | Packing | PTFE/Graphite |
7 | Stem | A182-F6A, F304, F316(L) |
8 | Gland | A216-WCB/A351-CF8 |
9 | Bracket | A216-WCB |
10 | Cover | A105+ENP/A182-304, F316(L) |
11 | O-Ring | VITON/FKM |
12 | Sliding Bearing | PTFE + Stainless Steel |
13 | Stud | A193-B7(M), B8(M)/A320-L7 |
14 | Nut | A194-2H(M), 8(M), 4 |
15 | Bonnet | A105/A350-LF2/A182-F304(L), F316(L), F321, F51 |
16 | Seat Ring | A105+ENP/A182-F6A, F304, F316(L) |
17 | Gasket | PTFE/Graphite+ Stainless Steel |
18 | Trunnion Cover | A105+ENP/A182-F304, F316(L) |
19 | Trunnion | A105+ENP/A182-F6A, F304, F316(L) |
20 | Trunnion Cover Screw | A193-B7, B8(M)/A320-L7 |
3.Valve Standards
Design Standard | API 6D/ANSI B16.34/ISO 17292 |
Face to Face | ANSI B16.10 |
Flange End | ANSI B16.5 / B16.47 |
BW End | ANSI B16.25 |
Test and Inspection | API 6D / API 598 |
