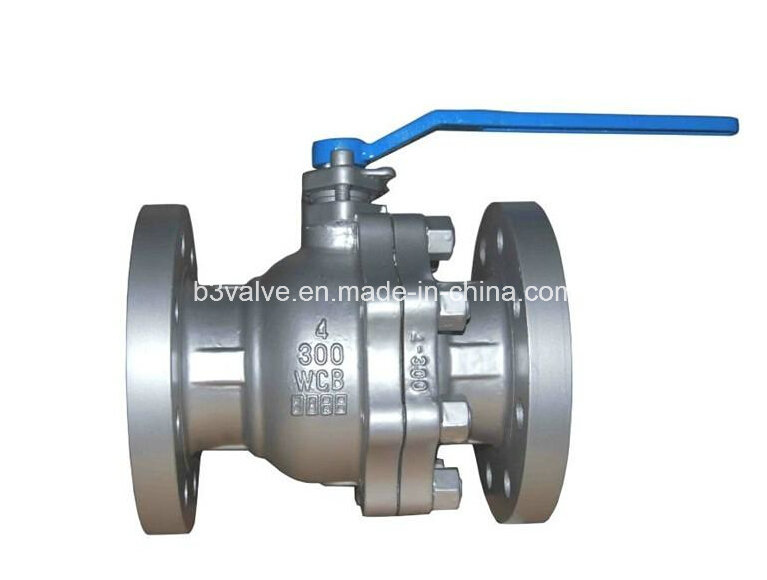

Floating Ball Valve

Floating Ball Valve
Price: US $ 50-500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union

B3 floating ball valves mainly apply to the industries of nature gas, oil products, chemical industry, metallurgy, city construction, medicine, environment, foods, etc. as on /off control units. Its body is made of casting or forging; the ball is floating, the ball moves (floats) downstream to maintain close contact with downstream seat to form a reliable seal under the medium pressure when closes. The seat special design has the wearing complementary structure to ensure safe reliable sealing and long stable operation of this series of ball valve. It has the merits of sealing reliability, long life cycle usage and easy operations.


Applicable Standard

Design Standard:       API 6D, ASME B16.34, API 608, BS 5351, MSS SP-72
Face to Face:               API 6D, ASME B16.10, EN 558
End Connection:         ASME B16.5, ASME B16.25
Inspection and Test:  API 6D, API 598


Products Range

Size:                  1/2" ~ 12" (DN15 ~ DN300)
Rating:                ANSI 150lb, 300lb, 600lb

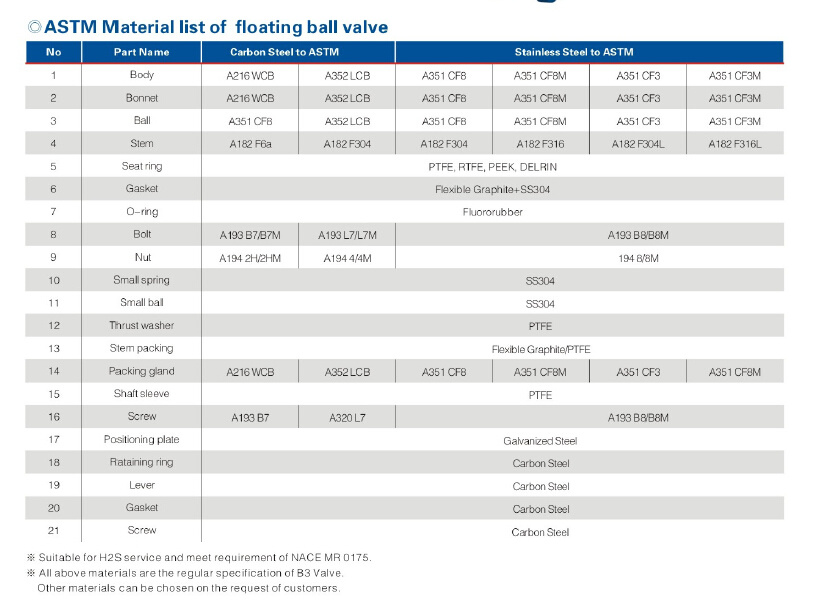

Body Materials:   Carbon Steel, Stainless Steel, Alloy Steel
Trim:                   A105+ENP, 13Cr, F304, F316
Operation:           Lever, Gear, Electric, Pneumatic, Hydraulic

Design Features

Full port or reduced port
Floating ball design
Blowout-proof stem
Casting or forging body
Fire safe design to API 607/ API 6FA
Anti-static to BS 5351
Cavity pressure self relief
Optional locking device


Prod Model: B3-BV-05
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3/8"~8"
Connection Form: Flange
Structure: Floating Ball Valve
Type: Floating Ball Valve
Driving Mode: Pneumatic,Electric,Lever,Gear
Function: Open and Close
Material: Stainless Steel, Cast Steel,Forged Steel,Alloy
Nominal Pressure: Class150~Class600
B3 VALVE Group Company is a leading manufacturer of industrial valves in China. All products are designed and manufactured completely as per international standards and selling them well in global markets. Today, more than 90% of our valves are exported to Western European countries, North America, Japan, Middle East of Asia, Australia, etc, and widely used in the fields as Oil & Gas, Refinery, Chemical and Petrochemical, Power Generation, Water and waste water treatment industrial, etc.

We keep in mind that for valves, quality is always the most important. In order to make sure that our customers receive good quality products, we have established strict quality control systems. Now our factories are certified by ISO9001, API6D, CE, AZ, etc. As castings/forgings are the key point for valves quality, all our subcontracted foundries/forging plants are also CE certified and pre-audited to be approved by our own inspectors.

Nowadays, B3 VALVE has over 30 quality control engineers and more than 200 skilled workers. All valves are produced as per relevant international standards. We have labs for material chemical composition analysis and quality examination equipments, such as RT, UT, MT, PT, Fire-safe test etc to guarantee all material tests and each valve should be pressure tested to be satisfactory before delivery. Material test report and pressure test report as per EN 10204 3.1. B will be supplied with our valves.

Concerning quality guarantee, our usual guarantee period is 18 months from delivery date, we can guarantee that our valve will work well in their life circle and we will be responsible for any valves we sold. Our aim is to produce "zero leakage" and "long reliable service life" valves to minimum the "Total Costs".

We always devote to provide the first class valve product and services of fine character and high ratio of performance-price for the current industry. We also know we need to have a whole set of strong and high effective quality management system in order to assure the high character of the products, meanwhile we make solemn quality promises to all of our products with high responsible attitude, ensure its products to be in compliance with international and area relative product standards, meet the requirements of the current industry.

So all our valve products are designed strictly according to the international newest product standards and continuously improve and upgrade designing ideal, manufacturing process, quality management level in order to realize the quality promises and always make B3 VALVE to be the first class valve manufacturer and solution provider both domestically and abroad.
