Floating Ball Valve
| Price: |
Negotiable/Piece |
| Min Order: |
1 /Piece |
"ZGVG"Floating Ball Valve
"ZGVG"Floating Ball Valve Detailed Product Description
Floatiing Ball Valve Specifications:
1) Design: API 6D
2) Inspection and test: API 6D
3) Face-to-face: ANSI 16.10 / API 6D
4) Flange: ANSIB16.5 / ANSIB16.47
5) Size: 1/2-20"quot;
6) Class: 150 - 1500LB
7) Temperature: Lower than 425º C
8) Material: WCB, 304(CF8), 316(CF8M), 304L(CF3), 316L(CF3M), LCB, etc.
Features:
1)Forged body optional
2)Reduce bore/Full bore
3)Extended bonnet for cryogenic serveices
4)2pcs/3pcs optional
5)PTFE/M-T-M sealing
Materials: Carbon steel: ASTM A216 WCB, WCC
Alloy Steel: ASTM A217-WC6, WC9, C5, C12
Stainless Steel: CF8, CF8M, CF3, CF3M CF8C or Equivalent
Cryogenic steel: LCB, LF2, LC3, LF3
(Extended Bonnet for cryogenic services by pass on request)
Actuation: Lever, Gear, Eletric, pneumatic, Motor operator etc.
| Materials |
| NO. | Part name | Material |
| 13 | Handle | Carbon steel |
| 12 | Lock nut | Carbon steel |
| 11 | Gland nut | Carbon steel |
| 10 | Thrust washer | PTFE/NYLON |
| 09 | Gland bush | Stainless steel |
| 08 | Stem | Stainless steel |
| NO. | Part name | WCB | LCB |
| 07 | Stud and nut | A193 Gr B7/A194 Gr 2H | A320 Gr L7/A194 Gr 4 |
| 06 | Packing | Graphite/ptfe | Graphite/ptfe |
| 05 | Ball seat | PTFE/RPTFE/NYLON | SPTFE/RPTFE/NYLON |
| 04 | Gasket | Grafoil/spiral wound | Grafoil/spiral wound |
| 03 | Ball | A182 F6a | A182 F304 |
| 02 | R-body | A216 Gr WCB | A352 Gr LCB |
| 01 | L-body | A216 Gr WCB | A352 Gr LCB |
| NO. | Part name | CF8 | CF8M |
| 07 | Stud and nut | A193 Gr B16/A194 Gr 4/7 | A193 Gr B7/A194 Gr 2H |
| 06 | Packing | Graphite/ptfe | Graphite/ptfe |
| 05 | Ball seat | PTFE/RPTFE/NYLON | PTFE/RPTFE/NYLON |
| 04 | Gasket | Grafoil/spiral wound | Grafoil/spiral wound |
| 03 | Ball | A182 F304 | A182 F316 |
| 02 | R-body | A351 Gr CF8 | A351 Gr CF8M |
| 01 | L-body | A351 Gr CF8 | A351 Gr CF8M |

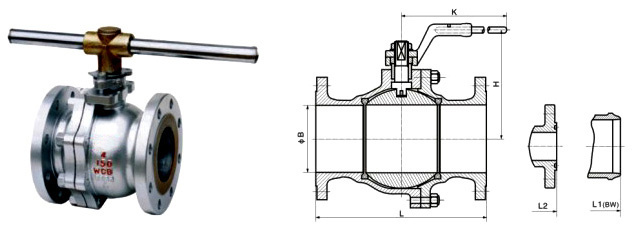

CLASS 150~300 FLOATING BALL VALVE
| Dimensions |
| Class 150 |
| Size | inch | 1/2 | 3/4 | 1 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 6 | 8 |
| L-RF | mm | 108 | 117 | 127 | 165 | 178 | 191 | 203 | 229 | 394 | 457 |
| L1-BW | mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 |
| L2-RTJ | mm | - | - | 140 | 178 | 191 | 203 | 216 | 241 | 406 | 470 |
| B | mm | 13 | 19 | 25 | 38 | 51 | 64 | 76 | 102 | 152 | 203 |
| H | mm | 65 | 70 | 80 | 95 | 110 | 135 | 145 | 170 | 235 | 275 |
| K | mm | 150 | 155 | 160 | 180 | 200 | 225 | 325 | 350 | 500 | 600 |
| WT. | Kg | 3 | 4 | 5 | 8 | 12 | 21 | 26 | 43 | 80 | 155 |
| Dimensions |
| Class 300 |
| Size | inch | 1/2 | 3/4 | 1 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 6 | 8 |
| L-RF | mm | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 403 | 502 |
| L1-BW | mm | 140 | 152 | 165 | 191 | 216 | 241 | 283 | 305 | 457 | 521 |
| L2-RTJ | mm | 151 | 165 | 178 | 203 | 232 | 257 | 298 | 321 | 419 | 518 |
| B | mm | 13 | 19 | 25 | 38 | 51 | 64 | 76 | 102 | 152 | 203 |
| H | mm | 70 | 85 | 90 | 105 | 120 | 145 | 160 | 195 | 250 | 290 |
| K | mm | 155 | 160 | 180 | 200 | 225 | 325 | 350 | 500 | 600 | 700 |
| WT. | Kg | 3 | 5 | 7 | 13 | 15 | 28 | 32 | 55 | 105 | 170 |
CHINA Zheng Guang Valve Group Co., Ltd. (ZGVG), established in 1993, integrates the design, production, examination, sales into a body in the field of valve industry. "ZGVG"is of high and new technique business enterprise which owns a registered capital of RMB 73 Million with workshop area 28000 Sq metres and building area of 35000 Sq metres...
"ZGVG" conforms to the quality management system strictly, has being a member of Valve Branch of China General Machinery Industry Association, , a member unit of Material Resource Market of Sinopec, a member of the power station parts supply network of State Power Co., for more than 15 years in manufacturing valves. There is the perfect quality management system, certified by international certificates such as ISO9001, API6D-0683, CE-1277, ISO14001, AZ successively. Nowadays, "ZGVG"has 685 workers with 19 senior engineers and 68 professional technicians more than 400 sets of excellent and modernizing machines for processing valves and heat treatment equipment among them.
"ZGVG" main products:
1. Valve Types: Gate, Globe, Check, Ball, Butterfly, flat gate, Plug, Y-Strainer, Flanges etc.
2. Standard: ANSI, API, MSS, JIS, DIN, BS, NF and GB standards.
3. Size rang: 1/4"~42" (DN6mm~1050mm),
4. Pressure range: 150LB~4500LB (0.1Mp~75.0Mp)
5. Materials range: WCB(A105N), WC1, WC6(F11), WC5, WC9(F22), LCB, LF2, CF8 (F304), CF8M (F316), CF3 (304L), CF3M (F316L), etc,
6. Working temperature -196C~730C
"ZGVG" products are widely applied in such industries as petroleum, chemical industry, natural gas, chemical fertilizer, metallurgy, pharmacy, electric power, mine and building. Meanwhile we are dedicated to opening up the international market and by now our products have exported to cover North America, Europe and the mid-east such as U. S. A, U. K., Italy, Australia, South Africa, Indonesia, Kuwait, Czech, the Netherlands, Spain and etc...Our products have own trust and a good reputation among numerous customers by right of excellent quality, favorable price, complete varieties, timely delivery and satisfactory sale before, during and after sale.
It's an eternal pursuit of"ZGVG" to "Introduce High Technology, Carry out Strict System Management, Develop Quality Product and Create a Top-class Brand and to be the best valve manufacture in china". We sincerely hope to establish steady and long cooperation with our customers.
