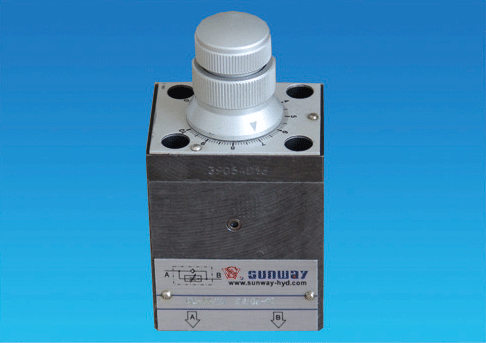

1. QC are flow control valves with pressure compensators: The controlled flow rate is independent of pressure va- riations.
2. They can be equipped GQ overlap boards with the mo- dular check adjusting speed valve.
3. They are usually supplied with a built- in check valve to allow the free flow in the opposite direction.
4. The flow is regulated by turning a graduate micrometer knob, clockwise rotation increases the throttling.
Assembly position
Mounting surface
Ambient temperature
Fluid
Recommended viscosity
Fluid contamination class
Fluid temperature
Only position
T≤80C, T≥60C select/ PE seals
Hydraulic oil as per ISO51524^^535, other type see table
15- 100mm / s at 40C(ISO VG 15-100)
ISO19/ 16, Achieved with in line filters at 25μm valve to β≥75( recommended)
Roughness of surface Ra0.4, Flatness ratio 0.01/ 100( ISO VG 20- 30)
