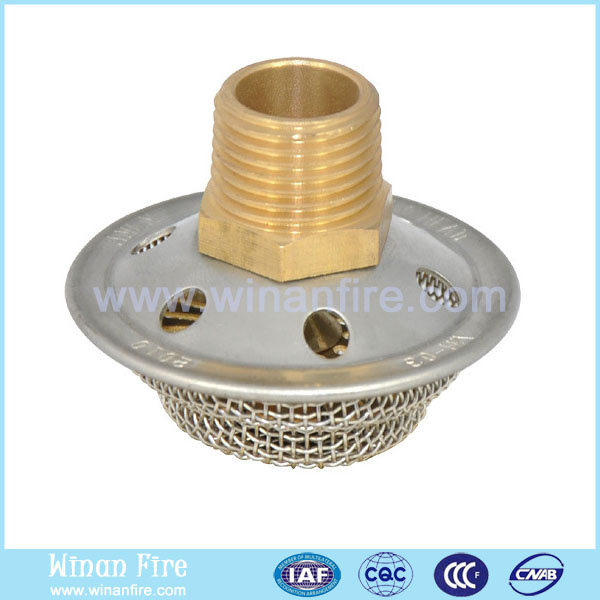

Foam Sprinkler, Foam Nozzle Series
The reticular foam nozzle (PTW series) and foam and water dual sprinkler (PTT/S series) are the specialized units to form and spray air foam, which is mainly used in low expansion extinguishing system. The foam solution conveyed to the nozzle by pipes and inhale air before outlet of the nozzle and then become foams to put out fire. The foam/water combined nozzle can also spray water besides spraying foam.
Working principle:
When the pressure foam solution flow through the lumen of the nozzle, its pressure will be reduced because of throttling, which result in vacuum and inhale air. The foam solution then becomes foams after dispersed by nozzle.
Technical parameters
Model | Working Pressure Range (MPa) | Solution Flow (L/S) | Expansion Ration | 3m Heigh Spray Diameter (m) |
PTW1.0 | 0.3~0.5 | 1 | ≥6 | ≥3 |
PTW1.2 | 1.2 |
PTW1.5 | 1.5 |
PTW1.75 | 1.75 |
The Shenzhen Winan Industrial Development Co., Ltd. Was set up in 1995 with registered capital of 13, 680, 000RMB. We specialized in manufacturing fire-fighting Equipment for 20 years and we devote to provide clients with high quality & reliable products.
The company now has a large area of industrial workshops of more than 10000 square meters. We possess all kinds of advanced producing equipments, sophisticated manufacturing process and modernized testing center. Our products contain foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves.
Winan fire-fighting passed the ISO9001: 2000 Quality Management System Certification in 2001 and we also passed the CCCF Product Quality Certification of Ministry of Public Security fire products in 2004. Products manufactured by Winan fire-fighting were assessed as the "Chinese high-quality brand-name products" by Chinese Quality Management Juries. The company was assessed as the "AAA" honest enterprise by Ministry of Commerce Economic Academy and it is the member of Chinese Fire Protection Association.
Products made by Winan fire-fighting had won a number of national patents after decades of innovation and we believe that we can do better in our industry!
