Food Grade Sanitary Butterfly Valve

Food Grade Sanitary Butterfly Valve
Price: US $ 20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

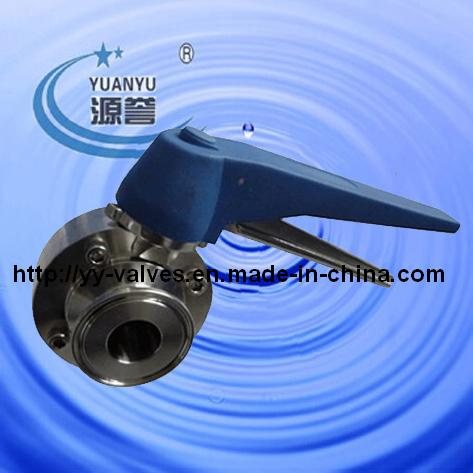

Food Grade Sanitary Butterfly Valve

Material of valve: AISI304/AISI316L
Size: DN15-DN300, 1/2"-12", 12.7mm-305mm
Standard of valve: DIN, 3A, ISO/IDF, BS/RJTASME/BPE
Material of seal: Silicone/EPDM/FPM FDA117.2600
Connection mode: Weld/clamp/thread/flange/union
Certification: Material inspection report
Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
Three type of actuator: Normally open(NO), normally closed(NC), Air/Air(A/A)
Work principle: This kind of valve can be handled by manual or an electric actuator, and also can be handled by a pneumatic actuator.

Medium: Food, beverage, dairy, pharmacy.

Don't hesitate to contact us if you need more details or catalogue. We can produce this kind of product according to your requirement if your specification is out of our standard.
CE CERTIFICATE CAN BE PROVIDED

 Technical Data
 Material Contact with the product components 304/316L(1.4306/1.4404) Can provide material inspection report
 Materal no contact with the product components 304(1.4301)
 Sealing material Standard silicone Adopt sealing material with all the seal material the FDA 117.2600
 Option EPDM/FPM
 Pressure Pressure of work  0-10 bar
 Control air pressure  5-8 bar
 Temperature Working temperature  Silicone:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
 sterilization temperature 150ºC(Max 20min)
 Surface treatment Inside surface treatmentRa≥0.4-0.8μm
 Surface treatmentRa≥0.8-1.6μm
 Connection The diameter weldingDIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....
 Connection mode:weld, triclamp,thread,flange,union,nut,etc
 Optional driven Brainpower
 Pneumatic controlPneumatic head and fixed bracket
 Manual handle modepulling handle (round puling handle, square pulling handle)  Position-P4Gripper handle(stainless steel&plastic) Postions-G12 American type stainless steel gripper handle  Postions-G12

Prod Model: YY1133
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dn15-Dn300, 1/2"-12", 12.7mm-305mm: AISI304, AISI316L
CE Certificate: Material Test Report
Structure: Centre Sealing
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Normal Temperature (',-40??C
Material Of Seal Surface: Soft Sealed
Connection Form: Multi-Position Plastic Handle
Seal Form: Silicone Seal/EPDM/FPM
Application: Food, Beverage, Beer, Dairy, Pharmacy
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.

The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.

All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.

Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.

We have exported our products in the international market for 8 years.

In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
