Product Name: Sanitary Check ValveBrand: Flowtam
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.4um
Certification: CE ISO9001:2000
Tech Data:
Size : DN15-DN200 1/2"-8"
Standard: DIN,SMS,3A,ISO,IDF
Material: AISI304(L) AISI316(L)
Connection Type: Weld, Clamp, Thread
Polish: Mirror Polish Ra<0.4um
Max. Working pressure: 1.0 MP(10bar)
Min.Working pressure: Vacuum
Working Temperature: -5°to 95°
Material:The parts contact with the liquid adopt AISI 304 or AISI 316L
Other Parts :Adopt AISI 304
Sealing Material: Silicon , EPDM , PTFE
Application: Dairy, beer, food, beverage, pharmacy, biotechnology, etc

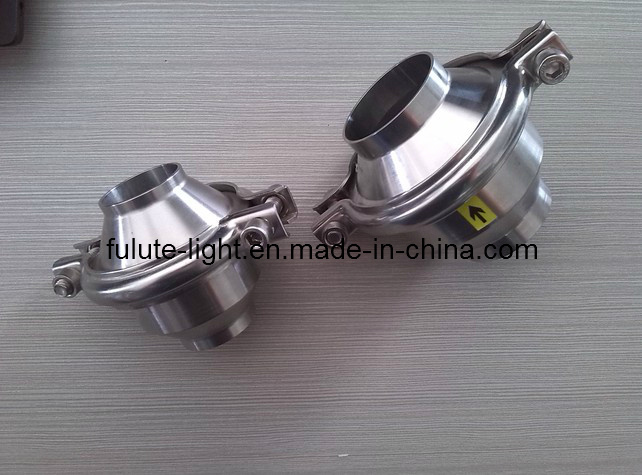

Photos of the Sanitary Check Valves
|
Item |
Size |
Length |
OD |
|
Welded Check Valve |
19 |
74 |
19 |
|
Welded Check Valve |
25 |
74 |
25 |
|
Welded Check Valve |
32 |
74 |
32 |
|
Welded Check Valve |
38 |
74 |
38 |
|
Welded Check Valve |
45 |
87 |
45 |
|
Welded Check Valve |
51 |
87 |
51 |
|
Welded Check Valve |
57 |
87 |
57 |
|
Welded Check Valve |
63.5 |
93 |
63.5 |
|
Welded Check Valve |
76 |
93 |
76 |
|
Welded Check Valve |
89 |
100 |
89 |
|
Welded Check Valve |
102 |
120 |
102 |
|
Welded Check Valve |
104 |
120 |
108 |
|
Item |
Size |
Length |
Tri clamp size |
|
Tri clamp check valve |
25 |
99 |
50.5 |
|
Tri clamp check valve |
32 |
99 |
50.5 |
|
Tri clamp check valve |
38 |
99 |
50.5 |
|
Tri clamp check valve |
51 |
112 |
64 |
|
Tri clamp check valve |
63.5 |
118 |
77.5 |
|
Tri clamp check valve |
76 |
125 |
91 |
Wenzhou Flowtam Light Industry Machinery Co., Ltd. Established in 1995, Located in BinHai Industrial Zone. With 17 year manufacturing experience. We have a product range incluing Stainless steel tank, Stainless steel pumps, Stainless steel valves and pipe fitting.
Our products are mainly applied in the fields like dairy, food, beer, medicine, biology, chemical, beverage, food and cosmetics industries etc.
In 2012, Our mixing pump have been approved by CE certificate. Form our frist export transaction in 2006, We have sold our products in many foreign countries, such as USA, Newzealand, Australia, Indonesia etc.
