Food Grade Stainless Steel Sanitary Weld Check Valve

Product Name: Sanitary Check Valve
Brand: Flowtam
Material: 304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.4um
Certification: CE ISO9001: 2000

Tech Data:
Size: DN15-DN200 1/2"-8"
Standard: DIN, SMS, 3A, ISO, IDF
Material: AISI304(L) AISI316(L)
Connection Type: Weld, Clamp, Thread
Polish: Mirror Polish Ra<0.4um
Max. Working pressure: 1.0 MP(10bar)
Min. Working pressure: Vacuum
Working Temperature: -5° To 95°
Material: The parts contact with the liquid adopt AISI 304 or AISI 316L
Other Parts: Adopt AISI 304
Sealing Material: Silicon, EPDM, PTFE
Application: Dairy, beer, food, beverage, pharmacy, biotechnology, etc

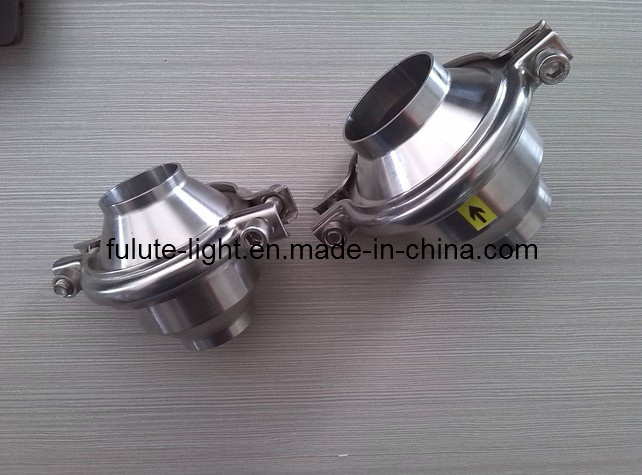

Photos of the Sanitary Check Valves

Item	Size	Length	OD
Welded Check Valve	19	74	19
Welded Check Valve	25	74	25
Welded Check Valve	32	74	32
Welded Check Valve	38	74	38
Welded Check Valve	45	87	45
Welded Check Valve	51	87	51
Welded Check Valve	57	87	57
Welded Check Valve	63.5	93	63.5
Welded Check Valve	76	93	76
Welded Check Valve	89	100	89
Welded Check Valve	102	120	102
Welded Check Valve	104	120	108
Item	Size	Length	Tri clamp size
Tri clamp check valve	25	99	50.5
Tri clamp check valve	32	99	50.5
Tri clamp check valve	38	99	50.5
Tri clamp check valve	51	112	64
Tri clamp check valve	63.5	118	77.5
Tri clamp check valve	76	125	91
