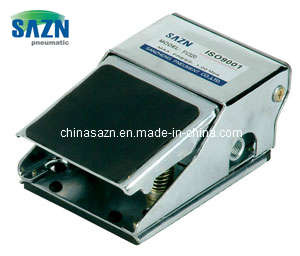

Foot Pedal (ST, FV, 4F, 4FM)
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Our company offer pneumatic foot valves with two position five way and two position three way, , and also produce with cover.
Pneumatic foot valves belongs to manual changed-over element, the spool began to change-over to change the direction of the air current when the valve is operate by foot.
Pls choose the filtered impressed air with grease when application.
*Our company offer pneumatic foot valves, and the model of it is ST, FV, 4F, 4FM.
* Adaptr bore: G1/8-G1
*Working pressure: 0-0.8mpa
*Applicable temperature: 0-60oco
|
Type |
ST-402 |
ST402-A |
ST-403 |
ST-403A |
|
Fluid appiled |
Air |
|
Working pressure range |
0-8kgf/cm2 |
|
Workinf tempt range |
0-70 |
|
Adapter diameter |
G1/4 |
G3/8 |
|
Number |
Two postion five way |
|
Type |
Number |
Diameter |
Pressure |
Temp |
Effective area |
|
FV-320 |
Two position three way |
G1/4 |
1MPA |
5-60 |
8m/m |
|
FV-420 |
Two position four way |
|
Type |
4F210-08 |
4F210-08L |
4F210-08G |
4F210-LG |
|
Working medium |
Air |
|
Action mode |
Two posotion five way/direct operation |
|
Adapter diameter |
Inlet=outlet=1/4 |
|
Pressure range |
0-8kgf/cm2 |
|
Tempt range |
0-70 |
|
Lubricating |
No needed |
|
Type |
4FM210-06 |
4FM210-06L |
4FM210-08 |
4F210-08L |
|
Working medium |
Air |
|
Action mode |
Two posotion five way/direct operation |
|
Adapter diameter |
Inlet=outlet=1/8 |
Inlet=outlet=1/4 |
|
Pressure range |
0-8kgf/cm2 |
|
Tempt range |
0-70 |
|
Lubricating |
No needed |
| Prod Model: |
ST, FV, 4F, 4FM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
