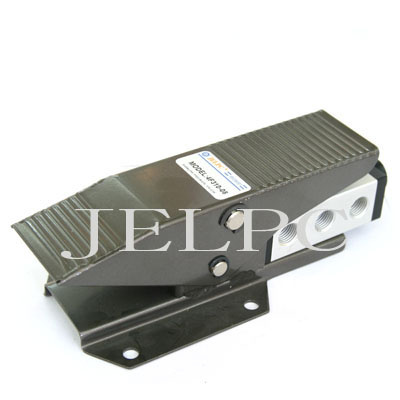

It is a kind of foot operated valve with the features of beautiful outside and little operative force. We also can supply types of foot valve with lock and cover. This kind of valve has been widely used in a variety kinds of pneumatic system.
Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG | FV420 | FV320 |
Working Medium | Air(to be filtered by 40μ filter element) |
Motion Pattern | Direct drive type |
Valve Type | 5 port 2 way | 4 port 2 way | 3 port 2 way |
Port Size | supply=Outlet=Exhaust=G1/4" | supply=Outlet==G1/4" Exhaust=G1/8" |
Working Presure | 0~0.8MPa |
Max. Ambient Temperature | 0~60 o C |
