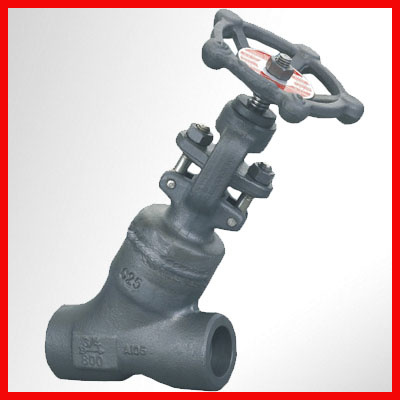

Forged steel gate, globe, check valves
Standards:
--Full port or reduced port;
--Outside screw and yoke (OS&Y);
--Two piece self - aligning packing gland;
--Bolted bonnet & spiral wound gasket seal bonnet;
--Threaded and seal welded bonnet or threaded and pressure seal bonnet;
--Integral back seat;
--Socket weld ends to ASME B16.11;
--Screwed end (NPT) to ANSI/ASME B1.20.1
Product Name: Forging Steel Gate Valve
Place of Origin: China
Features:
1) Size: 1/2" - 2";
2) Class: 150 - 2, 500lbs;
3) Design and manufacture: API 602, BS5352, ANSI B16.34;
4) Connection ends:
A) Socket welded dimension conforms to ANSI B16.11;
B) Screw ends dimension conforms to ANSI B1.20.1;
C) Butt-welded conforms to ANSI B16.25;
D) Flanged ends conforms to ANSI B16.5;
5) Test and inspection conforms to API598 and API 6D;
6) Structure features:
A) Bolted bonnet, outside screw and yoke(OS&Y);
B) Welded bonnet, outside screw and yoke(OS&Y)
7) Materials: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
8) Operated by: Handwheel
We can supply a wide range of butterfly valves, gate valves, globe valves, check valves, ball valves, safety & relief valves, plug valve, forged steel valve, strainers, hydraulic control valves, and pressure reducing valves.
Established in 1996, Luofu Valve Group Zhejiang Zhonggong Valve Co., Ltd is located in Wenzhou City, Zhejiang P. R 325105, China.
Main Products:
1. API/ANSI Standard Valve: Butterfly Valve, Gate Valve, Safety Valve, Globe Valve, Check Valve, Ball Valve, Plug valve
2. DIN standard: Gate valve, globe valve, strainer
3. GB Standard: Butterfly Valve, Gate Valve, Safety Valve, Globe Valve, Check valve, Control Valve, Water Control Valve, ball valve, plug valve
4. Flange and strainer
5. Bellows type valve: Globe valve, safety valve, gate valve, strainer
Honors:
1. API 6D
2. ISO9001: 2000
3. CE Certificate
4. AZ Certificate
5. Invent Patent (Patent No.: ZL 99 1 13657.8)
6. Audited Supplier (Trustworthy Supplier Members on Made-in-China. com)
Nominal diameter (DN): 15-4500 mm(1/2"-180");
Nominal Pressure (PN): 1.0Mpa-32Mpa(150lb-3000lb);
Material of body: WCB, WC6, WC9, CF8, CE3, CF3M. CF8M, etc.
Standard: GB, DIN, JIS, ANSI, API
The company has excellent mechanical processing equipment and modernized inspection& testing equipments more than 66 sets.
Zhonggong Valve Co., Ltd is experienced in the design and manufacture of valves and enjoys a high reputation in the valve industry. Now it has become the material equipment company of SINOPEC, the first-class network supplier of China National Petroleum Corporation, the member unit of China Ocean Petroleum Corporation, Shengli Oil Field, China Water &Electric Power Company, etc.
