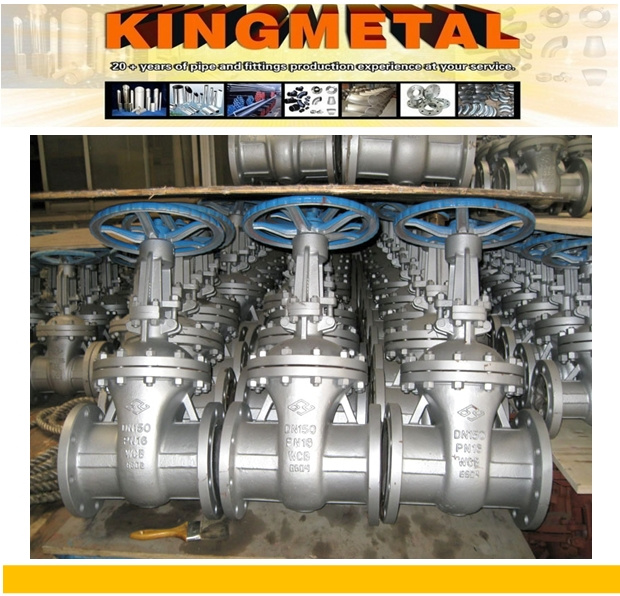

Forged Flange Ends Wedge Gate Valve

Forged Flange Ends Wedge Gate Valve
Price: US $ 20/Set
Trade Terms: FOB,CFR,CIF
Min Order: 20/Set
Pay Type: L/C,T/T
Forged Flange Ends Wedge Gate Valve

Size:DN15-DN1200(1/2"-48")

Pressure:PN10 PN16 PN25 PN40 PN63 PN100 (class150-class2500)

Standard: API600, API603,BS1414,DIN3352,ISO10434

Working temperature:
Gray cast iron ≤ 200,Ductile cast iron ≤300,Cast steel ≤425,Chromium-moly bdenum steel ≤550



Materials for main parts

Body
WCB,cast steel,Gray cast iron,Ductile cast steel,alloy steel
BonnetWCB,Gray cast iron,Ductile cast steel
DiscWCB,Gray cast iron,2Cr13 stainless steel,Stellite,Alloy steel(surface)
Stem2Cr13 stainless steel,304,304L,316,316L
Seat RingAlloy steel, Stellite, 2Cr13 stainless steel
NutAluminium bronze, Brass
PackingExpanded Graphite
Sealing RingPFTT

The main technical data
(1).Nominal Pressure:PN1.0MPa, PN1.6MPa
(2).Shell test Pressure:1.5MPa, 2.4MPa
(3).Seal Test Pressure:1.1MPa, 1.7MPa
Prod Model: KM-150317
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dn15-Dn1200(1/2"-48")
Media: Water, Oil, Gas, Steam
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Application: Water Industrial Usage
Material: Stainless Steel, Carbon Steel, Cast Steel
Standard: API600, API603,Bs1414,DIN3352,ISO10434
Type: Gate
Pressure: Medium Pressure
Guangzhou Kingmetal Steel Industry Co., Ltd., is an Industry Group Company. It is a professional company in designing, producing and selling steel pipe, pipefittings and prefabricated house. We have our own big factories with modern machine line to make high quality products, which is mainly to be exported to oversea markets.

We have two factories. One is located in Wenzhou city, it was established in 1989. This factory is a leading seamless stainless steel pipe and pipefitting manufacturer in China. It occupied 114, 000 square meters, with fixed capital over 200 million and total amount 300 million. It owns 500 staffs including 80 advanced engineers. It owns perfect management system, vigorous technology supports, advanced production equipment and completed inspection equipment. The factory pay highly attention to enterprise foundation establishment, successfully was approved the authentication of PED and AD by TUV from German company, and the national special equipment license. Our products greatly provide for petroleum chemical, metallurgy, pharmaceutical machinery, paper making, food, shipbuilding, environmental protection, boiler, heater exchanger, pressure container, condensation, water, electricity and so on. The mainly grades we can provide are 304, 304L, 316, 316L, 321, 321H, 317L, 310S, 347H, 31803 etc.

Another factory is located in Guangzhou city, it was established in 2002. This factory is one of the largest prefab house corporation in southern China. It occupied 30, 000 square meters, with fixed capital over 40 million and total amount 100 million. It owns 200 staffs. Annual out put is more than 2 million square meter, and there have a stock of about 50 thousand square meter. These products include slope top prefab house, flat top prefab house, non-standard steel structure (warehouse, industrial shed), container house, mobile fence wall, sentry box etc. Our goods not only sold to domestic market but also extended to Southeast Asia, Middle East, Europe, Australia, Africa, and South America etc.

At the same time, we also are the agency of Bao Steel, Hengyang, Tianjin, Anshan, Pangang etc. Big group steel company. We offer the seamless carbon, welded carbon steel pipe, GI pipe, and special pipe. Fittings elbow, tee, reducer, cap, lap joint, flanges etc...This is better for our customer to buy the different products from China, while they are saving their time, but they can enjoy in our best serves.

We have advanced technology of management, we win the trust because of our good quality.

We have clannish conscientious and passionate salesman, we gladden and steady the customers with our best service.

We are pure-hearted and awaiting for your kind attention to our company.
