Product Details:

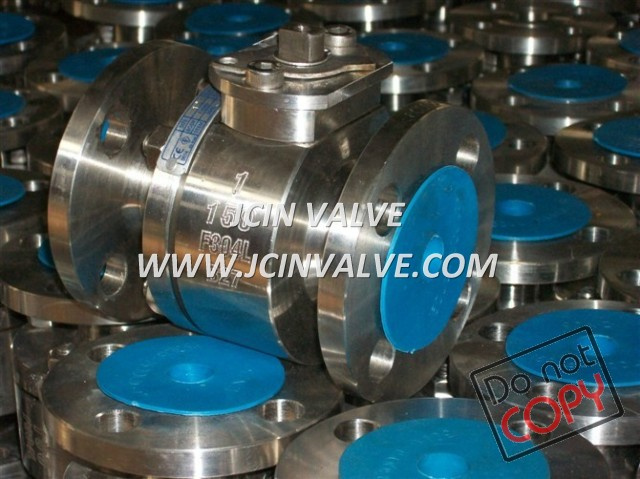

A floating ball valve is a valve with seats supported ball, which is pushed by upstream pressure towards the downstream seat to ensure sealing. This series of valves are ideal for medium or high pressure services and wide temperature range (-190 ~ 500 C) . They are characterized by simple design, easy maintenance, low cost and quick delivery. This product line is used primarily in the Oil & Gas, Building and construction Industries, Chemical and Petrochemical services, among others.
Applicable Standard
Design Standard: API 6D, ASME B16.34, API 608, BS 5351, DIN 3357, EN 12516
Face to Face: API 6D, ASME B16.10, EN 558-1
End Connection: ASME B16.5, ASME B16.25, EN 1092-1
Inspection and Test: API 6D, API 598, DIN 3230, EN 12266
Design Features
Full port or reduced port
Floating ball design
Blowout-proof stem
Fire safe design to API 607/ API 6FA
Anti-static devices
Cavity pressure self-relief
Optional locking device
Size:
1/2" ~ 10" (DN15 ~ DN250)
Rating:
150lbs-2500lbs (PN10-PN420)
Body Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim:
A105+ENP, F6a, F304, F316
Operation:
Lever, Gear, Electric, Pneumatic
JCIN VALVE is a leading manufacturer and supplier of valves for Oil, Gas, and Power Generation industries.
The main products include Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Dual Plate & Strainers, in forged or cast steel. Our product range starts from 1/2" and extends to 36" valves with pressure ratings ANSI / ASME Class 150 to 2500 Lbs, and DIN PN 16 to PN 100.
The highest quality and variety of used materials (Carbon Steels, Low Temperature Carbon Steel, Alloy Steels, Stainless Steels, and other special alloy steel according to ASTM & ASME) can satisfy all the requirements of the Chemical, Petrochemical and Power Plants, Oil and Gas, Off-Shore & On-Shore, Refining, Ship Building, Water Treatment & Energy Generation.
JCIN VALVE's annual sales include 80% for international market, which mainly exported to South Africa, Italy, Poland, Spain, and South America area, we are strive to become a global brand of industrial valve.
At JCIN VALVE, Our main target is to offer a high quality product and service to ensure the highest degree of satisfaction and fidelity of our customers.
JCIN VALVE---Your honest partner on Industrial valve.
