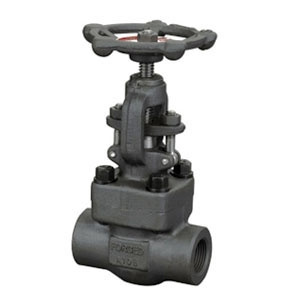

Forged globe valve
1. Globe valve CE, ISO9001, API6D, CQC, PDO
2. Globe valve size 1/4~2"
3. Globe valve class 800~2500LB
A105, F5, F9
Forged steel globe valve
Application standards:
1. Design and manufacture conform to: API 602;
2. Connection ends conform to:
1) Socket welded dimension conform to
ANSI B 16.11
2) Screw thread dimension conform to
ANSI B 1.20.1
3. Test and inspection conform to: API 598
4. Structure features: B. B, OS&Y
5. Materials conform to: ANSI/ASTM
6. Main materials:
A105; F5; F9; F11; F22; F91; F304; F304L; F316; F316L; F321; LF2 etc.
SANBORA Valve Co., Ltd, one of proffessinal company for ball valve\ Special valve manufactory company in China which products are widely in the industrial pipelines of petroleum, and we offer you:
Type: API6D: Gate, Globe, Check, Ball, Plug and Butterfly valve etc,
Special valve: Anti-coking four ways ball valve\hydrogen compressor ball valve\Obit ball vavle\Electricity ball valve\24-way molecular sieves valve\ PTA special valve \ Melt over valve\Bellows globe valve etc,
Size: From 1/2" to 56"(DN15--DN1400);
Class rating: From 150Lbs to 2500Lbs (PN16--PN420);
Material range: From Carbon steel, alloy steel, stainless steel, Super-duplex stainless steel and special alloy steel like Monel, Inconel, PIA;
Working temperature: From -196 centidegree to 650 centidegree.
We have exported our business in 15 courtries and districts, mainly in Europe, North America, South Asia, Russia and awe wonder whether we'd be able to have the opportunnity to work together with you with our professional experience, with reasonalbe price, good quality and delivery.
