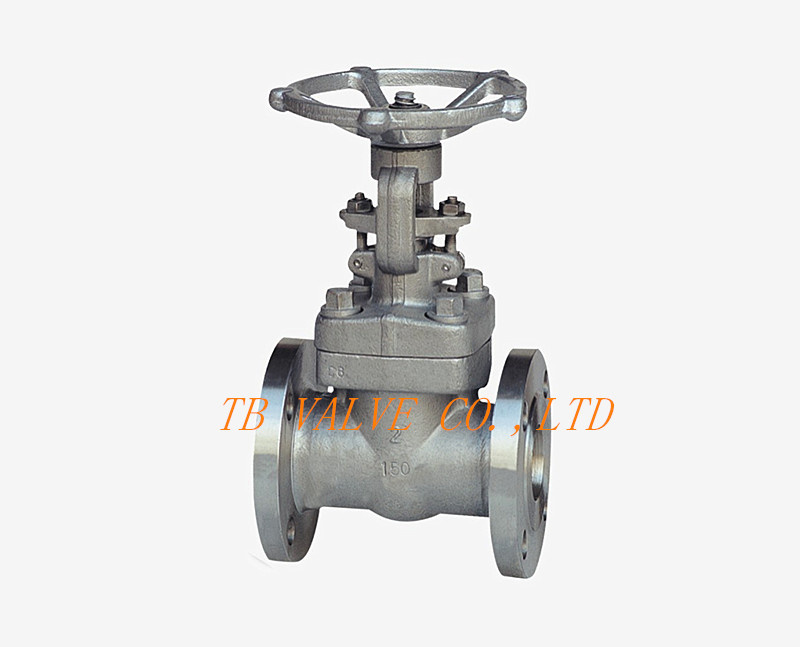

Forged Stainless Steel Flange Globe Valve

Forged Stainless Steel Flange Globe Valve
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Connection Form:Flange Material:Carbon Steel Seal Surface:Wedge Globe Valve Thread Position of Valve Rod:Inside Globe Valve Application:Industrial Usage, Water Industrial Usage Size:3/8" to 2" Export Markets:Global Product Description Forged steel Globe valves Globe  valves are in three bonnet designs. Bolted bonnet / welded bonnet / pressure seal bonnet. 800LB / 1500LB / 2500 LB Full port Design standard: API 602 / ASME B 16.34 / BS5352 Socket Welded Ends: ASME B 16.11 Screwed Ends (NPT) to ANSI / ASME B1.20.1 Butt Welded Ends: ANSI B 16.25 Flanged Ends: ANSI B16.5 Test standard: API 598 Marking standard: MSS SP-25 Materials Available: A105 / LF2 / F304 / F304L / F316 / F316L / F11 / F22 / F5 / F91. Etc.
PART NAME CStoASTM AStoASTM SStoASTM
  A105 F22 F304L F316L
BODY A105 A182 F22 A182F 304L A182 F316L
SEAT A276 420 A276 304 A276 304L A276 316L
WEDGE A182F 430&410 A182 F304 A182F 304L A182 F316L
STEM A182 F6 A182 F304 A182F 304L A182 F316L
GASKET 316  WITH GRAPHITE 316  WITH  PTFE
BONNET A105 A276 F304 A276F 304L A276 F316L
BOLT A193 B7 A193 B16 A193 B8 A193 B8M
PIN A276420 A276 304
GLAND A276410 A182F 304L A182F F316L
GLAND EYEBOLT A193 B7 A193 B16 A193 B8 A193 B8M
GLAND FLANGE A105 A182 F11 A182F 304L A182F 316L
NUT A194 2H A194 4 A194 8 A194 8M
STEM NUT A276 420
LOCKING NUT A194 2H A194 4 A194 8 A194 8M
NAME PLATE SS
HANDWHEEL A197
GASKET A473431
PACKING GRAPHIT PTFE

Prod Model: J41H-150LB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 3/8"--2"
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Sealing Form: Gland Packings Globe Valve
Standard: BSW
Application: Forged Steel Globe Valve
Tianbang is specialized in industrial valves, water supply and drainage equipment research and development, production, manufacture and sales of integrated enterprise. Leading products include: Forged steel valve, forged steel valve, forged steel check valves, forged steel ball valve forged steel valve products are widely used in petroleum, chemical, fertilizer, metallurgy, pharmaceutical, power, mining, water supply and drainage and supply heat and other industries. Products sold in major medium-sized enterprises, and to explore the international market, users get widespread praise and trust, and dedication to provide customers with pre-sale and after-sale service.

Professional, fine, high-quality day state of the valve is based on the book, survive; Sake of customers from the small office is our service philosophy. In the future increasingly competitive global market competition, we always follow the "quality first, customer first, excellence, and strive to develop, research and innovation, " the quality policy; Adhere to the "loyal, hard-working, enterprising" culture; Adhere to the "quality, the pursuit of economies of scale "approach to build brands, stronger, bigger. With a good reputation sincere service to repay the majority of users love, and sincerely hope to cooperate with customers to create brilliant.
