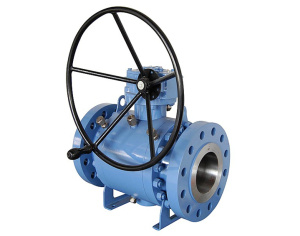

Forged Stainless Steel Flange Type Trunnion Ball Valve

Forged Stainless Steel Flange Type Trunnion Ball Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Metal Seated Ball Valve

Design Standards
1. Design and Manufacture as per: API6D ASME B16.34
2. Structural Length as per: API6D ASME16.10
3. Welded Ends: ASME B16.25
4. Test and Inspection as per: API6D API598

Structural Features:
1. Anti Static
2. Anti Blow-out Stem
3. Auxiliary Sealing Construction
4. Locking Device Available
5. Fire Safe API 607- 6FA.
6. Double block & bleed.
7. Emergency grease injection
8. Double seal for body

Metal Seated Ball valves features:
1. Metal to metal seated
2. Cavity pressure
3. Fire safe design
4. Anti Blow-out stem
5. Anti-static device
6. Locking Device
7. ISO 5211 mounting pad design
8. Gear/Actuator device
9. Metal-seated for severe conditions such as higher temperature, high pressure, and abrasive services in fields of Oil & Gas, Petroleum, Petrochemical, Chemical, Power Generation, Pulp & Paper, Mining industries
10. Trunnion ball design keeps the seats touch ball tightly to remain stable and lower torque.

Metal seated ball valves are required for many extreme service conditions involving abrasives, corrosives, high cycle rates or extreme temperature and pressure. These conditions require simple, well built but rugged designs, metal seats, rigorous testing and carefully chosen materials.
Prod Model: Q347Y
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Size: 2"-20"
Pressure: 150lb-2500lb
Certificate: DIN, BS, ISO, ANSI, as, JIS
Delivery Time: in 45days
Warranty: 18months
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Material: Stainless Steel
Application: Household Usage
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.

We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
