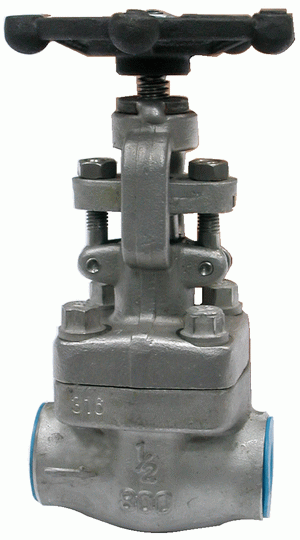

Forged Steel API Globe Valve (FBAXTH-000)
| Price: |
Negotiable |
| Trade Terms: |
by sea, by air |
| Min Order: |
200 |
| Pay Type: |
L/C,T/T |
DESIGN DESCRIPTION:
* BOLTED BONNET O. S & Y TYPE
* OPTIONAL: WELD BONNET O. S & Y TYPE
* WEDGE DISC, RENEWABLE SEAT RING
* CONNECTRION:
THREADED END, SOCKETED END
* THREAD TYPE(NPT, BSPT, DIN ENDS)
* MATERIAL:
A105, F304, F316, F11, F22, F304L, F316L
| WORKING TEMPERATURE |
| MATERIAL | CELSIUR SCALE | FAHRENHEIT |
| CARBON STEEL | -29 0 C~425 0 C | 6 0 F~822 0 F |
| STAINLESS STEEL | -40 0 C~550 0 C | 15 0 F~1047 0 F |
GENERAL DESIGN SPECIFICATIONS:
| ITEM | CLASS 600 | CLASS 800 | CLASS 1500 |
| MANUFACTURE | API 602 | API 602 | API 602 |
| PRESSURE-TEMPERATURE RATINGS | ANSI B16.34 | ANSI B16.34 | ANSI B16.34 |
| END TO END | ANSI B16.10 | ANSI B16.10 | ANSI B16.10 |
| END THREAD | ANSI B 1.20.1 | ANSI B 1.20.1 | ANSI B 1.20.1 |
| SOCKET-WELDING | ANSI B 16.11 | ANSI B 16.11 | ANSI B 16.11 |
| INSPECTION AND TEST | API 598 |
| ANSI | SHELL (WATER) | SEAT (WATER) | SEAT (AIR) | BACK SEAT (WATER) |
| CLASS 600 | 15.3MPA | 2225PSI | 11.2MPA | 1630PSI | 0.6MPA | 80PSI | 11.2MPA | 1630PSI |
| CLASS 800 | 21MPA | 3000PSI | 15.4MPA | 2200PSI | 0.6MPA | 80PSI | 15.4MPA | 2200PSI |
| CLASS 1500 | 38.7MPA | 5500PSI | 28.1MPA | 4000PSI | 0.6MPA | 80PSI | 28.1MPA | 4000PSI |
TEST PRESSURE TO API598
| ANSI | SHELL (WATER) | SEAT (WATER) | SEAT (AIR) | BACK SEAT (WATER) |
| CLASS 600 | 15.3MPA | 2225PSI | 11.2MPA | 1630PSI | 0.6MPA | 80PSI | 11.2MPA | 1630PSI |
| CLASS 800 | 21MPA | 3000PSI | 15.4MPA | 2200PSI | 0.6MPA | 80PSI | 15.4MPA | 2200PSI |
| CLASS 1500 | 38.7MPA | 5500PSI | 28.1MPA | 4000PSI | 0.6MPA | 80PSI | 28.1MPA | 4000PSI |
TRIMS SPECITIED DUE TO TABLE 3:
| DISC SEAT SURFACE PART NO.2 | BODY SEAT SURFACE PART | STEM PART NO.3 |
| F6 | F6 | F6 |
| STELLITE | STELILITE | F6 |
| F6 | STELILITE | F6 |
| F304 | F304 | F304 |
| F316 | F316 | F316 |
| MONEL | MONEL | MONEL |
| ALLOY 20 | ALLOY 20 | ALLOY 20 |
| HASTELLOY B | HASTELLOY B | HASTELLOY B |
| OTHER MATERIALS ARE AVAILABLE UPON REQUEST. |
PARTS AND MATERIAL (ASTM)
| PARTS AND MATERIAL: |
| NO. | PARTS NAME | MATERIALS |
| 1 | BODY | ASTM A105 | ASTM F304 | ASTM F316 | ASTM F304L | ASTM F316L |
| 4 | GASKET | GRAPHITE+304 | GRAPHITE+316 |
| 5 | BONNET | ASTM A105 | ASTM F304 | ASTM F316 | ASTM F304L | ASTM F316L |
| 6 | BONNET BLOT | ASTM A193 B7 | ASTM A193 B7 |
| 7 | STEM PACKING | REINFORCED GRAPHITE |
| 8 | GLAND | ASTM A276 410 | ASTM F304L | ASTM F316L | ASTM F304L | ASTM F316L |
| 9 | GLAND FLANGE | ASTM A216 WCB | ASTM F304 | ASTM F316 | ASTM F304L | ASTM F316L |
| 10 | GLAND EYEBOLT | ASTM A193 B7 | ASTM A193 B8 |
| 11 | GLAND NUT | ASTM A194 2H | ASTM A194 B8 |
| 12 | STEM NUT | ASTM A276 410 | ZcuAl10Fe3 |
| 13 | HAND WHEEL | ASTM A197 |
| 14 | H.W.LOCK NUT | ASTM A194 2H | ASTM A194 B8 |
| OTHER MATERIALS ARE AVAILABLE UPON REQUEST. |
