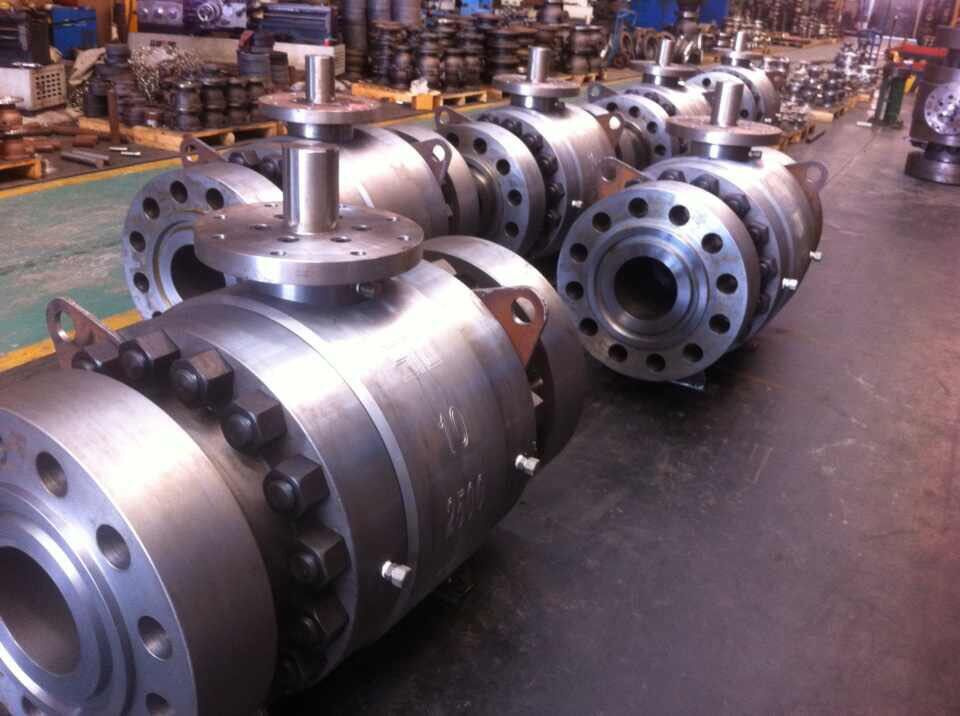

Working Principle:
American standard principle of forged steel ball valve is rely on the screw type ball 90 degree Angle as a condition of opening and closing, when the valve core is an Angle of 90 degrees ball in a straight flow channel, small flow resistance, low friction factor, it is not easy to damage. Beautiful mark forged steel ball valve is especially suitable for application in sulfide environment make sulfide cracking, not easily be medium erosion, has been widely used in various industries.
Structure:
Forged steel ball valve body along the channel valve axis in two seat place in vertical section is divided into three parts, valve along the central axis left and right sides is symmetrical, the valve stem it in the line is mainly used for cutting, distribution, and change the flow direction of medium. Standard seat is spring structure, will seat into the ball, to ensure the sealing performance of good import and export. Stage I valve forged steel ball valve American standard with excellent performance, high reliability, wide range of USES, the price is reasonable, etc. Table I forged steel ball valve American standard in accordance with API standard. Is widely used in: chemical, oil, natural gas, metallurgy, and other industries and medium containing hydrogen sulfide, impurities, serious corrosion of long distance natural gas pipeline
Product Description:
Size : 1/4~36"(DN8~DN900)
Rating : 150LB~2500LB (PN16 ~ PN100)
Connection:FLG
Working Temperature:-46~540ºC
Seat:PTFE,RPTFE,NYLON,MOLON,PEEK,DEVLON,POM,PCTFE,PPL,
STL NI60,STL NI55,STL20#,STL6,WC,TCC
Material:
WCB,LCB,LCC,WC9,WC12,A105,LF2,F304,F316,F316L,F304L,F321,F51,F53,F55,F60,F6a, 20 Alloy,C61900,C63200,C83600,C37700,Inconel625,Inconel825,Monel400,Monel500,H.C-276ect.
Application Specifications:
1.Design and manufacture conform to BS5351 ASME B16.34
2.Face to face ANSI B16.10
3.End flange to ANSI B16.5
4.Bw end to ANSI B16.25
5.Test and inspection conform to API598
6.Material conform to ANSI/ASTM
Features:
1.Two-Pieces Forged Body
2.Both Floating Type and Fixed type
3.Blow-out Proof Stem
4.Fire Safe Design
5.Anti-Static Device
6.Interlocking Device
Mode of Operation:
Manual,Turbine,Electrical, Pneumatic, Hydraulic
Zhejiang Yongjia Zhenghong Valve Co., Ltd is located in the hometown of valve- Oubei Town, is a valve enterprise with collection of production and sales of high, medium and low pressure. Various valves with reliable quality and favorable price sell well both at home and abroad. The main products include gate valves, globe valves, check valves, ball valves, steam traps, safety valves and control valves those are widely applied in the field of petroleum, chemical fertilizer, steel, textile, pharmaceutical, and high-rise buildings. Main materials used: Stainless steel, special steel, WCB, WC9, 2GCr5Mo, 2G1, etc.
Our company obtained the quality certification of ISO9001, API 6D, the authentication of TS. According to quality system standards, we try our best to innovate and develop kinds of competitive products. The development strategy of company is adhering to "quality first, service first, continuous improvement and innovation to meet the customers".
We sincerely welcome both old and new customers at home and abroad to inquiry and visit our company.
