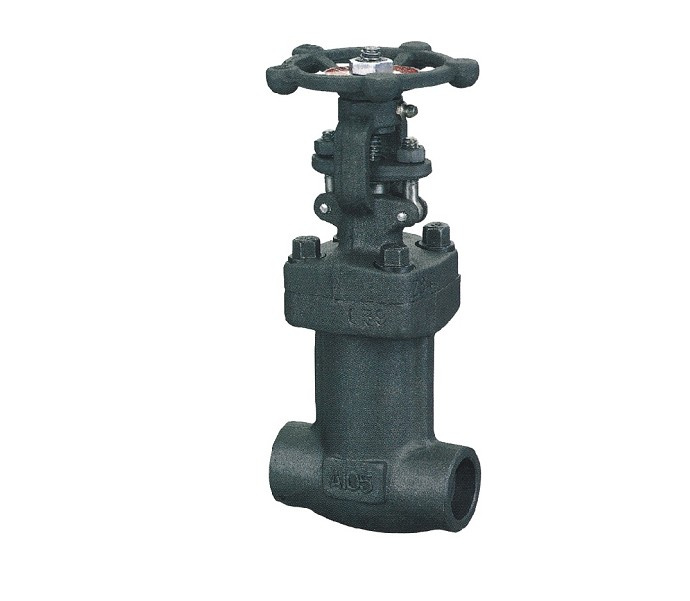

Application standards
Design and manufacture conform to API602
Connection ends conform to:
Socket welded ends conform to: ANSI B 16.11
Screwed ends conform to ANSI B1.20.1
Butt-welded ends conform to ANSI B 16.25
Flanged ends conform to ANSI B 16.5
Test and inspection conform to API 598
Structure features; Bolted bonnet, outside screw and yoke
Welded bonnet, Outside screw and yoke.
Materials conform to ANSI/ASTM
Main materials: A105; 304(L); 316(L); F347; F321
Bellow materials: 304; 321; 316; InconelI625; Hastelloy; C276; Monel.
|
NO. |
Part name |
A105/F6a |
A105/F6aHFS |
F304(L)/304(L) |
F316(L)/316(L) |
A105/F6aHF |
|
1 |
Body |
A105 |
A105 |
F304(L) |
F316(L) |
A105 |
|
2 |
Seat |
410 |
410HF |
304(L) |
316(L) |
410 |
|
3 |
Wedge |
F6a |
F6a |
F304(L) |
F316(L) |
F6aHF |
|
4 |
Stem |
410 |
410 |
304(L) |
316(L) |
410 |
|
5 |
Gasket |
Flexible Graphite |
|
6 |
Bonnet |
A105 |
A105 |
F304(L) |
F316(L) |
A105 |
|
7 |
Bolt |
B7 |
B7 |
B8 |
B8 |
B7 |
|
8 |
Pin |
410 |
410 |
304 |
304 |
410 |
|
9 |
Gland |
410 |
410 |
304 |
316 |
410 |
|
10 |
Gland eyebolt |
B7 |
B7 |
B8(M) |
B8(M) |
B7 |
|
11 |
Gland flange |
A105 |
A105 |
F304 |
F304 |
A105 |
|
12 |
Hex nut |
2H |
2H |
8(M) |
8(M) |
2H |
|
13 |
Stem nut |
410 |
410 |
410 |
410 |
410 |
|
14 |
Ltem nut |
35 |
35 |
35 |
35 |
35 |
|
15 |
Nameplate |
AL |
AL |
AL |
AL |
AL |
|
16 |
Hand wheel |
A197 |
A197 |
A197 |
A197 |
A197 |
|
17 |
Lubricating gasket |
410 |
410 |
410 |
410 |
410 |
|
18 |
Packing |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
|
19 |
Gasket |
Flexible Graphite |
|
20 |
Beelow |
F321 |
F321 |
F321 |
F321 |
F316L |
