Forged Steel Check Valve (H41H/H11H/H61H)

Forged Steel Check Valve (H41H/H11H/H61H)
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T

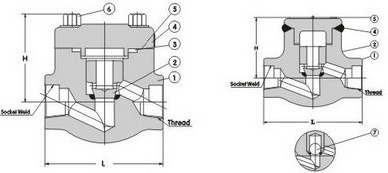

Piston Check Valve 800Lb.

Standard Material Specifications

NO.
Part Name
CS to ASTM
AS to ASTM
SS to ASTM
Type A105
Type F22
Type F304(L)
Type F316(L)
1
Body
A105
A182 F22
A182 F304(L)
A182 F316(L)
2
Piston Disc
A276 410
A276 304
A276 304(L)
A276 316(L)
3
Gasket
Corrugated SS + graphite
SS + PTFE
4
Bonnet
A105
A182 F22
A182 F304 L
A182 F316(L)
5
Nameplate
SS
6
Bolt
A193 B7
A193 B16
A193 B8M
A193 B8M
7
Ball
A182 F304
A182 F304
A182 F304
A182 F304
Suitable Medium
W.O.G.etc
W.O.G.etc
HNO3CH3OOH etc
Suitable Temperature
-29 425
-29 550
-29 180

Note: Other materials are available upon request.

Forged steel Check Valve Dimensions (mm) and Weights (Kg)


NPS
Conv.
3/8
1/2
3/4
1
1-1/4
1-1/2
2

Full

3/4
1/2
3/4
1
1/4
1-1/2
2
L
79
79
92
111
120
152
172
200
H
61
61
65
79
95
103
118
132
Weights
Bolted
1.4
1.2
1.5
3.1
3.9
5.6
8.9
12.5
Welded
1.1
1.0
1.2
2.9
3.3
4.9
8.1
10.9

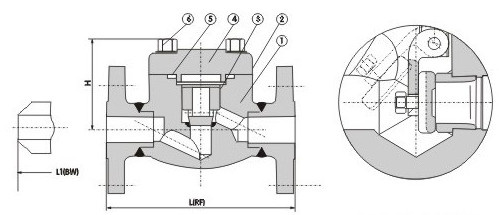

Flanged End Check Valve 150Lb~600Lb

Standard Material Specifications



NO.
Part Name
CS to ASTM
AS to ASTM
SS to ASTM
Type A105
Type F22
Type F304(L)
Type F316(L)
1
Body
A105
A182 F22
A182 F304(L)
A182 F316(L)
2
Nameplate
SS
3
Piston Disc
A276 420
A276 304
A276 304(L)
A276 316(L)
4
Bonnet
A105
A182 F22
A182 F304(L)
A182 F316(L)
5
Gasket
Corrueated SS + graphite
SS + PTFE
6
Bolt
A193 B7
A193 B16
A193 B8
A193 B8(M)
Suitable Medium
W.O.G.etc
W.O.G.etc
HNO3,CH3OOH etc
Suitable Temperature
-29 425
-29 550
-29 180

Note: Other materials are available upon request.

Flanged End Check Valve Dimensions (mm) and Weights (Kg)

NPS
1/2
3/4
1
1-1/4
1-1/2
2
L(RF)L1(BW)
150
108
117
127
140
165
203
300
152
178
203
216
229
267
600
165
190
216
229
241
292
H
150,300
61
61
79
95
103
118
600
61
79
95
103
118
135
Weights
150
RF
2.56
3.37
4.37
8.17
8.94
12.64
BW
1.70
1.90
2.10
5.12
5.50
7.89
300
RF
2.73
3.65
4.74
8.77
9.60
13.70
BW
1.90
2.10
3.00
5.12
6.60
7.85
600
RF
3.00
4.00
5.83
9.47
10.10
15.6
BW
2.00
3.12
4.25
7.25
8.56
13.60


Prod Model: H41H/H11H/H61H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Rating: Cl 150~Cl 1500
Size: 3/8"~2"
Structure: Elevated
Application: Industrial Usage
Material: A105.F304.F304L.F316.F316L.F11.F22.F5.F9
Connection Form: Threaded (Thd) / Butt Welded (Bw) / Socket Welded
Function: Stop Flowing Back
Sealing Form: Self Seals
Standard: API602
Yongjia Goole Valve Co., Ltd is a specialized and modernized company. As industrial valves, filters and pipe fittings supplier and project service provider, we are willing to provide you with high quality and perfect fluid control solutions, to create a new intelligent system with high efficient, energy saving and environmental protection characteristics, so as to help you make full use of your energy.

We manufacture and offer:

Safety relief valve(Our hot products, we have price & performance advantages about safety valves, and we can offer you the best price and quality you want): Spring loaded safety valve, high pressure and high temperature safety valve, pilot operated safety valve, DIN Standard Safety Valve, etc...

Pressure Reducing Valve: Pilot Operated reducing valves, Direct Acting and Bellow Type Reducing Valves. etc.

Steam Trap: Free Float steam trap, Lever Ball Float steam trap, thermodynamic and thermostatic steam trap, inverted bucket steam trap, etc.

Besides, Other valves and pipe fittings like DIN Bellow sealed globe valves, Y Type Strainer also can be offered by us.

Our products are widely used in petroleum, chemical, metallurgy, power stationand some other fields. We can also design and manufacture the non-standard products according to Customers' requirements.

Our Products are in strict accordance with ISO 9001 International Quality Management System. We also have a complete inspection system to ensure the quality of our products. From the Market Researching to Designing and developing, from the material purchasing to furnishing, inspection and testing, from delivery to after sale service, every step is processed under the Standard Management. In order to produce the superior industrial valve and let the national-made valve replace imported valve, we always stick to the following principles: Ensure the Quality for Survival, Ensure the Continuous Innovation for Development, and ensure the high efficient service for Customers' satisfaction.

We would like to serve our esteemed customers with superior products, reasonable price and complete sales services. We pledge we will be your most reliable business partner always.
