Port size: 3/8"-2"
Pressure: 150LB-800LB
Matetial: Carbon, stainless steel, Alloy steel and other material.
Work Temp Degree.: -196~500
Flange ends: ANSI B 16.5
1. BB
2. OS&Y - outside screw and yoke
3. Bolted Gland
4. Metal-graphite Spiral wound gasket between the Bonnet & Body
5. Graphite stem packing
6. Socket welding: ANSI B16.11
Screw ends: ANSI B1.20.1
Butt welding: ANSI B16.25

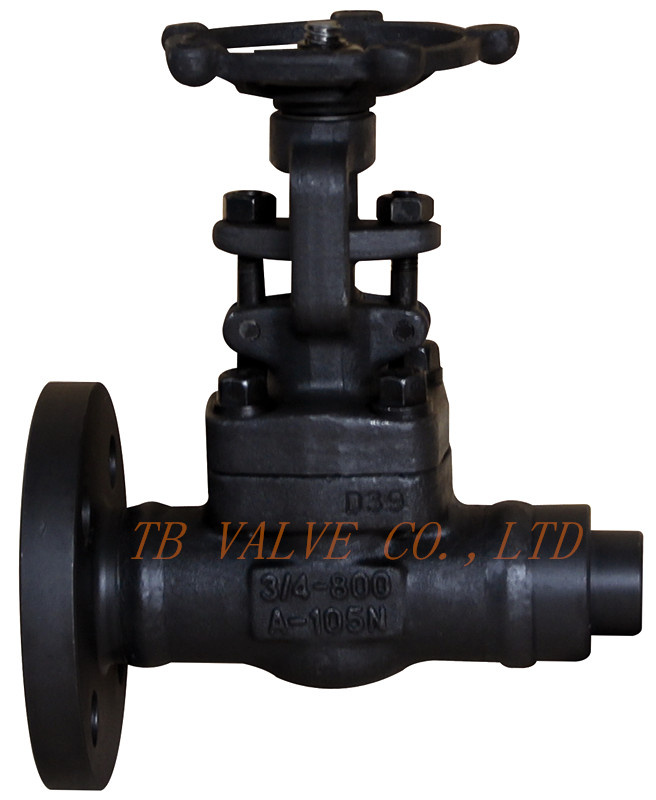

7. Forged Steel Gate Valves conform to API 602, BS5352 and ASME B 16.34. Each valve is inspected and tested in accordance with API 598, and marked per MSS SP25.
PART NAME |
CStoASTM |
AStoASTM |
SStoASTM |
|
A105 |
F22 |
F304L |
F316L |
BODY |
A105 |
A182 F22 |
A182F 304L |
A182 F316L |
SEAT |
A276 420 |
A276 304 |
A276 304L |
A276 316L |
WEDGE |
A182F 430&410 |
A182 F304 |
A182F 304L |
A182 F316L |
STEM |
A182 F6 |
A182 F304 |
A182F 304L |
A182 F316L |
GASKET |
316 WITH GRAPHITE |
316 WITH PTFE |
BONNET |
A105 |
A276 F304 |
A276F 304L |
A276 F316L |
BOLT |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
PIN |
A276420 |
A276 304 |
GLAND |
A276410 |
A182F 304L |
A182F F316L |
GLAND EYEBOLT |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
GLAND FLANGE |
A105 |
A182 F11 |
A182F 304L |
A182F 316L |
NUT |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
STEM NUT |
A276 420 |
LOCKING NUT |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
NAME PLATE |
SS |
HANDWHEEL |
A197 |
GASKET |
A473431 |
|
PACKING |
GRAPHIT |
PTFE
|
