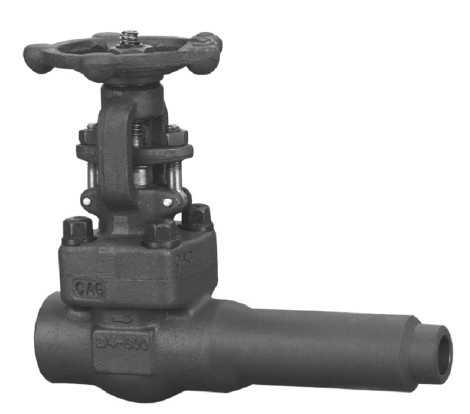

Trust forged steel extended body valves are available in two bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet with a threaded and seal welded joint. On request a full penetration strength welded joint is available.
Trust extended body valves conform to API602 and API606, each are tested according to API598, and marking is per MSS-SP-25.
Construction is as follows:
Two piece self-aligning packing gland
Integral extended body with threaded, socket or butt-weld connection.
Bolted bonnet with spiral-wound gasket or threaded and seal welded bonnet.
Integral backseat.
ASME B16.11, socket weld ends to ASMB B16.11.
ANSI/AMME B1.20.1. Screw ends ti ANSI/AME B1.20.1
Outside screw and yoke.
We produce Extended body gate valve 3/8''-2'' with 800Lb.
| Extended body gate valve 800Lb dimensions and weight |
| NPS | Conv | 3/8’’ | 1/2’’ | 3/4’’ | 1’’ | 1-1/4’’ | 1-1/2’’ | 2’’ |
| Full | / | 3/8’’ | 1/2’’ | 3/4’’ | 1’’ | 1-1/4’’ | 1-1/2’’ |
| L1 (mm) | 107.5 | 107.5 | 107.5 | 120 | 127 | 127 | 152 |
| L (mm) | 147 | 147 | 153.5 | 175.5 | 187 | 187 | 222 |
| H(Open) (mm) | 158 | 158 | 169 | 197 | 236 | 246 | 283 |
| W (mm) | 100 | 100 | 100 | 125 | 160 | 160 | 180 |
| Weight (kg) | Bolted | 3.1 | 2.9 | 3.4 | 5.5 | 7.8 | 8.3 | 13.4 |
| Welded | 2.8 | 2.6 | 3.1 | 5.1 | 7.4 | 7.6 | 12.1 |
