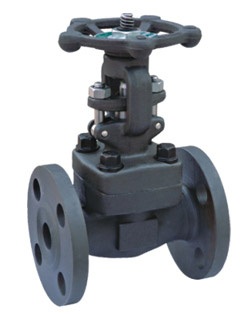

Forged Steel Flange Gate Valve (Z41H)
| Price: |
Negotiable/Piece |
| Trade Terms: |
others |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
Forged Steel Flange Gate Valve
Size: NPS 1/2"-2"
Class: 150Lb-2500Lb
Material: A105, LF2, F11, F22, F304, F304L, F316L, F316, F321, F5
Design & Manufacture: API602, ASME B16.34, BS5352
Pressure-Temperature Ratings: ASME B16.34
Face to Face Dimension: ASME B16.10
End Flange Dimension: ASME B16.5,
Inspection and Test: API598
Structure Type: OS&Y, B. B, Sigle Gate Disc
Type of Operation: Manual
More Product Features
| Prod Model: |
Z41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
Established in 1986, ZhangSheng Valve Co., Ltd (original name: Zhejiang Hengtong Valve Co., Ltd )has become a professional manufacturer and exporter of industrial valves in China with the best in quality and service. The company has two manufacturing plants, including one in Wenzhou, the other one in Lishui City, Zhejiang Province, covering an area of 21, 186 square meters.
with more than 20 years experience, ZHANGSHENG valves handle diverse applications in Metallurgy, Electricity, petroleum, Chemicals, Papermaking, iron and steel, coal gas, mine, Plumbing, sewage disposal, Pharmaceuticals industries.
Our main products
Range: Butterfly, ball, gate, knife gate valve, globe, check, plug, bellow sealed valve, cast iron valve etc.
Operations: Manual, gearbox, pneumatic, electronic, hydraulic, hydraulic-pneumatic
Size: NPS 1"~160"
Pressure: 0.25Mpa-32Mpa
Standards: ANSI, DIN, BS, JIS, GB etc.
Connection End: Flanged, wafer type, BW, SW, NPT, etc.
Materials: Cast/Forged Steel, Cast Ion, Stainless Steel, Alloy steel, Duplex Steel etc
All products are designed and manufactured fully comply with API, ANSI, JIS, DIN, BS, GB and other international standards, as well as customers' special requirements.
Quality Assurance
ZHAGNSHENG's Quality Assurance is dedicated to pursuit of zero defect valve, and this has resulted in the company having more quality qualifications than most of our competitors. ZHANGSHEGN is certified by ISO 9001, API6D, CE, AZ.
Our products are marketed in over thirty provinces and municipalities at home and also exported to Europe, America, Middle East, South East Asia, and so on, We have won great reputation from our customers. We aim at "Let ZHANGSHENG go global " and sincerely hope to build up friendly, cooperative and beneficiary relations with more clients.
