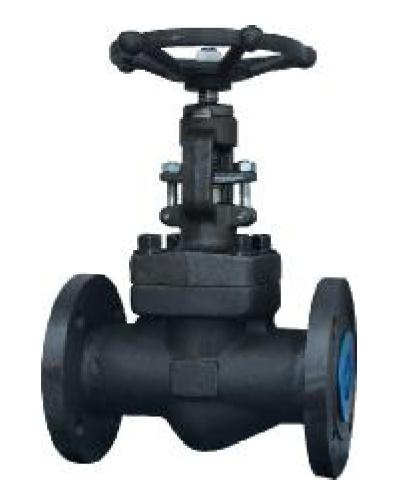

Forged Steel Flanged Bolted Bonnet Globe Valves 150lb, 300lb, & 600lb
Features
Intergral or Welded Flanges
Outside Screw and Yoke (OS&Y)
Two piece self aligning packing gland
Captured Graphite Spiral wound gasket
Integral backseat
Flange Dimensions ANSI B16.5
NACE MR-01-75
Options
Alternate Trims
Alternate Body Materials
Welded Seats
Standards
API-602
BS 5352
ANSI B16.34
API-598
MSS SP-25
Download Drawings
Bolted Bonnet
Select Drawing to DownloadF152F (150 lb) F302F (300 lb) F602F (600 lb)
Forged Stainless Select Drawing to DownloadFS152F (150 lb) FS302F (300 lb) FS602F (600 lb)
150 LB
Dimensions and Weights inches/lbs (millimeters/kgs)
NPS1/23/411 1/41 1/22
L4-1/4 (108)4-1/2 (117)5 (127)5-1/2 (140)6-1/2 (165)8 (203)
H (OPEN)6-1/2 (165)7 (180)8 (203)9 (228)10-1/4 (262)11-3/4 (300)
W4 (100)4 (100)5 (127)6-1/4 (160)6-1/4 (160)7 (180)
Weight8.8 (4)11.2 (5.1)16.7 (7.6)24.2 (11)27.5 (12.5)44.7 (20.3)
300 LB
Dimensions and Weights inches/lbs (millimeters/kgs)
NPS1/23/411 1/41 1/22
L6 (152)7 (180)8 (203)8-1/2 (216)9 (228)10-1/2 (267)
H (OPEN)6-1/2 (165)7 (180)8 (203)9 (228)10-1/4 (262)11-3/4 (300)
W4 (100)4 (100)5 (127)6-1/4 (160)6-1/4 (160)7 (180)
Weight10.6 (4.8)13.6 (6.2)20.5 (9.3)30.8 (14)34.1 (15.5)51.5 (23.4)
600 LB
Dimensions and Weights inches/lbs (millimeters/kgs)
NPS1/23/411 1/41 1/22
L6-1/2 (165)7-1/2 (190)8-1/2 (216)9 (228)9-1/2 (241)11-1/2 (292)
H (OPEN)7-1/2 (190)7-3/4 (195)9 (230)9-3/4 (245)10-1/4 (262)11-3/4 (300)
W4 (100)4 (100)5 (127)6-1/4 (160)6-1/4 (160)7 (180)
Weight13 (5.9)16.3 (7.4)22.9 (10.4)35.6 (16.2)38.5 (17.5)62.3 (28.3)
Established in 1996, Luofu Valve Group Zhejiang Zhonggong Valve Co., Ltd is located in Wenzhou City, Zhejiang P. R 325105, China.
Main Products:
1. API/ANSI Standard Valve: Butterfly Valve, Gate Valve, Safety Valve, Globe Valve, Check Valve, Ball Valve, Plug valve
2. DIN standard: Gate valve, globe valve, strainer
3. GB Standard: Butterfly Valve, Gate Valve, Safety Valve, Globe Valve, Check valve, Control Valve, Water Control Valve, ball valve, plug valve
4. Flange and strainer
5. Bellows type valve: Globe valve, safety valve, gate valve, strainer
Honors:
1. API 6D
2. ISO9001: 2000
3. CE Certificate
4. AZ Certificate
5. Invent Patent (Patent No.: ZL 99 1 13657.8)
6. Audited Supplier (Trustworthy Supplier Members on Made-in-China. com)
Nominal diameter (DN): 15-4500 mm(1/2"-180");
Nominal Pressure (PN): 1.0Mpa-32Mpa(150lb-3000lb);
Material of body: WCB, WC6, WC9, CF8, CE3, CF3M. CF8M, etc.
Standard: GB, DIN, JIS, ANSI, API
The company has excellent mechanical processing equipment and modernized inspection& testing equipments more than 66 sets.
Zhonggong Valve Co., Ltd is experienced in the design and manufacture of valves and enjoys a high reputation in the valve industry. Now it has become the material equipment company of SINOPEC, the first-class network supplier of China National Petroleum Corporation, the member unit of China Ocean Petroleum Corporation, Shengli Oil Field, China Water &Electric Power Company, etc.
