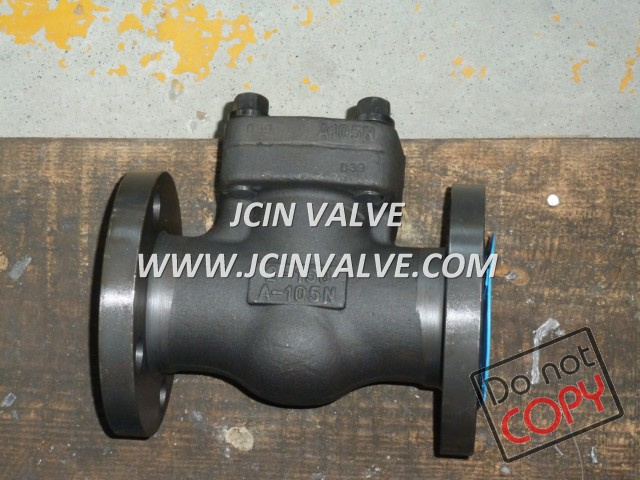

Forged steel Flanged Check Valve
Product Details:
Check valves are generally used to protect pumps or similar equipment, allowing the flow only in one direction and preventing flow reversal due to back pressure. The swing type check valves are designed to produce a low pressure drop in the pipeline. This design provides a tight seal as well as a fast reaction to the closure. Check valves are mainly used in the application of water, steam, oil, crude petroleum and petroleum products, and other nonaggressive fluids.
Applicable Standard
Design Standard: BS 5352
Face to Face: ASME B16.10
End Flange: ASME B16.5
Inspection and Test: API 598
Products Range
Size: 1/2" ~ 2"
Rating: ANSI 150lb-2500lb
Body Materials: A105,LF2,F11,F22,F304,F304L,F316,F316L,F321,F51 ,etc.
Design Features
Full port or reduced port design
Swing or Piston / lift type
Bolted bonnet, welded bonnet, or pressure sealed bonnet
Optional Y-type structure
JCIN VALVE is a leading manufacturer and supplier of valves for Oil, Gas, and Power Generation industries.
The main products include Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Dual Plate & Strainers, in forged or cast steel. Our product range starts from 1/2" and extends to 36" valves with pressure ratings ANSI / ASME Class 150 to 2500 Lbs, and DIN PN 16 to PN 100.
The highest quality and variety of used materials (Carbon Steels, Low Temperature Carbon Steel, Alloy Steels, Stainless Steels, and other special alloy steel according to ASTM & ASME) can satisfy all the requirements of the Chemical, Petrochemical and Power Plants, Oil and Gas, Off-Shore & On-Shore, Refining, Ship Building, Water Treatment & Energy Generation.
JCIN VALVE's annual sales include 80% for international market, which mainly exported to South Africa, Italy, Poland, Spain, and South America area, we are strive to become a global brand of industrial valve.
At JCIN VALVE, Our main target is to offer a high quality product and service to ensure the highest degree of satisfaction and fidelity of our customers.
JCIN VALVE---Your honest partner on Industrial valve.
