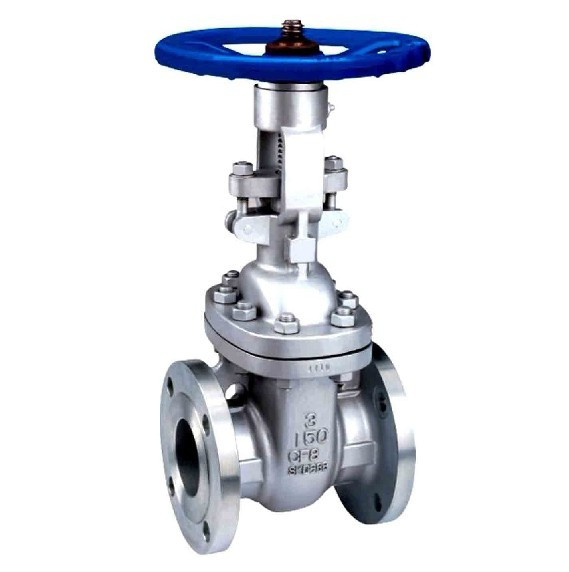

Forged steel flanged gate valve(Z41H)
This valve is suitable the nitric acid type pipeline which all opens all shuts, not use for throttle flow
Main parts and materials For Forged steel flanged gate valve(Z41H)
| Valve body | Stainless steel |
| Bonnet | Stainless steel |
| Disc | Stainless steel |
| Yoke nut | Stainless steel |
| Hand wheel | Brass |
Function and Specification of Forged steel flanged gate valve(Z41H)
| Type | Nominal pressure (MPa) | Testing pressure | Suitable temperature( ºC ) | Suitable medium |
| Strength(Water)(MPa) | Enclose(Water)(MPa) |
| Z41W-16P | 1.6 | 2.4 | 1.8 | ≤ 200 | Nitric Acid |
| Z41W-25P | 2.5 | 3.8 | 2.8 |
| Z41W-40P | 4.0 | 6.0 | 4.4 |
Manufacturing Process of Forged steel flanged gate valve(Z41H)
(01)Mold warehouse-----(02)Wax-----(03)Repair mold line ----(04)Wax polish ----(05) Tuple trees ----(06)Cast molding----(07)Dry-----(08) Dewaxing ----(09)Wax equipment ----(10) Smelting
Outline and connecting measurement of Forged steel flanged gate valve(Z41H)
| Type | Nominal diameter DN(mm) | Measurement(mm) | Reference weight(KG) |
| L | D | D1 | D2 | D3 | b-f | Z-Φd | H | H1 | H2 | D0 |
| Z41W-16P | 15 | 130 | 95 | 65 | 46 | | 14-2 | 4×14 | 175 | | | 120 | 3.38 |
| 20 | 150 | 105 | 75 | 56 | | 16-2 | 4×14 | 180 | | | 140 | 4.18 |
| 25 | 160 | 115 | 85 | 65 | | 16-2 | 4×14 | 210 | | | 160 | 5.52 |
| 32 | 180 | 140 | 100 | 76 | | 18-2 | 4×18 | 280 | | | 180 | 7.72 |
| 40 | 200 | 150 | 110 | 84 | | 18-2 | 4×18 | 350 | | | 200 | 9.52 |
| 50 | 250 | 165 | 125 | 99 | | 20-2 | 4×18 | 358 | | | 240 | 13.94 |
| 65 | 270 | 185 | 145 | 118 | | 20-2 | 4×18 | 375 | | | 240 | 18.94 |
| 80 | 280 | 200 | 160 | 132 | | 20-2 | 8×18 | 433 | | | 280 | 23.68 |
| 100 | 300 | 220 | 180 | 156 | | 22-2 | 8×18 | 502 | | | 320 | 29.8 |
| 125 | 325 | 250 | 210 | 184 | | 22-2 | 8×18 | 612 | | | 360 | 44.5 |
| 150 | 350 | 285 | 240 | 211 | | 24-2 | 8×22 | 676 | | | 360 | 58.7 |
| 200 | 400 | 340 | 295 | 266 | | 24-2 | 12×22 | 820 | | | 400 | 91.1 |
| 250 | 450 | 405 | 355 | 319 | | 26-2 | 12×26 | 969 | | | 450 | 143 |
| 300 | 500 | 460 | 410 | 370 | | 28-2 | 12×26 | 1142 | | | 560 | 181 |
| 350 | 550 | 520 | 470 | 429 | | 30-2 | 12×26 | 1280 | | | 640 | 270.8 |
| 400 | 600 | 580 | 525 | 480 | | 32-2 | 16×30 | 1452 | | | 640 | 366 |
| Type | Nominal diameter DN(mm) | Measurement(mm) | Reference weight(KG) |
| L | D | D1 | D2 | D3 | b-f | Z-Φd | H | H1 | H2 | D0 |
| Z41W-25P | 15 | 130 | 95 | 65 | 46 | | 14-2 | 4×14 | 175 | | | 120 | 3.38 |
| 20 | 150 | 105 | 75 | 56 | | 16-2 | 4×14 | 180 | | | 140 | 4.18 |
| 25 | 160 | 115 | 85 | 65 | | 16-2 | 4×14 | 210 | | | 160 | 5.52 |
| 32 | 180 | 140 | 100 | 76 | | 18-2 | 4×18 | 280 | | | 180 | 7.72 |
| 40 | 200 | 150 | 110 | 84 | | 18-2 | 4×18 | 350 | | | 200 | 9.52 |
| 50 | 250 | 165 | 125 | 99 | | 20-2 | 4×18 | 358 | | | 240 | 13.94 |
| 65 | 270 | 185 | 145 | 118 | | 22-2 | 8×18 | 375 | | | 240 | 18.94 |
| 80 | 280 | 200 | 160 | 132 | | 24-2 | 8×18 | 433 | | | 280 | |
| 100 | 300 | 235 | 190 | 156 | | 24-2 | 8×22 | 502 | | | 320 | |
| 125 | 325 | 270 | 220 | 184 | | 26-2 | 8×26 | 612 | | | 360 | |
| 150 | 350 | 300 | 250 | 211 | | 28-2 | 8×26 | 676 | | | 360 | |
| 200 | 400 | 360 | 310 | 274 | | 30-2 | 12×26 | 820 | | | 400 | |
| 250 | 450 | 425 | 370 | 330 | | 32-2 | 12×30 | 969 | | | 450 | 167.3 |
| 300 | 500 | 485 | 430 | 389 | | 34-2 | 16×30 | 1142 | | | 560 | 230 |
| 350 | 550 | 555 | 490 | 448 | | 38-2 | 16×33 | 1280 | | | 640 | 330 |
| 400 | 600 | 620 | 550 | 503 | | 40-2 | 16×36 | 1452 | | | 640 | 434.4 |
| Type | Nominal diameter DN(mm) | Measurement(mm) | Reference weight(KG) |
| L | D | D1 | D2 | D3 | b-f | Z-Φd | H | H1 | H2 | D0 |
| Z41W-40P | 15 | 130 | 95 | 65 | 46 | 40 | 14-4 | 4×14 | 175 | | | 120 | |
| 20 | 150 | 105 | 75 | 56 | 51 | 16-4 | 4×14 | 180 | | | 140 | |
| 25 | 160 | 115 | 85 | 65 | 58 | 16-4 | 4×14 | 210 | | | 160 | |
| 32 | 180 | 140 | 100 | 76 | 66 | 18-4 | 4×18 | 280 | | | 180 | |
| 40 | 200 | 150 | 110 | 84 | 76 | 18-4 | 4×18 | 350 | | | 200 | |
| 50 | 250 | 165 | 125 | 99 | 88 | 20-4 | 4×18 | 372 | | | 250 | |
| 65 | 280 | 185 | 145 | 118 | 110 | 22-4 | 8×18 | 395 | | | 280 | |
| 80 | 310 | 200 | 160 | 132 | 121 | 24-4 | 8×18 | 457 | | | 300 | |
| 100 | 350 | 235 | 190 | 156 | 150 | 24-4.5 | 8×22 | 552 | | | 350 | |
| 125 | 400 | 270 | 220 | 184 | 176 | 26-4.5 | 8×26 | 634 | | | 400 | |
| 150 | 450 | 300 | 250 | 211 | 204 | 28-4.5 | 8×26 | 708 | | | 450 | |
| 200 | 550 | 375 | 320 | 284 | 260 | 34-4.5 | 12×30 | 858 | | | 500 | |
| 250 | 650 | 450 | 385 | 345 | 313 | 38-4.5 | 12×33 | 1015 | | | 560 | |
| 300 | 750 | 515 | 450 | 409 | 364 | 42-4.5 | 16×33 | 1203 | | | 640 | |
| 350 | 850 | 580 | 510 | 465 | 422 | 46-5 | 16×36 | 1341 | | | 640 | |
| 400 | 950 | 660 | 585 | 535 | 474 | 50-4 | 16×39 | 1492 | | | 720 | |
Advantage of Hebei Shanghan
| 1,Professional in Standard series Valves |
| 2,Free sample |
| 3,Factory quality certificate ISO9001 & 14001 |
| 4, We are factory for the Russian standard flanged pn16 stem gate valve, casting, machining, painting, delivery process are completed. |
| 5,OEM service is accepted, Customer's logo or label accepted |
| 6,Delivery on time once we accept your order |
| 7,CNC lathe in the workshop with 8 machining assembly line |
| 8,Resin and coated sand casting technology owned by ourselves |
| 9, We have the IF electric furnace support the casting parts for the russian standard stem gate valve. |
| 10, Heat treatment equipment to ensure the valve quality, must will no any deformation on valve body. |
| 11,Twice strict water pressure test and air pressure test before the valve been put in storage and before delivery |
| 12, Middle and high class products to support the customers' different requirement. (light and pound grade) |
| 13,Packing & transporation changed according to your request |
| 14,Produce the products according to your drawings that will be most satisfy you |
