NVF valves are available in three bonnet designs. The first design is the bolted bonnet, with male-female joint, spiral wound gasket, made in F304+flexible graphite. Ring joint gasket are also available on request. The second design is the welded bonnet, with a threaded and seal welded joint. On request a full penetration strengh welded joint is available. The thrid design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
Standards:
--Full port or reduced port;
--Outside screw and yoke (OS&Y);
--Two piece self - aligning packing gland;
--Bolted bonnet & spiral wound gasket seal bonnet;
--Threaded and seal welded bonnet or threaded and pressure seal bonnet;
--Integral back seat;
--Socket weld ends to ASME B16.11;
--Screwed end (NPT) to ANSI/ASME B1.20.1

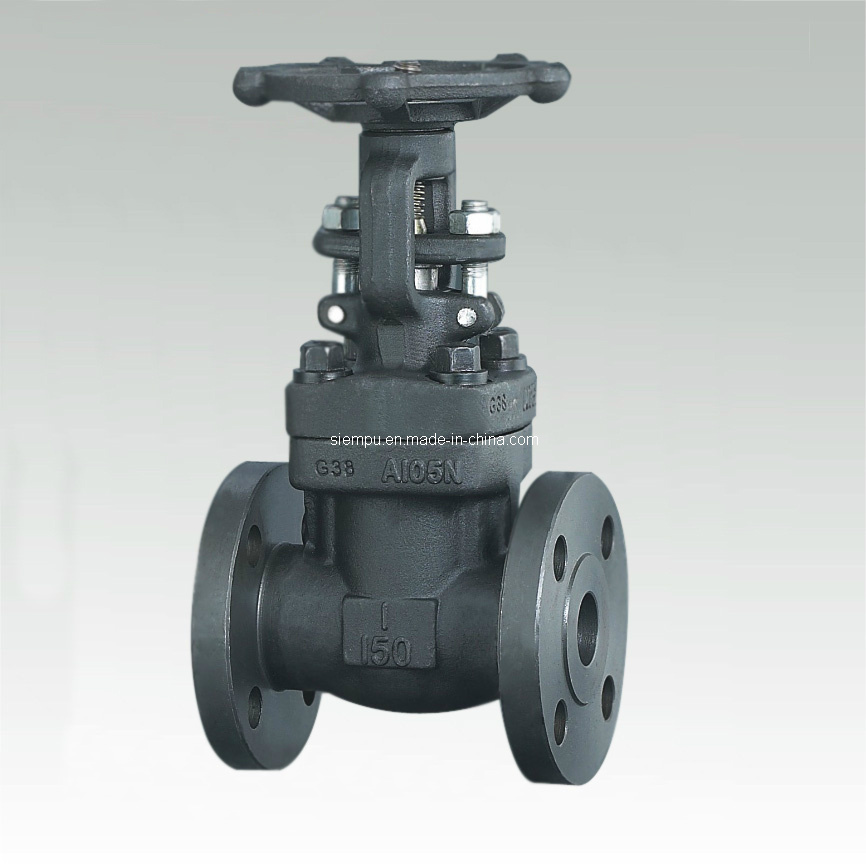

Product Name: Forging Steel Gate Valve
Place of Origin: China
Features:
1) Size: 1/2" - 2";
2) Class: 150 - 2, 500lbs;
3) Design and manufacture: API 602, BS5352, ANSI B16.34;
4) Connection ends:
A) Socket welded dimension conforms to ANSI B16.11;
B) Screw ends dimension conforms to ANSI B1.20.1;
C) Butt-welded conforms to ANSI B16.25;
D) Flanged ends conforms to ANSI B16.5;
5) Test and inspection conforms to API598 and API 6D;
6) Structure features:
A) Bolted bonnet, outside screw and yoke(OS&Y);
B) Welded bonnet, outside screw and yoke(OS&Y)
7) Materials: A105, LF2, F11, F22, F5, F304, F304L, F316, F316L, etc.
8) Operated by: Handwheel
We can supply a wide range of butterfly valves, gate valves, globe valves, check valves, ball valves, safety & relief valves, plug valve, forged steel valve, strainers, hydraulic control valves, and pressure reducing valves.
