Product Specifications:
1. Size: 1/2"~10" (DN15 - DN250).
2. Pressure: 150~600LB (PN10 - PN100).
3. Material: Carbon Steel, Stainless Steel, Alloy Steel.
4. Suitable Temperature: -196 ~450degrees ( Different temperature choose different materials).
5. Operation: Lever, Worm wheel, Pneumatic, Electric, Hydraulic.
6. Suitable Medium: Water, Steam, Oil and natural gas etc.
Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351, DIN 3357, EN 12516.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10, API 6D, EN 558-1.
4. Flange standard: ASME B16.5, DIN 2501.
5. Butt welded Ends: ASME B16.25.
6. Fire Safe Design: API 6FA, API 607.
7. Test & Inspect standard: API 598, API 6D, EN 12266.
Product Feature:

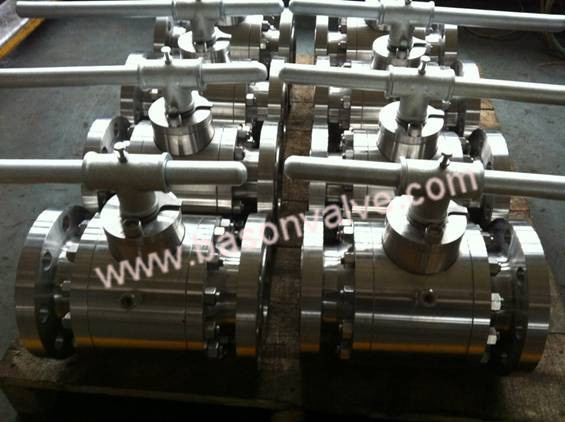

1. Floating ball, full bore or reduce bore.
2. Blow-out proof stem design.
3. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
4. Fire Safe and anti-static design if need.
5. Cavity pressure self relief.
6. Optional locking device.
Bason Valve Co., Ltd provides an diversity of valves' production and ODM & OEM manufacturing, these valves are widely used in Oil & Gas, Power, Chemical, Mine, Power Plants, Mining and other allied fields. All our products and quality management procedures are in accordance with ISO 9001. Our wide range of products includes:
1. Floating / Trunnion Ball valves.
2. API 600 / 602 / 603 Gate, Globe, Check valves.
3. API 594 Dual plate check valves.
4. API 609 Butterfly Valves
5. Cryogenic Valves: Used in extreme low temperature services, such as LNG & LPG, Oxygen Gas Industry.
6. Special Alloy Valves: Some of the Materials we offer are Titanium, Monel, Hastelloy, Alloy 20, Duplex/Super Duplex Steel.
7. Other valve accessories, such as pipe fittings, flanges, gaskets etc.
Size: 1/2"~48" (DN20 to 1200)
Rating: Class150 - 2500 (PN10-PN420)
Temperature: -196 to +650 degree
Connection End: Flanged, BW, SW, NPT, Wafer type etc.
Testing:
According to API598.
Non-Destructive Testing: X-ray Testing, UT Testing, Magnetic Particle testing, Dye Penetration Test
Destructive Testing: Impact Testing
Our mission is to assist our customers in obtaining the best possible solutions to their requirements and needs, at the most advantageous prices, without compromising on delivery or quality. With this in mind, we believe in developing long terms relationships based on mutual trust and honesty.
