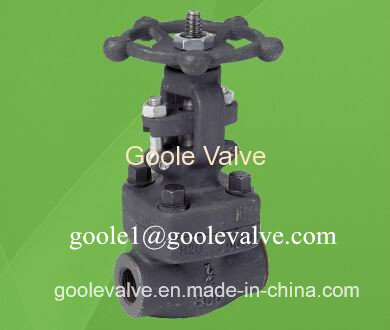

Forged Steel Gate Valve (GAZ41H/GAZ61H/GAZ11H)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Products Introduction Forged steel gate valve are used to cut or connect the pipe media under nominal pressure between class 150 class 1500, working temperatures 600 .in oil industry. Chemical industry, fossil fired power plants. Technical parameters. Connection: threaded (THD) / butt welded (BW) / socket welded (SW)Pressure Rating: 150lb- 1500lbSpecification: 3/8"- 2"Material: A105.F304.F304L.F316.F316L.F11.F22.F5.F9Executive Standard: API602 Note: The dimension of the connecting end can be designed according to customers special requirements.
| Prod Model: |
GAZ41H/GAZ61H/GAZ11H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Rating: |
Cl 150~Cl1500 |
| Size: |
3/8"~2" |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Industrial Usage |
| Material: |

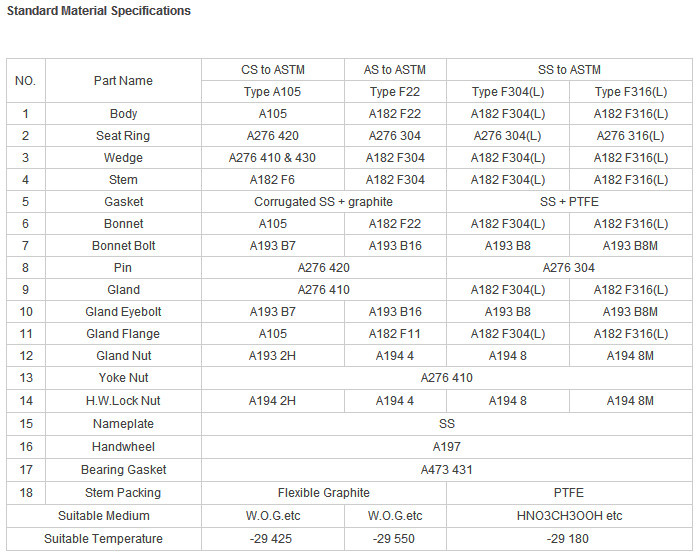

A105.F304.F304L.F316.F316L.F11.F22.F5.F9 |
| Connection Form: |
Threaded (Thd) / Butt Welded (Bw) / Socket Welded |
| Actuator: |
Manual/Electric/Pneumatic |
| Standard: |
API602 |
Yongjia Goole Valve Co., Ltd is a specialized and modernized company. As industrial valves, filters and pipe fittings supplier and project service provider, we are willing to provide you with high quality and perfect fluid control solutions, to create a new intelligent system with high efficient, energy saving and environmental protection characteristics, so as to help you make full use of your energy.
We manufacture and offer:
Safety relief valve(Our hot products, we have price & performance advantages about safety valves, and we can offer you the best price and quality you want): Spring loaded safety valve, high pressure and high temperature safety valve, pilot operated safety valve, DIN Standard Safety Valve, etc...
Pressure Reducing Valve: Pilot Operated reducing valves, Direct Acting and Bellow Type Reducing Valves. etc.
Steam Trap: Free Float steam trap, Lever Ball Float steam trap, thermodynamic and thermostatic steam trap, inverted bucket steam trap, etc.
Besides, Other valves and pipe fittings like DIN Bellow sealed globe valves, Y Type Strainer also can be offered by us.
Our products are widely used in petroleum, chemical, metallurgy, power stationand some other fields. We can also design and manufacture the non-standard products according to Customers' requirements.
Our Products are in strict accordance with ISO 9001 International Quality Management System. We also have a complete inspection system to ensure the quality of our products. From the Market Researching to Designing and developing, from the material purchasing to furnishing, inspection and testing, from delivery to after sale service, every step is processed under the Standard Management. In order to produce the superior industrial valve and let the national-made valve replace imported valve, we always stick to the following principles: Ensure the Quality for Survival, Ensure the Continuous Innovation for Development, and ensure the high efficient service for Customers' satisfaction.
We would like to serve our esteemed customers with superior products, reasonable price and complete sales services. We pledge we will be your most reliable business partner always.
