Basic Info.
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position of Valve Rod: Inside Gate Valve
Export Markets: Global
Additional Info.
Trademark: Common trade
Packing: Plywood Case
Standard: API, DIN
Origin: China
HS Code: 84818010
Production Capacity: 50000 PCS/year
Product Description

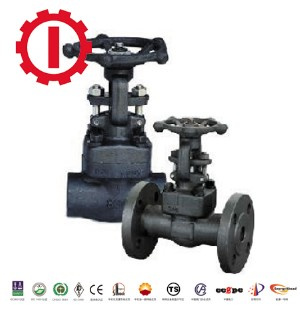

Forged steel gate valve are available in three bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
Gate valve Design construction and Specification.
Trust gate valve conform to API602, BS5352 and ASME B16.34. Each are tested according to API598, and marking is per MSS SP-25.
Construction is as follows:
Full port or Conventional port
OS&Y, Outside screw and Yoke
Two piece self aligning packing gland
Bolted bonnet with spiral-wound gasket, threaded and seal welded bonnet or threaded and pressure seal bonnet.
Integral backseat
ASME B16.11 Socket weld ends to ASME B16.11
Screwed ends to ANSI/ASMEB 1.20.1
We produce:
1) Gate valve with 800Lb, 900-1500Lb.
2) Pressure-seal gate valve with 900-1500Lb.
Jinggong Valve Factory is one of the leading valve manufactures in China which was established in 1978. It can offer a wide variety of materials and sizes of valves which was extensively used in petroleum field, energy field, metallurgy, chemical industry, power station and so on, including the butterfly valve, ball valve, globe valve, gate valve, check valve, needle valve, control valve, knife gate valve, bellows valve and other special valves. The main materials of valve body are ductile iron (for gas valve), cast and forged carbon steel, high-temperature alloy steel and anti-corrosive austenitic stainless steel etc. Its nominal diameter is 1/8"-80" and nominal pressure is 150lb-2500lb.
Meanwhile, our products had acquired national pressure pipeline AZ authentication, API6D, CE certification and ISO9001 standard in Moreover, our factory is one of the members of Materials Source Market of Sinopec, Supplying Network of valves of National Power Systems, the firs rate supplying network of high-MID pressure valves of CNPC, China General Machinery Valve Industry Association, Wenzhou Pump & Valve Association and Scientific & Technological Information Network of Machinery Industry Valve.
Our works had got the right to import and export, thus ours products had exported to many countries, such as the Africa, Europe, South Asia, Japan, North America, Middle East, etc. Accordingly, we had earned good reputation between our clients in those countries for ours high quality, competitive price and excellent after sale services.
We adhere to two F, that is "Credibility First, Quality First". We endeavor to continuously supplying our best quality and efficient services to all of our customers and giving every user and consumer in the world a chance of enjoying the benefits of our cooperation. All your inquiries will be met with a quick response and courteous welcome.
