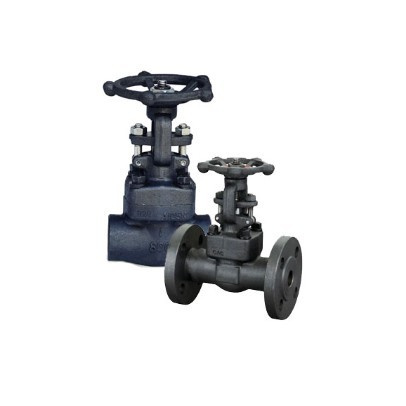

Forged steel gate valve are available in three bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304/graphite. Ring joint gasket are also available on request. The second design is the welded bonnet with a threaded and seal welded joint. On request a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
Gate valve Design construction and Specification.
Trust gate valve conform to API602, BS5352 and ASME B16.34. Each are tested according to API598, and marking is per MSS SP-25.
Construction is as follows:
Full port or Conventional port
OS&Y, Outside screw and Yoke
Two piece self aligning packing gland
Bolted bonnet with spiral-wound gasket, threaded and seal welded bonnet or threaded and pressure seal bonnet.
Integral backseat
ASME B16.11 Socket weld ends to ASME B16.11
Screwed ends to ANSI/ASMEB 1.20.1
We produce:
1) Gate valve with 800Lb, 900-1500Lb.
2) Pressure-seal gate valve with 900-1500Lb.
Zhejiang Zhongcheng Valve Co., Ltd. is a professional manufacturer of parallel slide valves, eject valves and knife gate valves. Through years' development and innovation, the company is now experienced in manufacture and development, becoming a large-scale modern enterprise. Advanced management system and production facility and well-organized, complete means of testing and inspection are the assurance of top product quality. The company carries out production in strict accordance with GB in China, API in US, and DIN in Germany. The knife gate valves, parallel slide valves, and eject valves present a fine solution regarding abrasion resistance against solid, powder and sludge mediums in such sectors including electricity generation, petrochemical industry, chemical industry, papermaking, urban construction, sewage disposal, environmental protection, metallurgy, cement industry, etc.
The principal materials for the products include cast iron, cast steel, carbon steel, and stainless steel. The mode of drive includes manual transmission, gear transmission, pneumatic transmission, and motor transmission. The products are widely used in such sectors including petroleum industry, chemical industry, papermaking, alkali industry, etc. High remarks have been received from clients and dealers.
When facing both opportunities and challenges in this new century, Zhongcheng is providing satisfying products with top class quality and services. We sincerely welcome friends from home and abroad for business discussion and for a brilliant future jointly.
