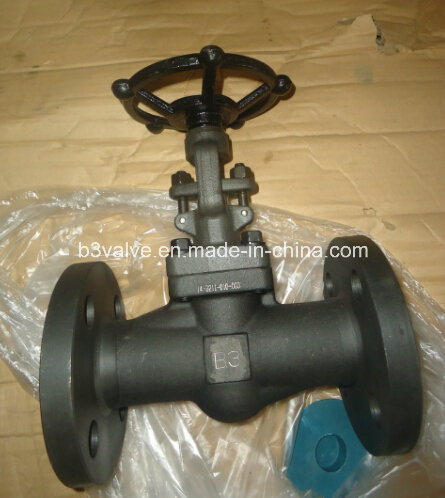

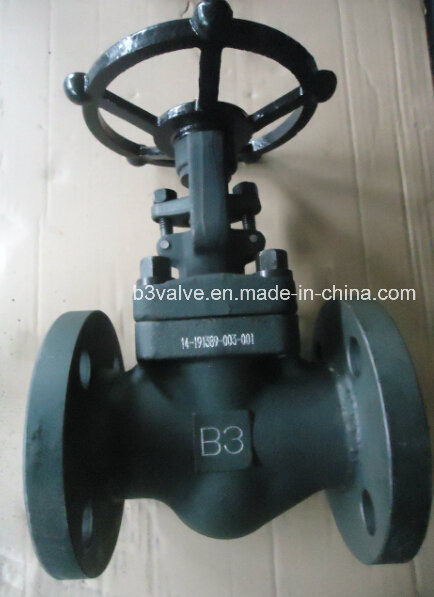

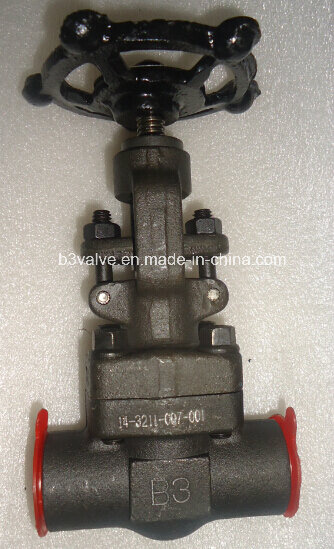

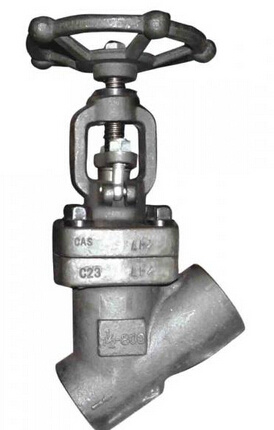

B3 forged steel globe valves are designed and manufactured to provide maximum service life and dependability. Forged globe valves can be full port or reduced port as per requirements of customers. Valves are available in a complete range of body/bonnet materials and trims.
Applicable Standard| Design Standard | API 602, ASME B16.34, BS 5352, DIN3352 |
| Face to Face | ASME B16.10, EN 558, DIN3202 |
| End Flange | ASME B16.5, DIN2533 |
| Butt welding Ends | ASME B16.25, DIN3239 |
| Socket Welded Ends | ASME B16.11 |
| Threaded Ends | ASME B1.20.1 |
| Inspection and Test | API 598, DIN 3202 |
Products RangeSize: 1/2" ~ 2" (DN15 ~ DN50)
Rating: ANSI 150lb ~ 2500lb (PN 1.0 ~ PN 64)
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Per API 600
Operation: Handwheel
B3 VALVE Group Company is a leading manufacturer of industrial valves in China. All products are designed and manufactured completely as per international standards and selling them well in global markets. Today, more than 90% of our valves are exported to Western European countries, North America, Japan, Middle East of Asia, Australia, etc, and widely used in the fields as Oil & Gas, Refinery, Chemical and Petrochemical, Power Generation, Water and waste water treatment industrial, etc.
We keep in mind that for valves, quality is always the most important. In order to make sure that our customers receive good quality products, we have established strict quality control systems. Now our factories are certified by ISO9001, API6D, CE, AZ, etc. As castings/forgings are the key point for valves quality, all our subcontracted foundries/forging plants are also CE certified and pre-audited to be approved by our own inspectors.
Nowadays, B3 VALVE has over 30 quality control engineers and more than 200 skilled workers. All valves are produced as per relevant international standards. We have labs for material chemical composition analysis and quality examination equipments, such as RT, UT, MT, PT, Fire-safe test etc to guarantee all material tests and each valve should be pressure tested to be satisfactory before delivery. Material test report and pressure test report as per EN 10204 3.1. B will be supplied with our valves.
Concerning quality guarantee, our usual guarantee period is 18 months from delivery date, we can guarantee that our valve will work well in their life circle and we will be responsible for any valves we sold. Our aim is to produce "zero leakage" and "long reliable service life" valves to minimum the "Total Costs".
We always devote to provide the first class valve product and services of fine character and high ratio of performance-price for the current industry. We also know we need to have a whole set of strong and high effective quality management system in order to assure the high character of the products, meanwhile we make solemn quality promises to all of our products with high responsible attitude, ensure its products to be in compliance with international and area relative product standards, meet the requirements of the current industry.
So all our valve products are designed strictly according to the international newest product standards and continuously improve and upgrade designing ideal, manufacturing process, quality management level in order to realize the quality promises and always make B3 VALVE to be the first class valve manufacturer and solution provider both domestically and abroad.
