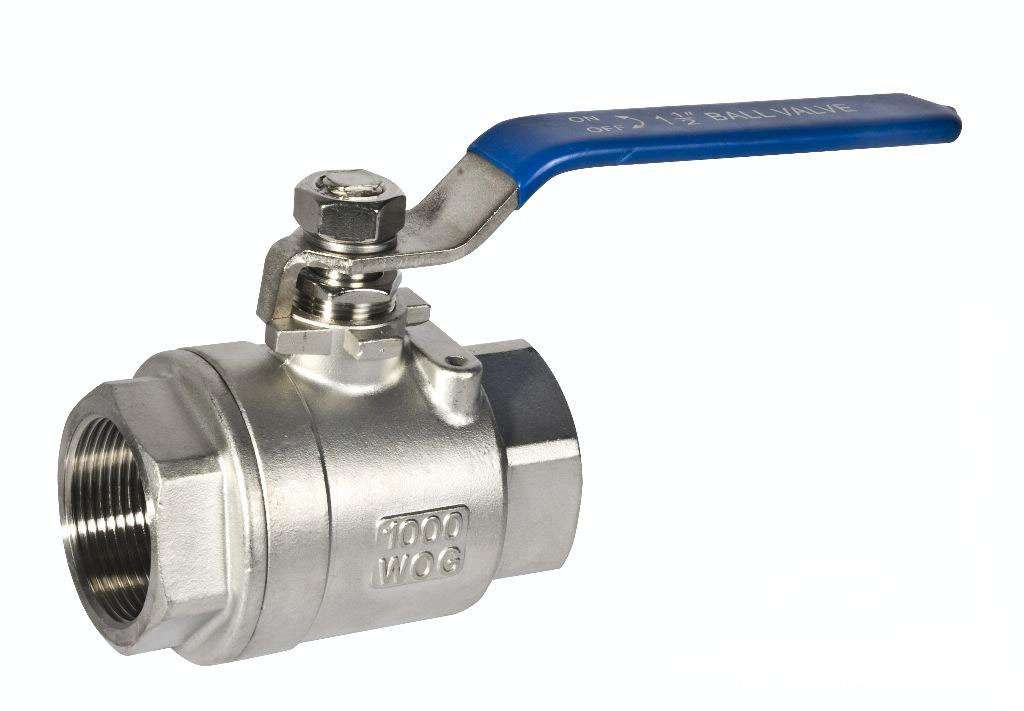

Forged Steel High Pressure Ball Valve
This valve applies to the water, steam or oil pipeline which is noncorrosive medium and the pipeline must be the working temperature ≤ 200 ºC
Main parts and materials For Forged Steel High Pressure Ball Valve
| Valve body | WCB |
| Ball | Stainless steel |
| Stem | Stainless steel |
| Seal ring | F4,Stainless steel |
Function and Specification of Forged Steel High Pressure Ball Valve
| Type | Nominal pressure (MPa) | Testing pressure | Suitable temperature( ºC ) | Suitable medium |
| Strength(water)(MPa) | Enclose(Water)(MPa) |
| Q347F-16C | 1.6 | 2.4 | 1.8 | ≤ 200 | Water,Vapour,Oil |
| Q347F-25 | 2.5 | 3.8 | 2.8 |
| Q347F-40 | 4.0 | 6.15 | 4.51 |
| Q347F-64 | 6.4 | 9.75 | 7.15 |
Manufacturing Process of Forged Steel High Pressure Ball Valve
(01)Mould warehouse-----(02)Wax-----(03)Repaire mould line ----(04)Wax polish ----(05) Tuple trees ----(06)Cast molding----(07)Dry-----(08) Dewaxing ----(09)Wax equipment ----(10) Smelting
Outline and connecting measurement of Forged Steel High Pressure Ball Valve
| Type | Nominal diameter DN(mm) | Measurement(mm) | Reference weight(KG) |
| L | D | D1 | D2 | D3 | b-f | Z×Φd | H | H1 | H2 | D0 |
| Q347F-16C | 40 | 165 | 145 | 110 | 85 | | 16-3 | 4×Φ18 | | | 95 | | 9 |
| 50 | 178 | 160 | 125 | 100 | | 16-3 | 4×Φ18 | | | 107 | | 15 |
| 65 | 190 | 180 | 145 | 120 | | 18-3 | 4×Φ18 | | | 142 | | 19 |
| 80 | 285 | 195 | 160 | 135 | | 20-3 | 8×Φ18 | | | 152 | | 30 |
| 100 | 305 | 220 | 180 | 156 | | 22-2 | 8×Φ18 | | | 178 | | 40 |
| 125 | 381 | 250 | 210 | 184 | | 22-2 | 8×Φ18 | | | 252 | | 65 |
| 150 | 403 | 285 | 240 | 211 | | 24-2 | 8×Φ22 | | | 272 | | 85 |
| 200 | 502 | 340 | 295 | 266 | | 24-2 | 12×Φ22 | | 335 | 398 | | 153 |
| 250 | 568 | 405 | 355 | 319 | | 28-2 | 12×Φ26 | | 385 | 495 | | 190 |
| 300 | 648 | 460 | 410 | 370 | | 30-4 | 12×Φ26 | | 430 | 580 | | 230 |
| 350 | 686 | 520 | 470 | 435 | | 34-4 | 16×Φ30 | | 470 | 625 | | 290 |
| 400 | 762 | 580 | 525 | 485 | | 36-4 | 16×Φ30 | | 590 | 720 | | 350 |
| Type | Nominal diameter DN(mm) | Measurement(mm) | Reference weight(KG) |
| L | D | D1 | D2 | D3 | b-f | Z×Φd | H | H1 | H2 | D0 |
| Q347F-25 | 40 | 190 | 145 | 110 | 85 | | 18-3 | 4×Φ18 | | 170 | 95 | | 9 |
| 50 | 216 | 160 | 125 | 100 | | 20-3 | 4×Φ18 | | 170 | 107 | | 15 |
| 65 | 241 | 180 | 145 | 120 | | 22-3 | 8×Φ18 | | 180 | 142 | | 19 |
| 80 | 283 | 195 | 160 | 135 | | 24-3 | 8×Φ18 | | 200 | 152 | | 30 |
| 100 | 305 | 235 | 190 | 156 | | 24-2 | 8×Φ22 | | 230 | 178 | | 40 |
| 125 | 381 | 270 | 220 | 188 | | 28-2 | 8×Φ26 | | 250 | 366 | | 65 |
| 150 | 403 | 300 | 250 | 211 | | 28-2 | 8×Φ26 | | 300 | 405 | | 85 |
| 200 | 502 | 360 | 310 | 278 | | 34-2 | 12×Φ26 | | 335 | 482 | | 153 |
| 250 | 568 | 425 | 370 | 330 | | 32-2 | 12×Φ30 | | 335 | 590 | | 347 |
| 300 | 648 | 485 | 430 | 389 | | 34-2 | 16×Φ30 | | 385 | 625 | | 437 |
| 350 | 762 | 550 | 490 | 448 | 422 | 44-4 | 16×Φ34 | | 430 | 625 | | 310 |
| 400 | 838 | 610 | 550 | 515 | 474 | 48-4 | 16×Φ34 | | 470 | 720 | | 380 |
| Type | Nominal diameter DN(mm) | Measurement(mm) | Reference weight(KG) |
| L | D | D1 | D2 | D3 | b-f | Z×Φd | H | H1 | H2 | D0 |
| Q347F-40 | 40 | 190 | 145 | 110 | 85 | 76 | 18-3 | 4×Φ18 | | | 95 | | 15 |
| 50 | 216 | 160 | 125 | 100 | 88 | 20-3 | 4×Φ18 | | | 107 | | 15 |
| 65 | 241 | 180 | 145 | 120 | 110 | 22-3 | 8×Φ18 | | | 142 | | 42 |
| 80 | 283 | 195 | 160 | 135 | 121 | 22-3 | 8×Φ18 | | | 152 | | 42 |
| 100 | 305 | 230 | 190 | 160 | 150 | 24-3 | 8×Φ23 | | | 178 | | 68 |
| 125 | 381 | 270 | 220 | 188 | 176 | 28-3 | 8×Φ25 | | | 252 | | 108 |
| 150 | 403 | 300 | 250 | 218 | 204 | 30-3 | 8×Φ25 | | | 272 | | 140 |
| 200 | 502 | 375 | 320 | 282 | 260 | 38-3 | 12×Φ30 | | | 398 | | 153 |
| 250 | 568 | 445 | 385 | 345 | 313 | 42-3 | 12×Φ34 | | 283 | 495 | | 200 |
| 300 | 648 | 510 | 450 | 408 | 364 | 46-4 | 16×Φ34 | | 380 | 580 | | 240 |
| 350 | 762 | 570 | 510 | 465 | 422 | 52-4 | 16×Φ34 | | 425 | 625 | | 310 |
| 400 | 838 | 655 | 585 | 535 | 474 | 58-5 | 16×Φ41 | | 492 | 720 | | 380 |
| Type | Nominal diameter DN(mm) | Measurement(mm) | Reference weight(KG) |
| L | D | D1 | D2 | D3 | b-f | Z×Φd | H | H1 | H2 | D0 |
| Q347F-64 | 40 | 241 | 165 | 125 | 95 | 76 | 24-3 | 4×Φ23 | | | 95 | | 15 |
| 50 | 292 | 175 | 135 | 105 | 88 | 26-3 | 4×Φ23 | | | 107 | | 19 |
| 65 | 330 | 200 | 160 | 130 | 110 | 28-3 | 8×Φ23 | | | 142 | | 42 |
| 80 | 356 | 210 | 170 | 140 | 121 | 30-3 | 8×Φ23 | | | 152 | | 50 |
| 100 | 432 | 250 | 200 | 168 | 150 | 32-3 | 8×Φ25 | | | 178 | | 68 |
| 150 | 660 | 340 | 280 | 240 | 204 | 38-3 | 8×Φ34 | | | 272 | | 108 |
| 200 | 787 | 405 | 345 | 300 | 260 | 44-3 | 12×Φ34 | | | 398 | | 140 |
| 250 | 838 | 470 | 400 | 352 | 313 | 48-3 | 12×Φ41 | | 283 | 445 | | 220 |
| 300 | 889 | 530 | 460 | 412 | 364 | 54-4 | 16×Φ41 | | 380 | 515 | | 250 |
| 350 | 991 | 595 | 525 | 475 | 422 | 60-4 | 16×Φ41 | | 425 | 55 | | 330 |
| 400 | 1092 | 670 | 585 | 525 | 474 | 66-4 | 16×Φ48 | | 498 | 615 | | 400 |
Advantage of Hebei Shanghan
| 1,Professional in Standard series Valves |
| 2,Free sample |
| 3,Factory quality certificate ISO9001 & 14001 |
| 4, We are factory for the Russian standard flanged pn16 stem gate valve, casting, machining, painting, delivery process are completed. |
| 5,OEM service is accepted, Customer's logo or label accepted |
| 6,Delivery on time once we accept your order |
| 7,CNC lathe in the workshop with 8 machining assembly line |
| 8,Resin and coated sand casting technology owned by ourselves |
| 9, We have the IF electric furnace support the casting parts for the russian standard stem gate valve. |
| 10, Heat treatment equipment to ensure the valve quality, must will no any deformation on valve body. |
| 11,Twice strict water pressure test and air pressure test before the valve been put in storage and before delivery |
| 12, Middle and high class products to support the customers' different requirement. (light and pound grade) |
| 13,Packing & transporation changed according to your request |
| 14,Produce the products according to your drawings that will be most satisfy you |
