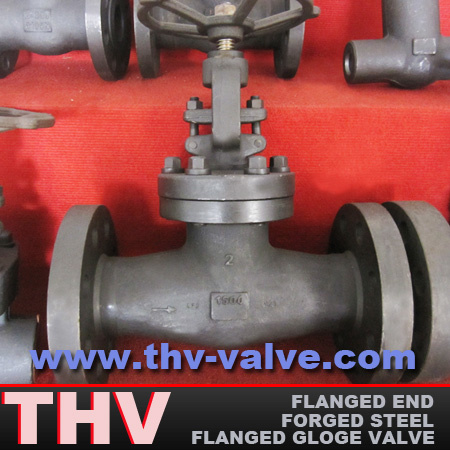

Forged steel LF2 integral flanged globe valve.
Construction is as follows:
Design conform to API 602
Testing according to API 598
Face to Face according to ANSI B16.10
Flanges according to ANSI B16.5
Socket end conform to ANSI B16.11.
Thread end conform to ANSI B1.20.1.
Butt-welded end conform to ANSI B16.25.
Marked as per MSS SP-25.
Full Port or Standard Port
Outside Screw and Yoke (OS&Y)
Integral flanged globe type.
Size: From 1/2 inch to 2 inch
Rating: From Class 150 to Class 2500
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.
Bellow Materials: Stainless Steel, Inconel, Hastelloy, C276, Monel, etc.
Forged steel gate, globe, check valves and strainers from THV FORGE have been satisfying the needs of petroleum refineries, chemical processing plants, power generating plants and other processing facilities throughout the world. Please send your enquiries or leave your messages to our SKYPE or MSN for asking further technical support.
NO.
|
Part Name
|
CS to ASTM
|
AS to ASTM
|
SS to ASTM
|
Type A105
|
Type F22
|
Type F304(L)
|
Type F316(L)
|
1
|
Body
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
2
|
Gasket
|
Corrugated SS + graphite
|
SS + PTFE
|
3
|
Bonnet Bolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
4
|
Pin
|
A276 420
|
A276 304
|
5
|
Gland
|
A276 410
|
A182 F304(L)
|
A182 F316(L)
|
6
|
Gland Eyebolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
7
|
Gland Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
8
|
Yoke Nut
|
A276 410
|
9
|
H.W.Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
10
|
Nameplate
|
SS
|
11
|
Handwheel
|
A197
|
12
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
13
|
Stem Packing
|
Flexible Graphite
|
PTFE
|
14
|
Bonnet
|
A105
|
A276 304
|
A182 F304(L)
|
A182 F316(L)
|
15
|
Stem
|
A182 F6
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
16
|
Disc
|
A276 420
|
A276 304
|
A276 304(L)
|
A273 316(L)
|
Suitable Medium
|
W.O.G.etc
|
W.O.G.etc
|
HNO3,CH3OOH etc
|
Suitable Temperature
|
-29~425
|
-29~550
|
-29~180
|
