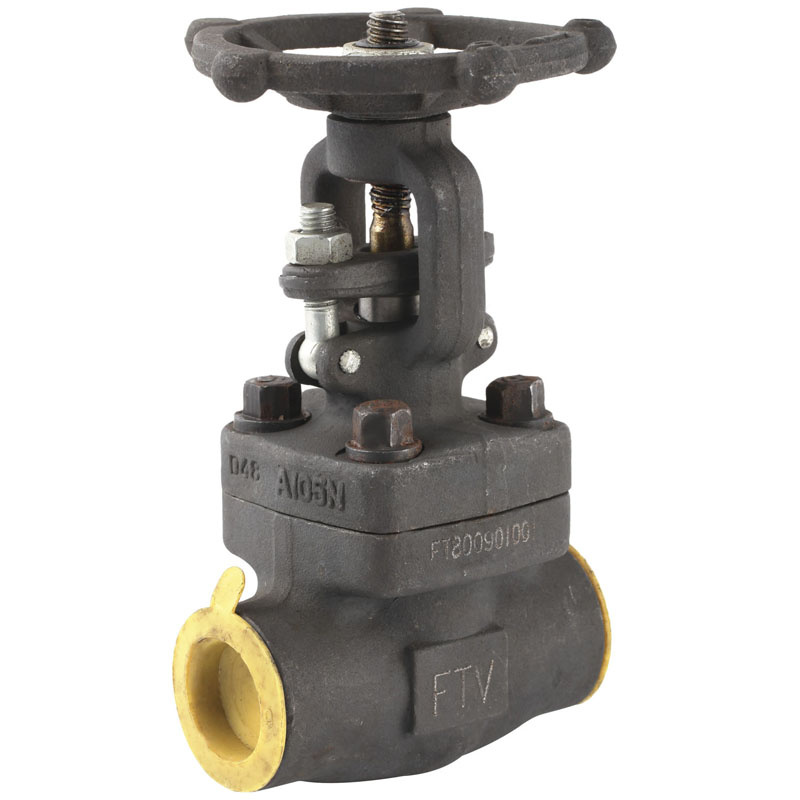

Forged Steel Screwed or Sw Gate Valve
| Price: |
US $ 10-1000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T,D/P |
Screwed and SW Forged Steel Gate ValvesStandard compliance:
1) Design and manufacture: API602, BS5352
2) Test and inspection: API598
3) Socket weld end: ANSI B16.11
4) Screwed end: ANSI B1.20.1
Specifications:
1) Size: 1/4" to 2"
2) Class: 150LB to 2500LB
3) Type: Forged Steel gate valves, ball valves, globe valves, swing check valves, lift check valve etc. Bolted bonneted or welded bonnet, reducer bore or full bore, Screwed end or SW end.
4) Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, F5, F9, MONEL, ALLOY 20 etc
5) Operation: Handwheel.Class 800 / 1500 / 2500Bolted bonnet or welded bonnet, Outside screw & yoke, Reduced port or full portDescription:Design and manufacture: API 602 & ANSI B16.34Socket weld end: ANSI B16.11Screwed end: ANSI B1.20.1Test and inspection: API 598Size: 1/4" ~ 3"Standard materials: A105, LF2, F5, F11, F22,F304, F304L, F316, F316L etc.Standard materials of parts| No. | Parts | Materials |
| 1 | Body | A105 |
| 2 | Bonnet | A105 |
| 3 | Stem | A276-410 |
| 4 | Disc | A276-420 |
| 5 | Seat ring | A276-410 + STL |
| 6 | Bonnet bolt | A193-B7 |
| 7 | Gasket | 304 + Graphite |
| 8 | Gland | A276-410 |
| 9 | Packing | Graphite |
| 10 | Gland flange | WCB |
| 11 | Gland bolt | A276-410 |
| 12 | Gland bolt nut | A194-2H |
| 13 | Gland bolt pin | A276-410 |
| 14 | Sleeve | A276-410 |
| 15 | Sleeve washer | A276-410 |
| 16 | Handwheel | A197 |
| 17 | Nameplate | Aluminum |
| 18 | Handwheel nut | A108-1020 |
Dimensions (in mm & inch) and weight Class 800| ND | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) | 65(2.1/2) | 80(3) |
| Dia. | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
|
| d | mm | 7 | 7 | 10 | 13.6 | 18 | 24 | 29 | 36.8 | 46.5 | 51 |
| L | mm | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 | 185 |
| H (Open) | mm | 166 | 166 | 166 | 169 | 193 | 230 | 246 | 283 | 330 | 359 |
| W | mm | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | 200 |
| Wt | B.B. | Kgs | 2.3 | 2.2 | 2.1 | 2.3 | 4 | 5.9 | 6.9 | 11.2 | 15.8 | 20 |
| W.B. | Kgs | 1.9 | 1.8 | 1.7 | 2.1 | 3.7 | 5.2 | 6.2 | 10.4 | 14.8 |
|
Class 1500| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) |
| d | mm | 7 | 7 | 13.6 | 13.6 | 18 | 24 | 29 | 36.8 |
| L | mm | 111 | 111 | 111 | 111 | 114 | 120 | 140 | 162 |
| H (Open) | mm | 197 | 197 | 197 | 197 | 224 | 237 | 276 | 320 |
| W | mm | 125 | 125 | 125 | 125 | 160 | 160 | 180 | 180 |
| Weight | B.B. | Kgs | 4.8 | 4.7 | 4.6 | 4.6 | 6.3 | 8.7 | 12.1 | 17.2 |
| W.B. | Kgs | 4.1 | 4 | 3.9 | 3.9 | 5.8 | 7.8 | 11.2 | 16 |
Class 2500| Nominal diameter | mm(in) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| d | mm | 13.6 | 13.6 | 18 | 25 | 29 | 36.8 |
| L | mm | 114 | 114 | 140 | 162 | 162 | 200 |
| H (Open) | mm | 218 | 218 | 259 | 320 | 320 | 350 |
| W | mm | 125 | 125 | 160 | 180 | 180 | 200 |
| Weight | Kgs | 7 | 7 | 14 | 23 | 22.5 | 28 |
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B.Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
| Prod Model: |
FORGED STEEL NPT/SW GATE VALVE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4" to 2" |
| Working Pressure: |
150lb to 2500lb |
| Ending Type: |
Fnpt,Sw |
| Design Standard: |
API602 |
| Body Material: |
Forged Carbon Steel,Stainles Steel,Alloy Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Water Industrial Usage |
| Material: |
Forged Steel |
| Connection Form: |
Threaded or Sw or Bw or Flanged |
