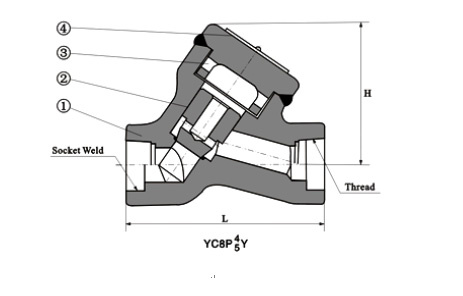

Standard Material Specification
NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Seat A276 410 A276 304 A276 304(L) A276 316(L)
3 Swing Disc A276 420 A276 304 A276 304(L) A276 316(L)
4 Nut A194 2H A194 4 A194 8 A194 8M
5 Hinge A105 A182 F22 A182 F304L A182 F316(L)
6 Gasket Corrugated SS+Graphite SS+PTFE
7 Bonnet A105 A182 F22 A182 F304L A182 F316(L)
8 Bolt A193 B7 A193 B16 A193 B8M A193 B8M
9 Pin A276 420 A182 F304 A182 F316
Suitable Medium W.O.G.etc W.O.G.etc HNO 3 ,CH 3 OOH etc
Suitable Timperature -29ºC~425ºC -29ºC~550ºC -29ºC~180ºC
Note:Other materials are available upon request.
CS=Carbon Steel;AS=Alloy Steel;SS=Stainless Steel;
