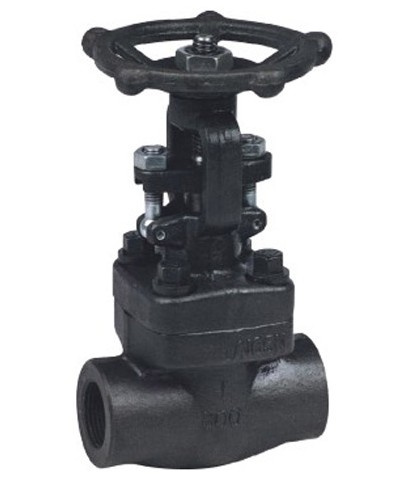

Forged Steel Thread Gate Valve (Z11H-800LB)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Lixin Valve Group Yongjia Tianbang Valve Co., Ltd.

Showroom Product Company Profile

Forged steel gate valves' pressure is often neglected. If the pressure is too low, the sealing or the safety valve will fail to work. If the pressure is too high, grease inlet valve will be blocked, lipids in the sealing will harden, and the sealing ring with valve ball and plate will be locked. 1\Design and manufacture conform to: API602\BS5352\ANSI B16.34; 2\Connection ends conform to: 3\Test and inspection conform to: API598, GB/T13927, JB/T9092 4\Structure features: A threaded and pressure seal bonnet; 5\Material conform to ANSI/ASTM 6\Main materials: A105; LF2; F5; F11; F22; 304(L); 316(L); F347; F321; F91; Monel; Alloy. (1)Socket welded dimension conform to ANSI B16.11, JB/T1751 (2)Screw ends dimension conform to ANSI B1.20.1, JB/T7306 (3)Butt-welded conform to ANSI B16.25, JB/T12224 (4)Flanged ends conform to ANSI B16.5, JB79

PART NAME	CStoASTM	AStoASTM	SStoASTM
	A105	F22	F304L	F316L
BODY	A105	A182 F22	A182F 304L	A182 F316L
SEAT	A276 420	A276 304	A276 304L	A276 316L
WEDGE	A182F 430&410	A182 F304	A182F 304L	A182 F316L
STEM	A182 F6	A182 F304	A182F 304L	A182 F316L
GASKET	316 WITH GRAPHITE		316 WITH PTFE
BONNET	A105	A276 F304	A276F 304L	A276 F316L
BOLT	A193 B7	A193 B16	A193 B8	A193 B8M
PIN	A276420		A276 304
GLAND	A276410		A182F 304L	A182F F316L
GLAND EYEBOLT	A193 B7	A193 B16	A193 B8	A193 B8M
GLAND FLANGE	A105	A182 F11	A182F 304L	A182F 316L
NUT	A194 2H	A194 4	A194 8	A194 8M
STEM NUT	A276 420
LOCKING NUT	A194 2H	A194 4	A194 8	A194 8M
NAME PLATE	SS
HANDWHEEL	A197
GASKET	A473431
PACKING	GRAPHIT		PTFE

Prod Model:	Z11H-800LB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	3/8"--2"
Structure:	Through Way Globe Valve
Stem Thread Position:	Outside Screw Stem Globe Valve
Sealing Form:	Gland Packings Globe Valve
Standard:	BSW
Application:	Forged Steel Globe Valve
