1\Design and manufacture conform to: API602\BS5352\ANSI B16.34;
2\Connection ends conform to: API602\BS5352\ANSI B16.34;
3\Test and inspection conform to: API598, GB/T13927, JB/T9092

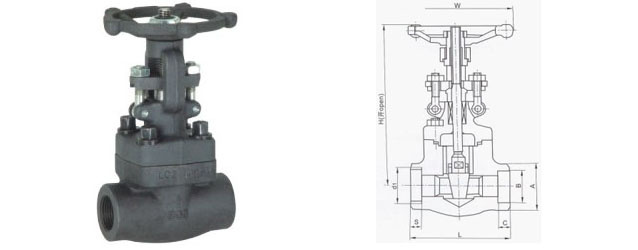

4\Structure features: A threaded and pressure seal bonnet;
5\Material conform to ANSI/ASTM
6\Main materials: A105; LF2; F5; F11; F22; 304(L); 316(L); F347; F321; F91; Monel; Alloy.
(1)Socket welded dimension conform to ANSI B16.11, JB/T1751
(2)Screw ends dimension conform to ANSI B1.20.1, JB/T7306
(3)Butt-welded conform to ANSI B16.25, JB/T12224
(4)Flanged ends conform to ANSI B16.5, JB79
Pressure: 150lb--1500lb
Reduced or Full port
Construction: B. B & W. B; OS & Y
Gasket: Stainless steel+graphite
Socket welding & threaded ends
Material for hard trim is depended upon client requirement & oprating condition
Design & Manufacture: API 602 & ANSI B 16.34
Socket welding dimension: ANSI B 16.11 & JB/T 175-95
Screw dimension: ANSI B1.20.1 & GB7306-87
Inspection and Test: API 598
Body Material: A105, LF2, F5, F11, F22, F304, F304L, F316, F316L
Our factory, Gao Dong Valve Co., Ltd is located in Oubei Town Of Wenzhou City, Zhejiang Province, which is known as the homeland of China pump and Valves. Our company is a professional valve manufacturer, specialized in design, research, manufacturing and distribution. Our company has passed the certificates of ISO 9001, ISO 14001, ISO 18001 international quality management system smoothly, and already got the certificate of API6D, CE and TS. The main products include: Gate Valve, Globe Valve, Check Valve, Ball Valve, Low Temperature Valve, Bellows Valve and Marine Valve. Company even manufactures forged steel valve, cast steel American standard valve, flat gate valve, stainless steel valve, etc.
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
