Forged Steel Trunnion Ball Valve (Q47N)

Forged Steel Trunnion Ball Valve (Q47N)
Price: US $ 10-175/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T

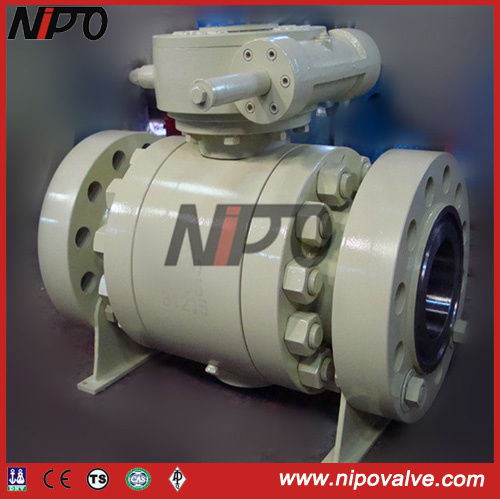

Forged Steel Trunnion Ball Valve

Two Pieces/Three PiecesForged Steel Body
Trunnion Mounted Ball, Full&Reduced Bore
Anti-static Device
Blow-out Proof Stem
Doouble Block and Bleed
Fire Safe Design
Emergency Sealant Injector
Vent Valve, Drain Valve
Lifting lugs and supporting feets(8" & larger)


Design: ASME B16.34/API 6D
Face to Face: ASME B16.10/API 6D
End Flange: ASME B 16.5
BW End: ASME B16.25
Test: API 6D
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75

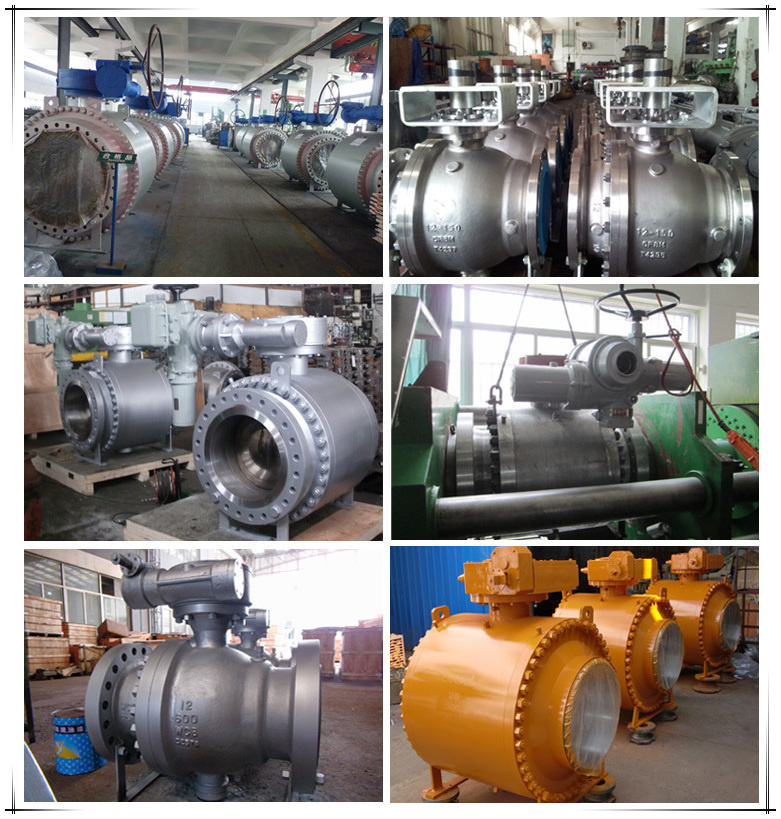

PRODUCTS

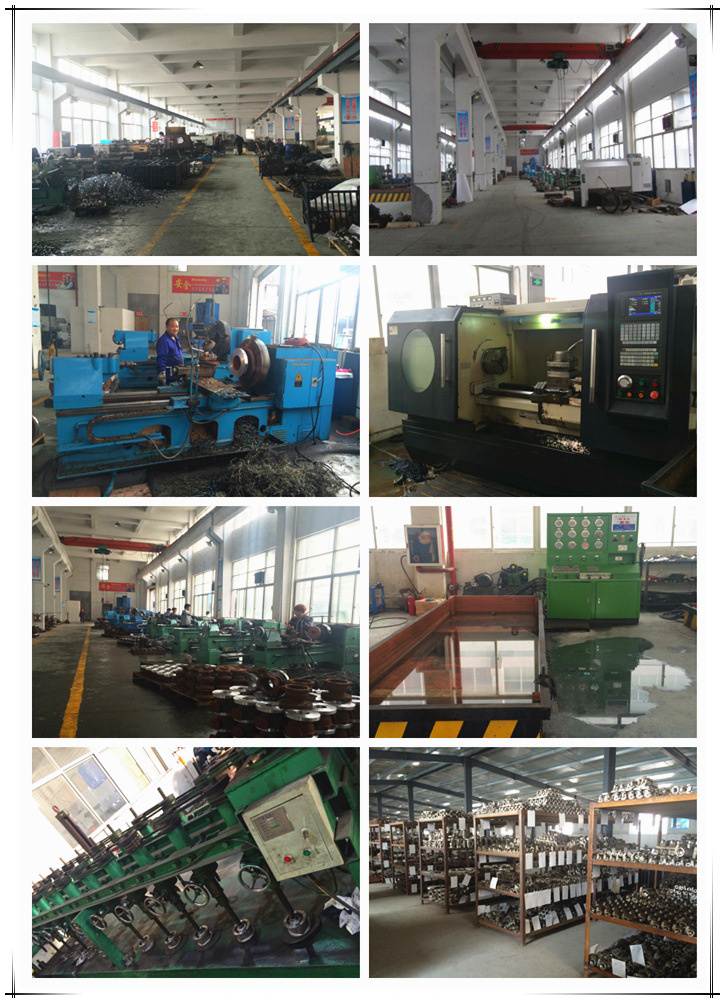

WORKSHOP

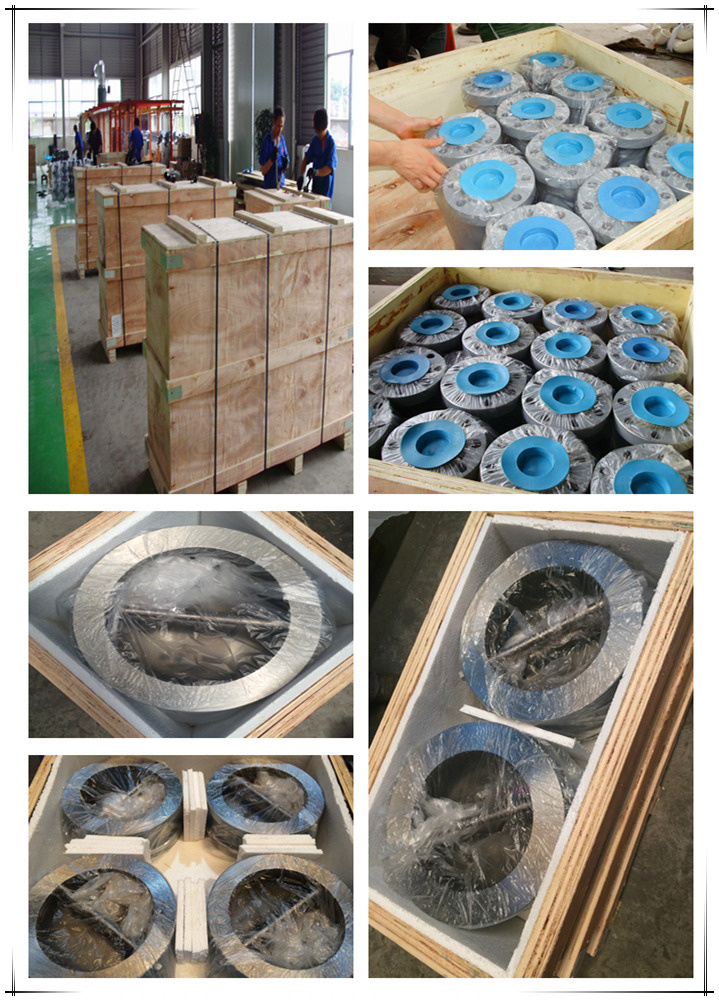

PACKING

We welcome all the world customers to contact us for more cooperation.

With our years of technical knowledge and experience,we assure you,

Naibang will be one of your best parters in China.


Any interest,please do not hesitate to contact us.


NO.PartMaterial
1BonnetASTM A105+ENP  A182-F304,F316,F316L,F6,F51
2Seat SpringInconel X-7505  SS304  SS316
3SeatPTFE  RPTFE  PEEK  PPL
4Seat Injection1020+ZN  A182-F304,F316,F316L
5BodyASTM A105  A182-F304,F316,F316L,F304L,F51
6ScrewASTM A193-B7,B8
7Top FlangeASTM A105  A182-F304
8O-ringNBR Vtion
9Key1045  A182-F304,F316,F316L,F304L
10StemA105+ENP  A182-F6,F304,F316,F316L,F304L,17-4PH,F51
11Vent Valve1020+ZN  A182-F304,F316,F316L
12Stem Injection1020+ZN  A182-F304,F316,F316L
13Sliding BearingStainless Steel+PTFE  SS316+PTFE
14Thrust WasherPTFE
15Seat RingA105+ENP  A182-F6,F304,F316,F316L,F304L,F6,F51
16StudASTM 193-B7,B7M,B8,B8M
17NutASTM 194-2H,2HM,8,8M
18Body GasketPTFE SS304+Graphite  SS316+Graphite
19BallA105+ENP  ASTMA182-F6,F304,F316,F316L,F51
20Lower GasketPTFE
21Drain Valve1020+ZN  A182-F304,F316,F316L
22Antistatic SpringStainless Steel SS316
23TrunnionA105+ENP  ASTMA182-F6,F304,F316,F316L,F51
24Seat SealingGraphite
25Gand GasketSS304+Graphite
26Bottom Cover GasketSS304+Graphite

Prod Model: Q47N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2" to 40"
Class: 150lb to 2500lb
Certificates: API 6D, CE, ISO9001
Application Fields: Metallurgy,Light Industrial,Electric Power,Petroch
Delivery Detail: 20~45 Days According to The Specific Quantities
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Water Industrial Usage
Material: Carbon Steel
Nominal Pressure: 150lb to 2500lb
Zhejiang NaiBang Valve Co., Ltd. is a specialized company devoted into manufacture and sales of valves, the company situates in ou-bei town-the center of China's pumps & valves, with ground area 18800m2, machine workshop, assemble workshop and synthetic finished half - finished warehouse. The company possesses 210 precise equipments, the advanced numeral control machines ensure the flexibility and exchangeability of all the product parts. The company flourishes year by year, and its products have been widely used in lines of domestic large PowerStation configuration, dirty water processing, urban construction, petroleum-chemical, oil extraction, metallurgy, chemical fertilizer, paper production and pharmacy, exported to many countries and regions, gains the users' unanimous praise and confidence.

The company has a modernized staffs of tech research and product development, ISO9001 certificated. And now the company has the capability of manufacturing big series of high temperature and hi-gh pressure power station gate valve, ball valve, globe valve, check valve, butterfly valve, with the strength of API valve, Wafer check valve and forged valve, and the wafer check valve mainly cover wafer single disc lift and swing check valves and wafer double disc swing check valves (H77, H76, H74, H72, H71, H46 and H44). Diameter of valves varies from DN15 to DN2000(1/2'-72' ), working pressure varies from PN1.6MPa to 42 MPa(150lb to 2500lb), and working temperature from -196 Celsius degree to +570 Celsius degree; The main body adopts WCB, WC6, WC9, Cr5Mo, 20Crmo, 12Crmov, 15Crmov, CF3m, CF8m. The company possesses full precise casting equipments, integrated physical and chemical gauges, experimentation equipments and test methods, as well CAD design capability, which ensure products always in high quality.
