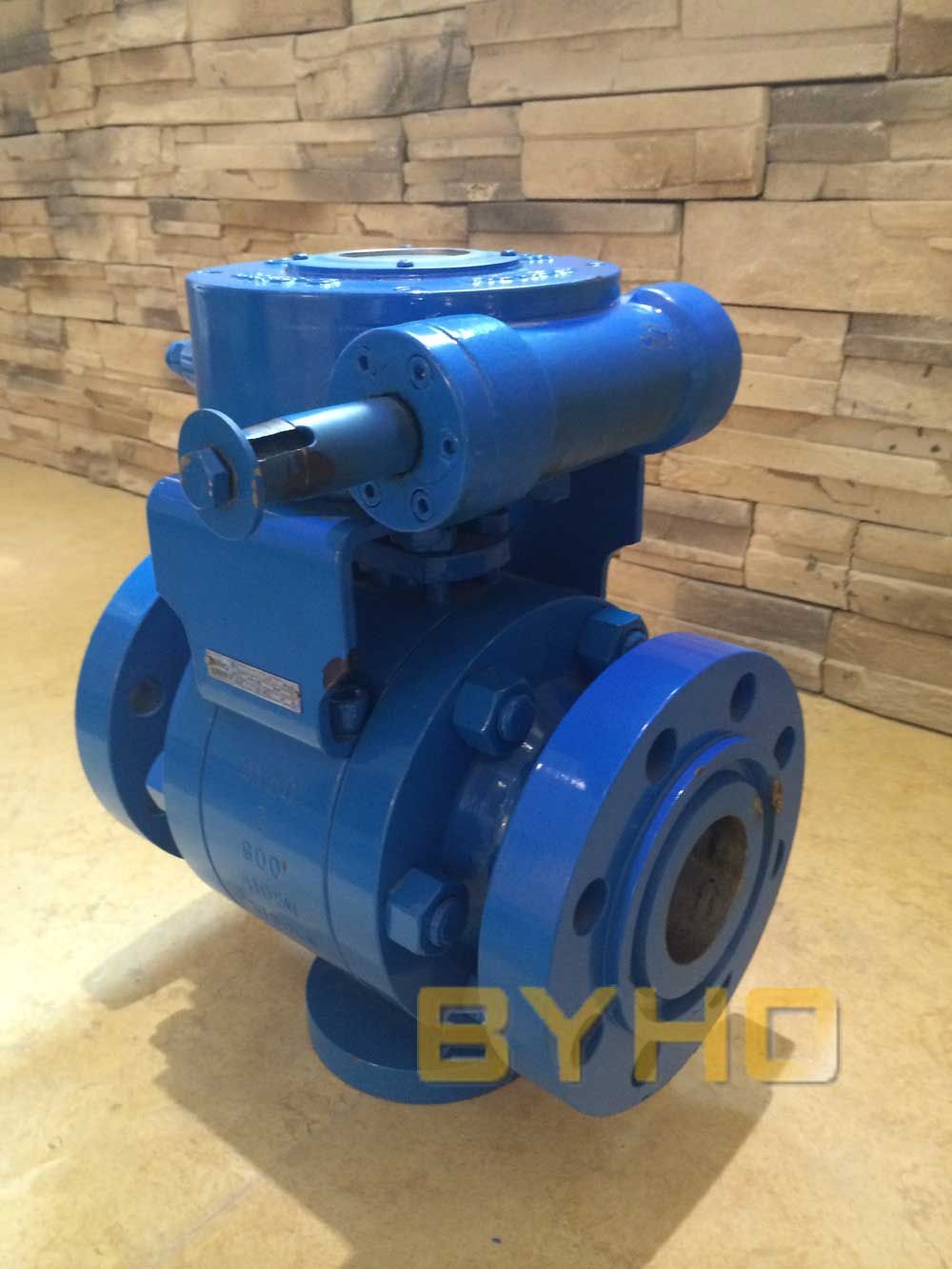

Forged Steel Trunnion Metal Seated Ball Valve

Forged Steel Trunnion Metal Seated Ball Valve
Price: US $ 65/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

Bolted cover or welded cover,three-piece Body,trunnion Ball

Full or Reduced bore,Blowout Proof Stem

Fire safe and Anti static

Dual seat with injection and drain & outlet

ASTM A105N,A182 F304,A182 F316,A182 F304L,A182 F316L



Standards compliance



Design and manufacture: ANSI B16.34,API 608,API 6D,BS5351

Face to face dimensions: ANSI B16.10,API 6D

Flanged connection: ANSI B16.5

Butt welded: ANSI B16.25

Fie-safe: API 607~API 6FA

Test and inspection: API 598,API6D



Standard material specifications
Part name
Material
Body
A105
A182 F304
A182 F316
A182 F304L
A182 F316L
Body cap
A105
A182 F304
A182 F316
A182 F304L
A182 F316L
Ball
A105+Nip
A182 F304
A182 F316
A182 F304L
A182 F316L
Stem
A105+Nip
A182 F304
A182 F316
A182 F304L
A182 F316L
Seat
A105+Nip
A182 F304
A182 F316
A182 F304L
A182 F316L
Seat ring
PTFE/RPTFE/NYLON
Fixed turnnion
A105+Nip
A182 F304
A182 F316
A182 F304L
A182 F316L
O-ring
VITON
VITON
VITON
VITON
VITON
Contact spring
17-7PH/In conel
In conel
In conel
In conel
In conel
Cover bolt
A193 B7
A193 B8
A193 B8M
A193 B8M
A193 B8M
Cover nut
A194 2H
A194 8
A194 8M
A194 8M
A194 8M
Bearing
SF-1
SF-1
SF-1
SF-1
SF-1



CLASS 150~1500 FORGED STEEL FIXED BALL VALVE



Dimensions & weights
Class 150
Size
inch
2
3
4
6
8
10
12
14
16
18
20
L(RTJ)
mm
178
203
229
394
457
533
610
686
762
864
914
H
mm
153
195
213
500
568
605
662
725
770
970
935
H1
mm
139
178
191
220
289
318
382
430
470
489
528
L0
mm
400
600
850
400*
400*
400*
400*
800*
800*
600*
500*
Weight
mm
30
50
90
203
289
450
588
676
864
764
911



Dimensions & weights
Class 300
Size
inch
2
3
4
6
8
10
12
14
16
18
20
L
mm
216
283
305
403
502
568
648
762
838
914
911
L(RTJ)
mm
232
299
321
419
518
584
664
778
854
930
1010
H
mm
153
195
213
500
569
605
662
725
770
970
935
H1
mm
139
178
191
220
289
318
382
430
470
489
528
L0
mm
600
1250
1300
400*
400*
400*
400*
800*
800*
600*
500
Weight
mm
30
50
90
203
289
450
588
676
864
764
911



Dimensions & weights
Class 600
Size
inch
2
3
4
6
8
10
12
14
16
18
20
L
mm
292
356
432
559
660
787
838
889
991
1092
1194
L(RTJ)
mm
295
359
435
562
663
790
841
892
994
1095
1200
H
mm
153
195
213
500
569
645
702
750
815
970
1065
H1
mm
119
145
180
220
289
318
382
430
470
489
561
L0
mm
600
1250
1300
400*
400*
457*
457*
800*
800*
600*
600*
Weight
mm
32
64
122
267
521
773
1118
1700
1970
1218
1646



Dimensions & weights
Class 900
Size
inch
2
3
4
6
8
10
12
14
16
18
20
L
mm
368
381
457
610
737
838
965
1029
1130
1210
1321
L(RTJ)
mm
372
384
460
613
780
841
968
1038
1140
1232
1334
H
mm
162
205
239
591
700
700
820
950
990
1030
1200
H1
mm
119
145
180
213
254
327
368
442
483
523
615
L0
mm
600
1250
1300
450*
600*
750*
750*
600*
600*
600*
600*
Weight
mm
48
78
138
275
547
847
1224
1676
2083
2694
3515



Dimensions & weights
Class 1500
Size
inch
2
3
4
6
8
10
12
14
16
18
20
L
mm
368
470
546
705
832
991
1130
1257
1384
1537
1664
L(RTJ)
mm
372
473
549
711
841
1000
1146
1276
1407
1559
1686
H
mm
197
254
291
655
660
735
860
950
1065
1235
1275
H1
mm
119
145
180
213
278
384
440
442
483
576
615
L0
mm
600
1250
1300
760*
450*
450*
660*
600*
750*
750*
750*
Weight
mm
55
97
162
328
668
936
1408
1861
2392
3220
4491











Prod Model: Q47F, Q347F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design And Manufacture: API 608,API 6D,BS5351
Face To Face: ANSI B16.10,API 6D
Flanged End: ANSI B16.5
Fire-Safe: API 607,API 6fa
Test And Inspection: API 598, API 6D
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Household Usage
Material: A105,F304,F316,F321,F51
Zhejiang BYHO Valve Co., Ltd. is located in Ou Bei Twon of Wenzhou City, China known as China Pump & Valve country. Our company has advanced manufacturing equipment such as CNC center, large-scale vertical lathe, borer as well as professional testing equipment.

Our company professionally produce gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves and strainers in accordance with the standards like API 6D, API 600, API 602, API 607 DIN, and so on. Such special materials as WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CN7M, F51, F11, F22, F51 or F53 can be selected according to customers' requirements.

Our company focus on informational construction, and consider everything from the angel of customers and work on information collection and resource share issues. Our company adopts leading management software to monitor the whole course of production and sales part and informs customers of product information and production schedule that customers mostly concerned about so that customer can get to know production schedule of the order.

Our company always put our attention on the development of the valve industry and take the lead to maintain the trace and pursuit of the latest technology in this industry and play an important role in the industry information promoter and technology service disseminator.
