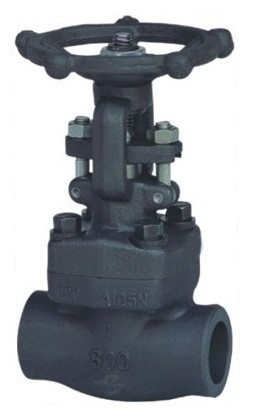

Size: 1/2"(DN15)-2"(DN50mm)
Pressure: Class150-class1500
End connection: SW, FNPT, BW
Material: A105, F304, F304L, F316, F316L, F11, F22, F5, F9, LF2, F347, F321, F51, F91, Monel etc.
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Seat Ring |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Wedge |
A276 430& 410 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
Gasket |
Corrugated SS+graphite |
SS+PTFE |
|
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
7 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
8 |
Pin |
A276 420 |
A182 F304 |
|
9 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
|
10 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
11 |
Gland Flange |
A105 |
A182 F11 |
A182 F304(L) |
A182 F316(L) |
|
12 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
13 |
Yoke Nut |
A276 420 |
|
14 |
H. W. Lock Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
Nameplate |
SS |
|
16 |
Handwheel |
A197 |
|
17 |
Bearing Gasket |
A473 431 |
|
18 |
Stem Packing |
Flexible Graphite |
PTFE |
|
Suitable Medium |
W. O. G. etc |
W. O. G. etc |
HNO3, CH2OOH etc |
|
Suitable Temperature |
-29~425 |
-29~550 |
-29~180 |
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg) 800Lb
|
NPS |
Conv. |
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
|
Full |
|
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
L |
79 |
79 |
92 |
111 |
120 |
120 |
140 |
178 |
|
H(OPEN) |
158 |
158 |
169 |
197 |
236 |
246 |
283 |
330 |
|
W |
100 |
100 |
100 |
125 |
160 |
160 |
180 |
200 |
|
Weights |
Bolted |
2.1 |
2.0 |
2.3 |
4.3 |
5.9 |
6.9 |
11.1 |
15.2 |
|
Welded |
1.8 |
1.7 |
2.0 |
3.8 |
5.1 |
6.1 |
10.2 |
14.2 |
